No. 11 Test, Ignition & Rpm Signal

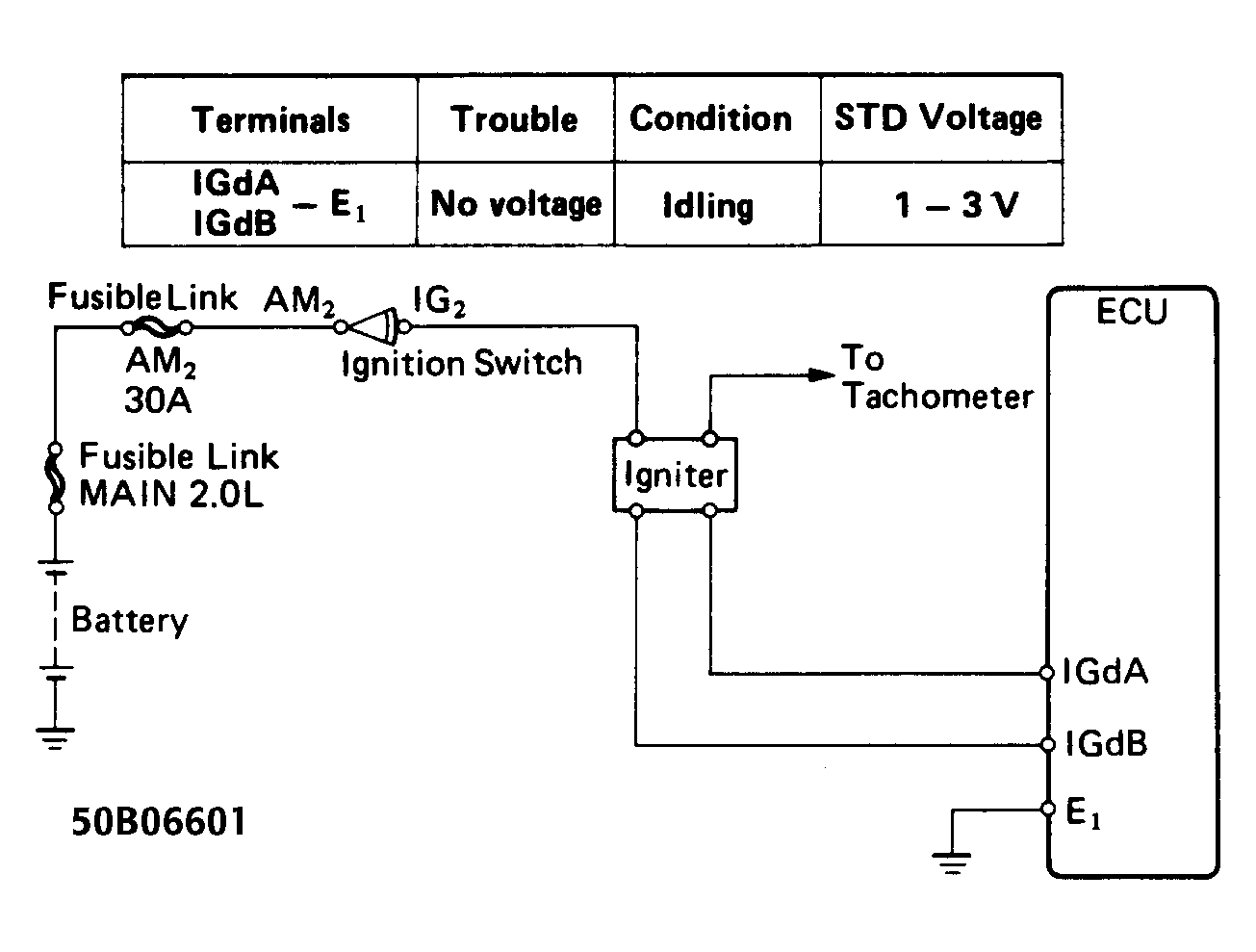

Fig 1: No. 11 Test, Ignition & RPM Signal (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

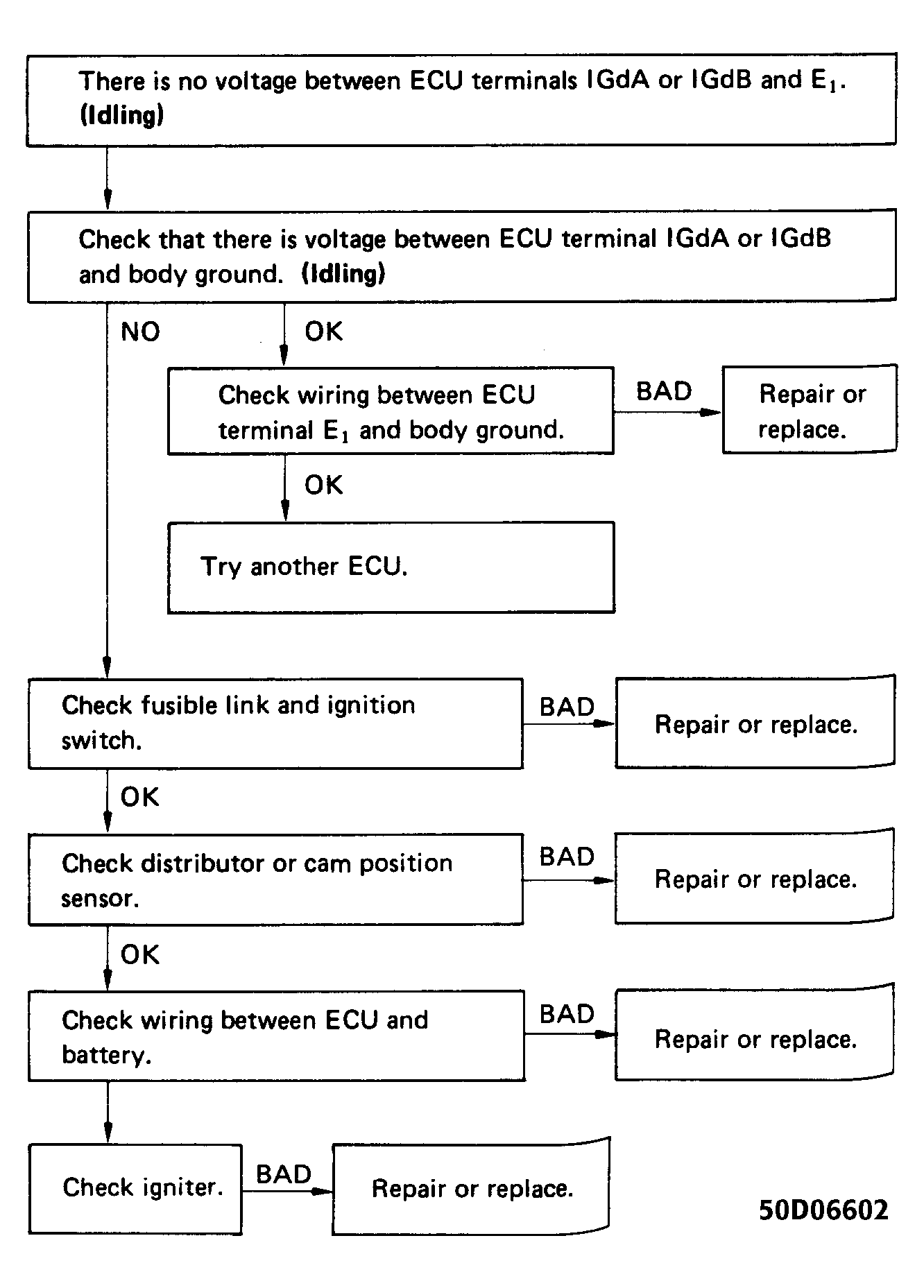

Fig 2: No. 11 Test, Ignition & RPM Signal (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
