No. 13 Test, Check Engine Light Circuit

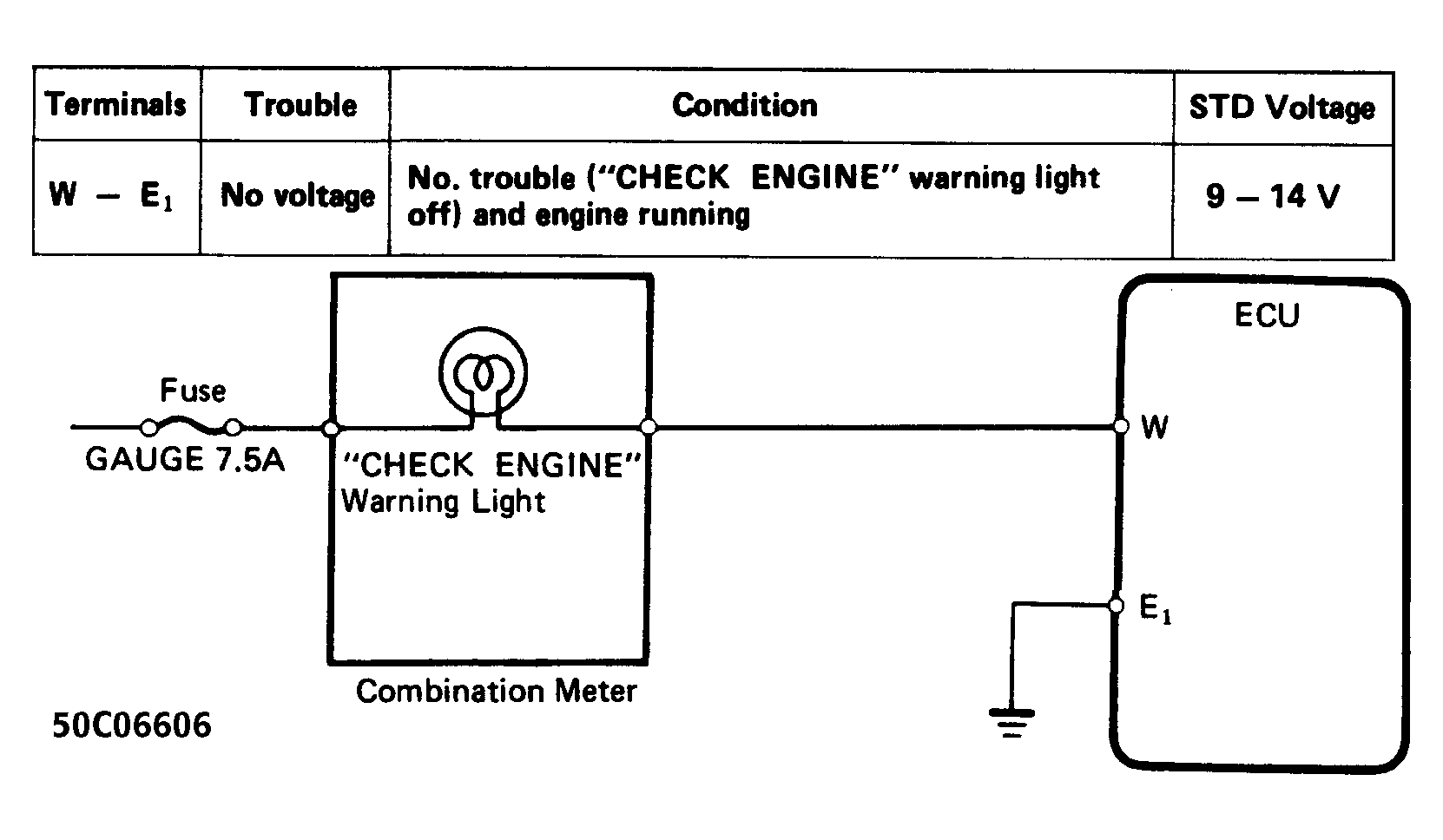

Fig 1: No. 13 Test Schematic, CHECK ENGINE Light Circuit
G50C06606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

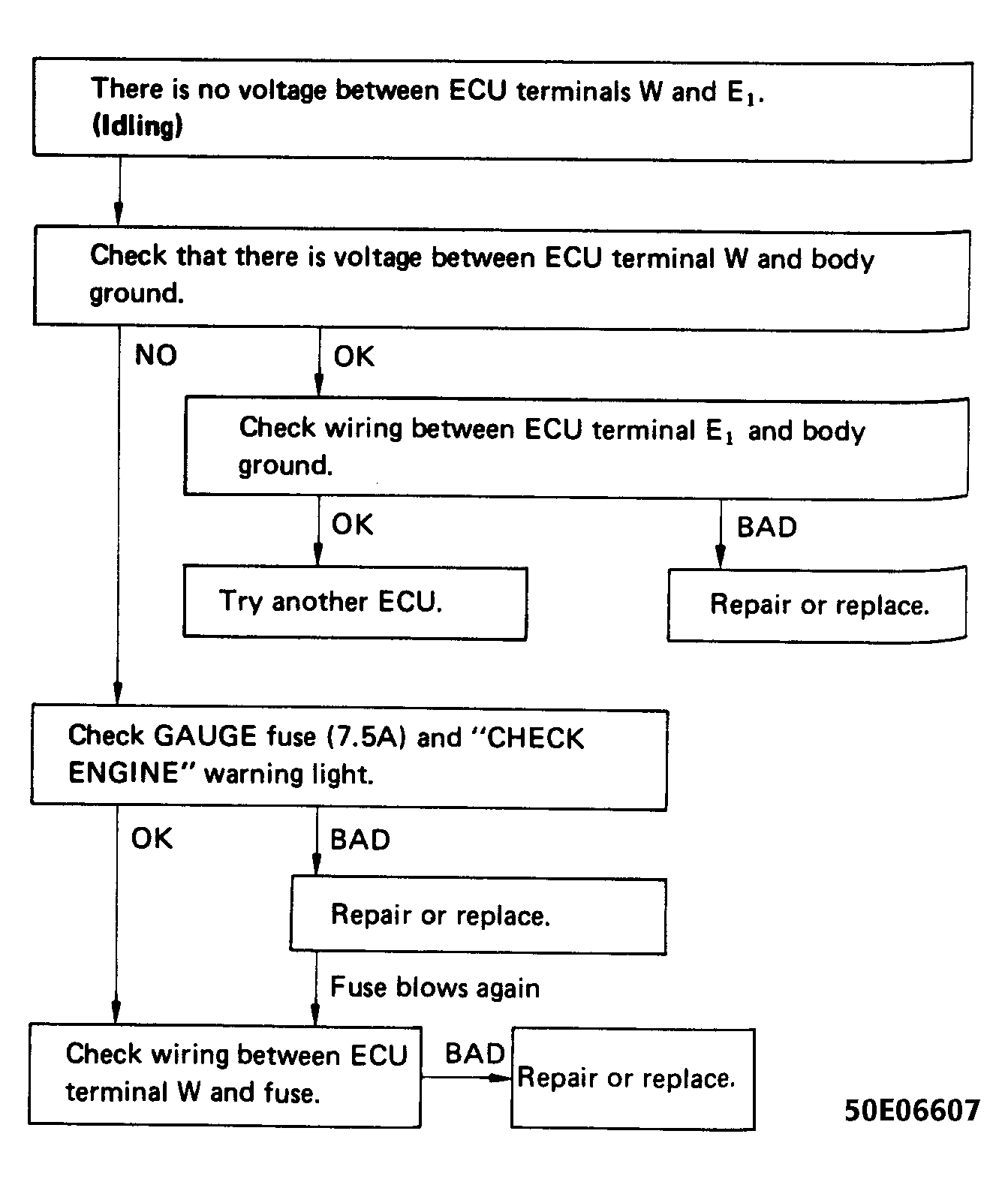

Fig 2: No. 13 Test Flow Chart, CHECK ENGINE Light Circuit
G50E06607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
