No. 14 Test, A/C Switch Signal

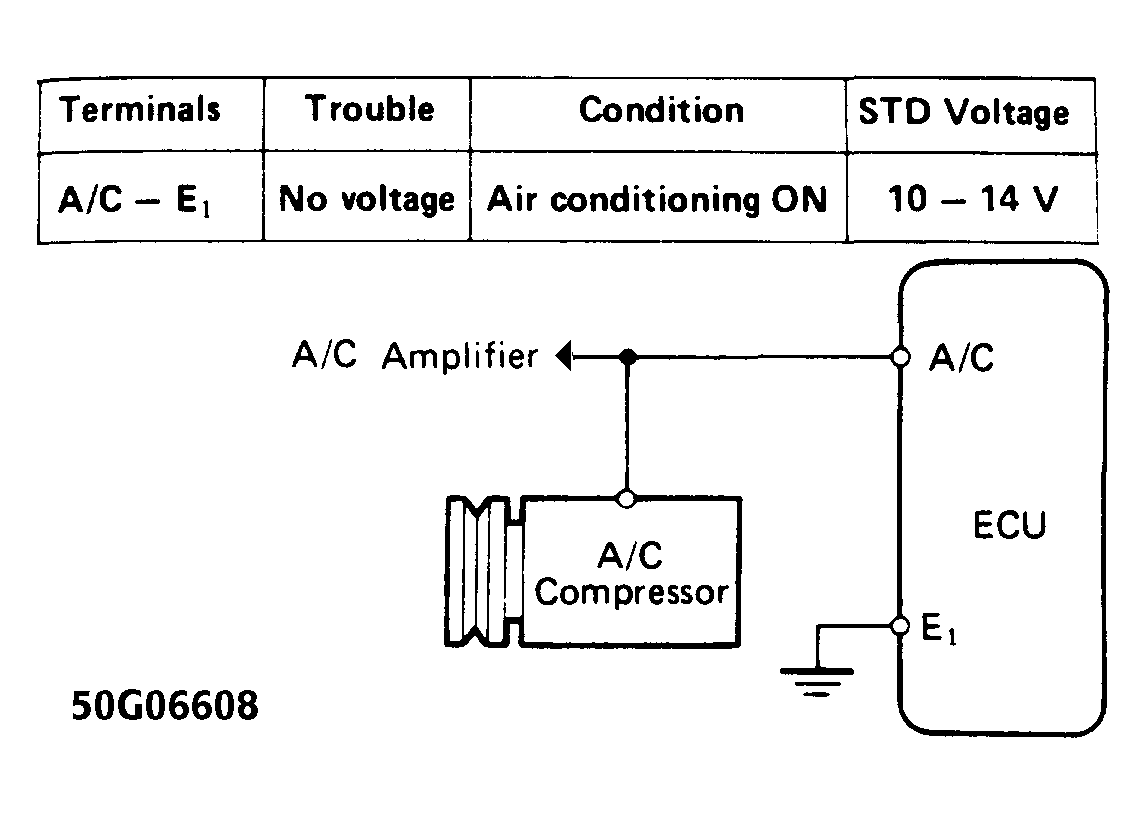

Fig 1: No. 14 Test Schematic, A/C Switch Signal
G50G06608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

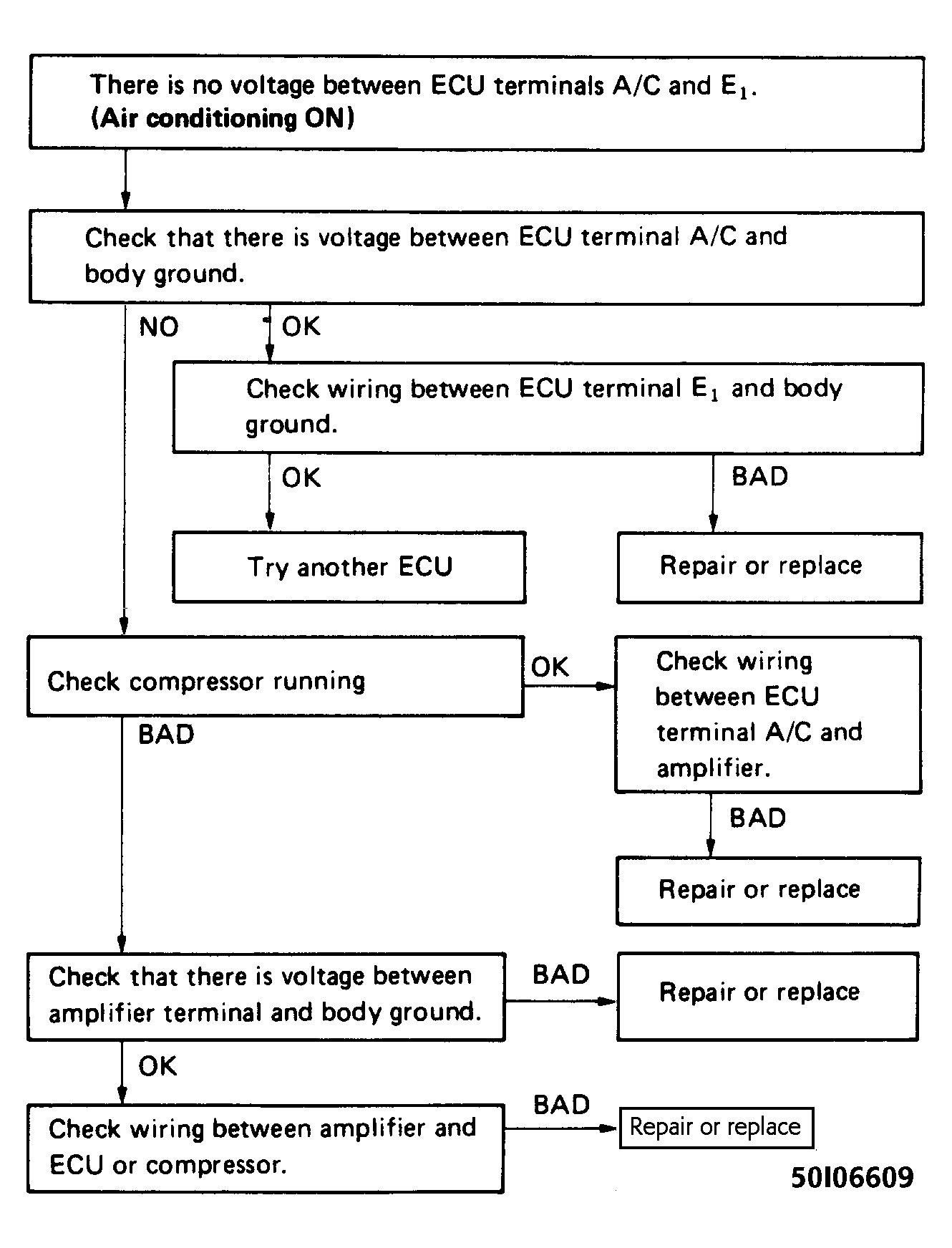

Fig 2: No. 14 Test Flow Chart, A/C Switch Signal
G50I06609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
