Toyota
>>
1988
>>
Supra 7M-GTE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Diagnostic Charts
>>
No. 15 Test, HAC Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No. 15 Test, HAC Sensor

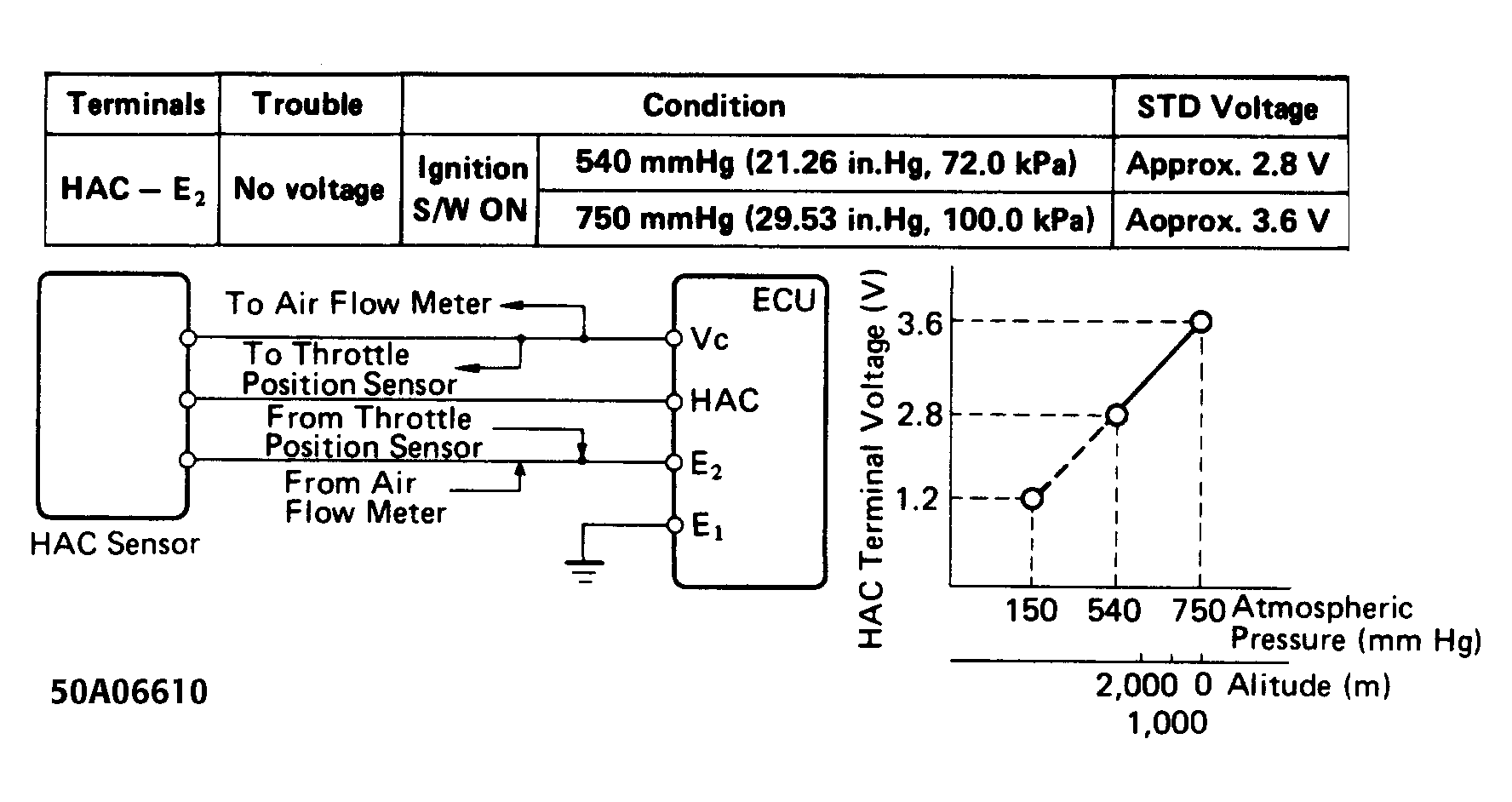

Fig 1: No. 15 Test Schematic, HAC Sensor (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

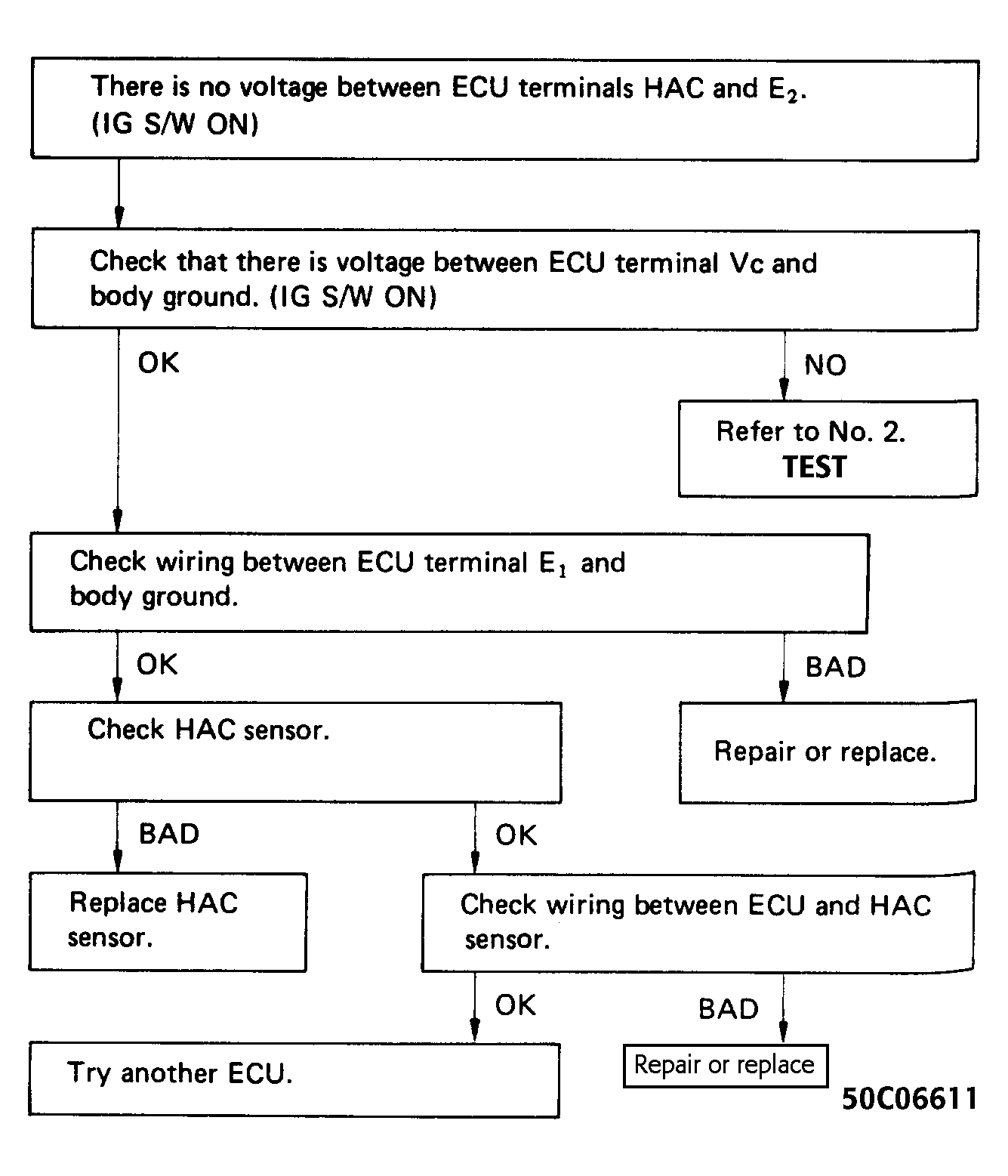

Fig 2: No. 15 Test Flow Chart, HAC Sensor (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: No. 15 Test, HAC Sensor Check (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
