No. 5 Test, Code 31, Airflow Meter Signal

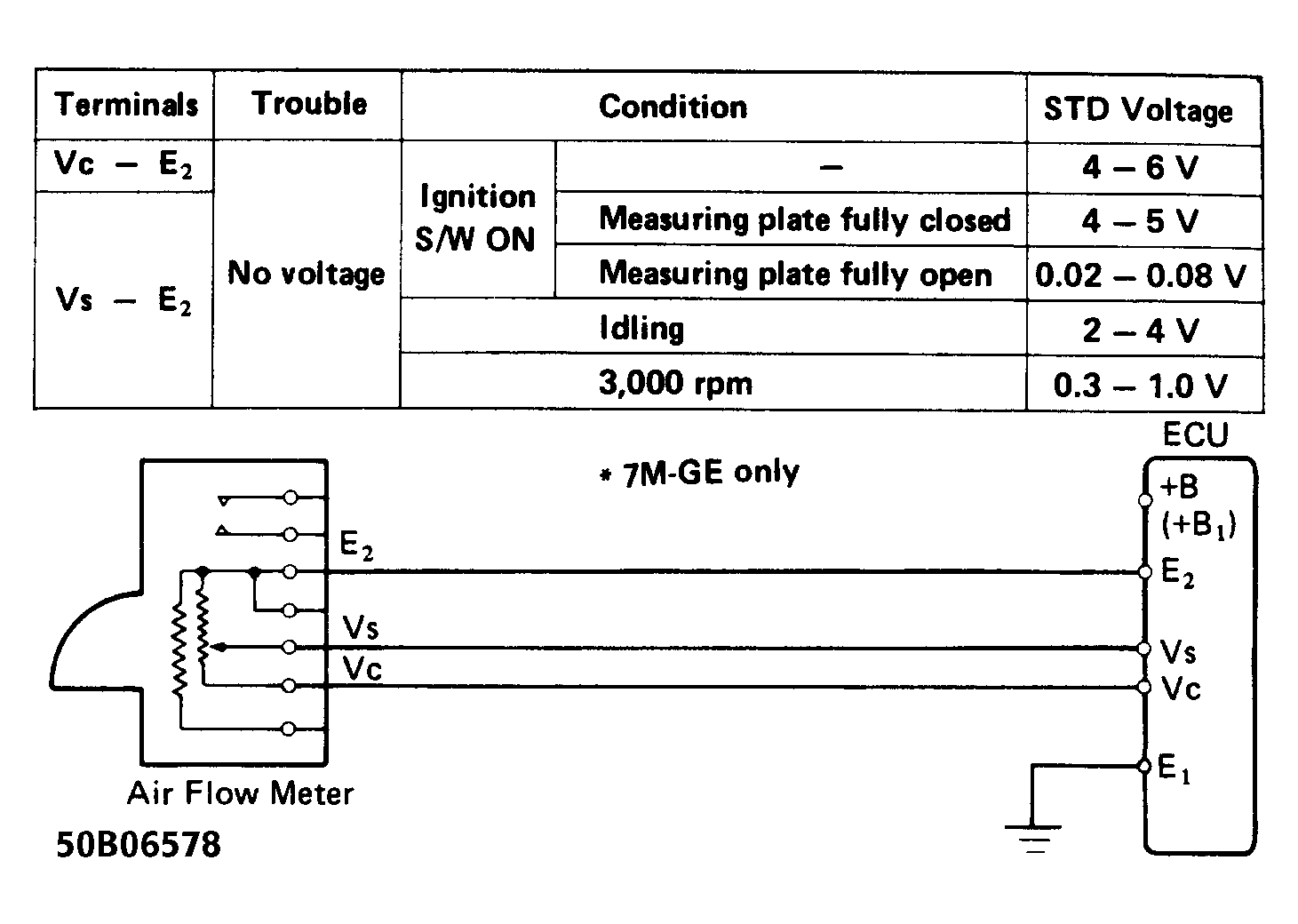

Fig 1: No. 5 Test, Code 31 Schematic, Airflow Meter Signal (Non Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

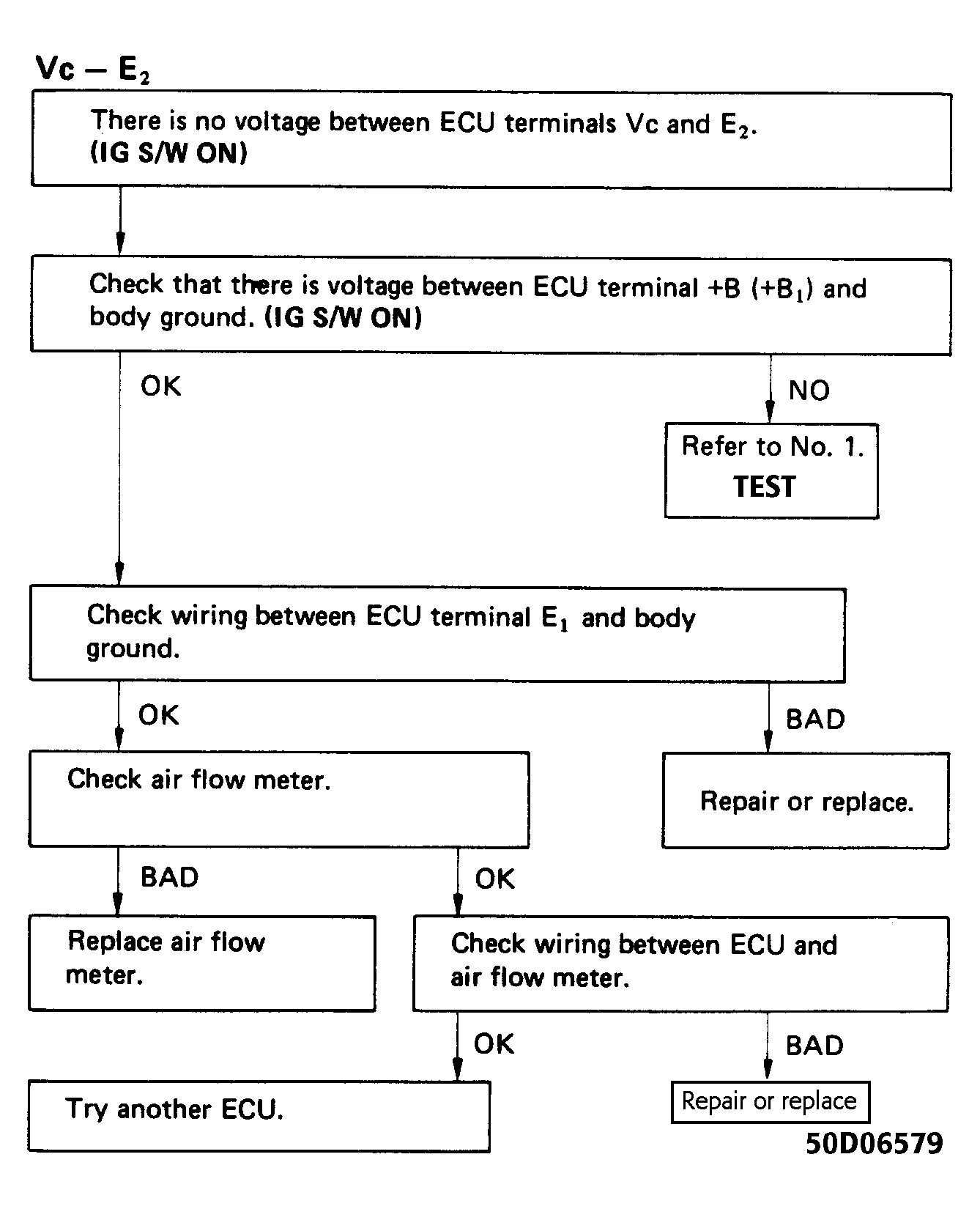

Fig 2: No. 5 Test, Code 31 Flow Chart (1 Of 2), Airflow Meter Signal (Non-Turbo)

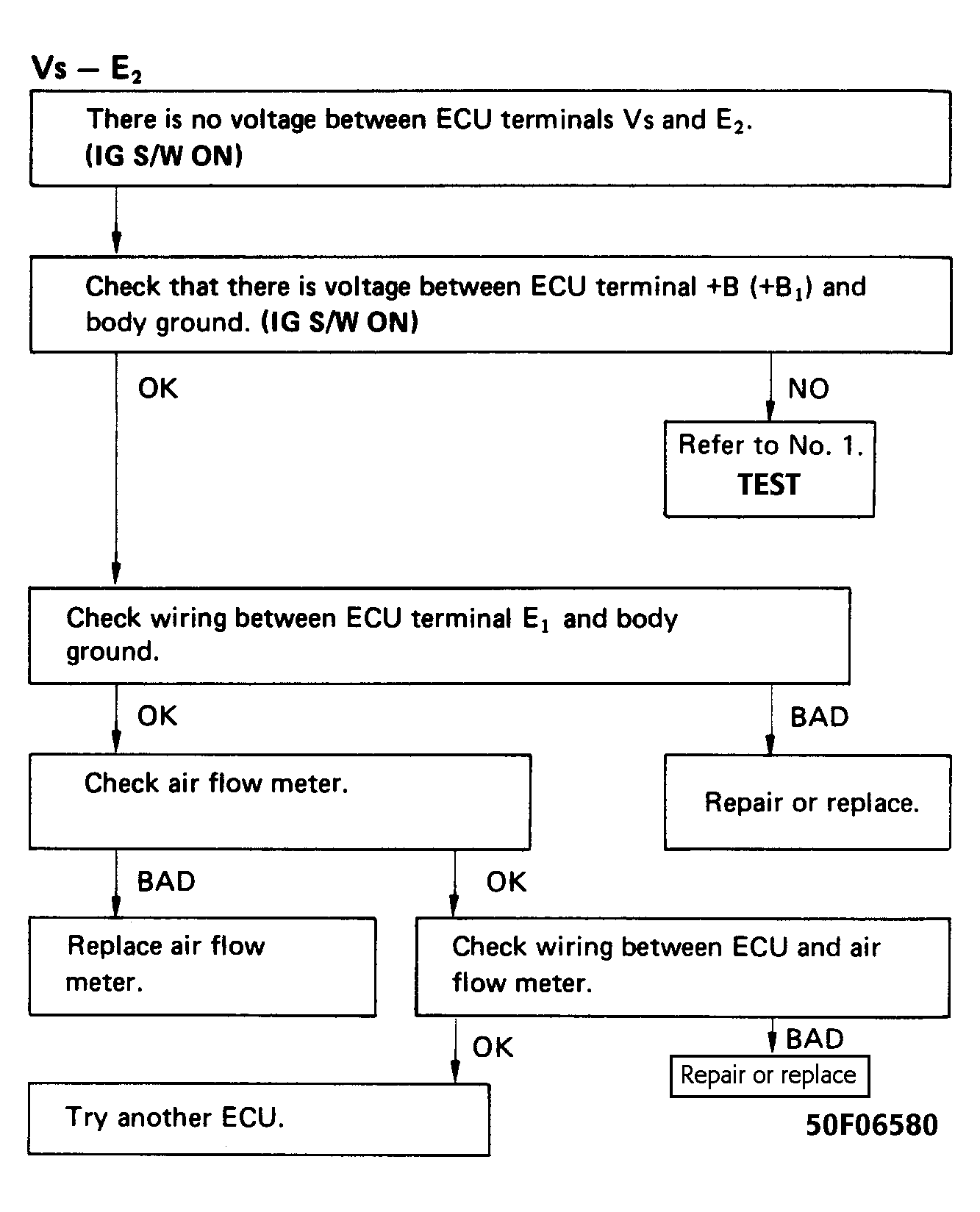

Fig 3: No. 5 Test, Code 31 Flow Chart (2 Of 2), Airflow Meter Signal (Non-Turbo)
