No. 9 Test, Injector Circuit Test

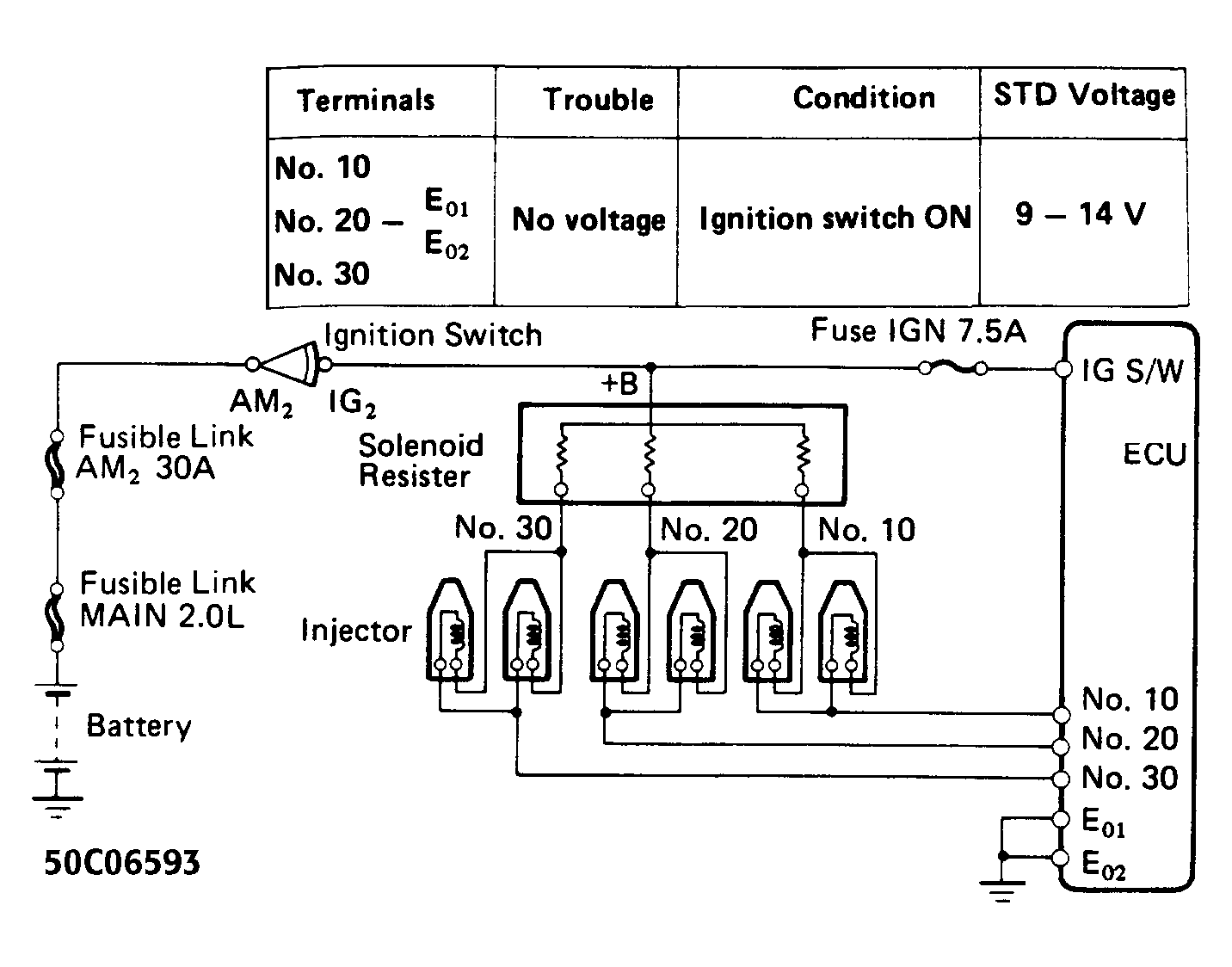

Fig 1: No. 9 Test Schematic, Injector Circuit Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

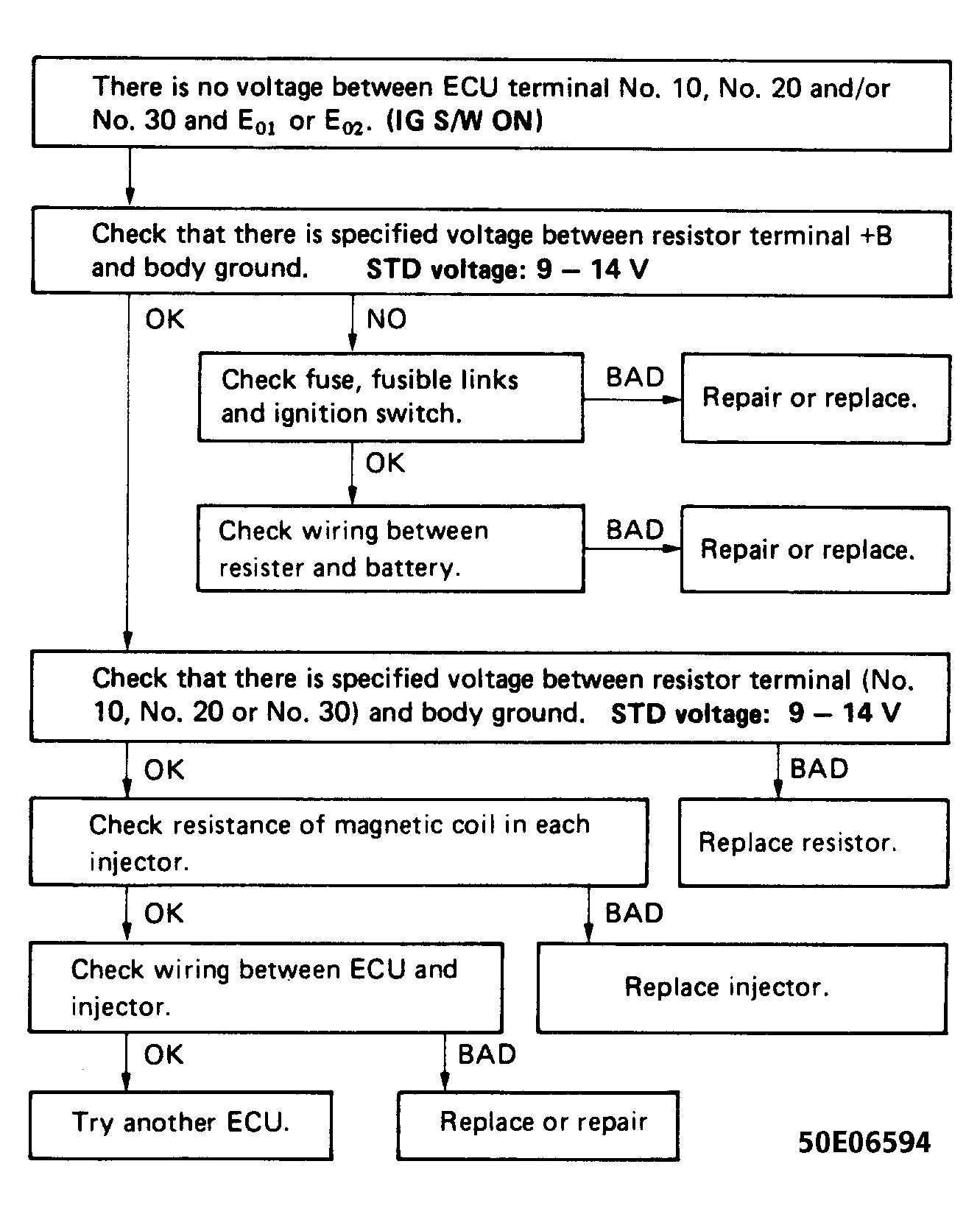

Fig 2: No. 9 Test Flow Chart, Injector Circuit Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

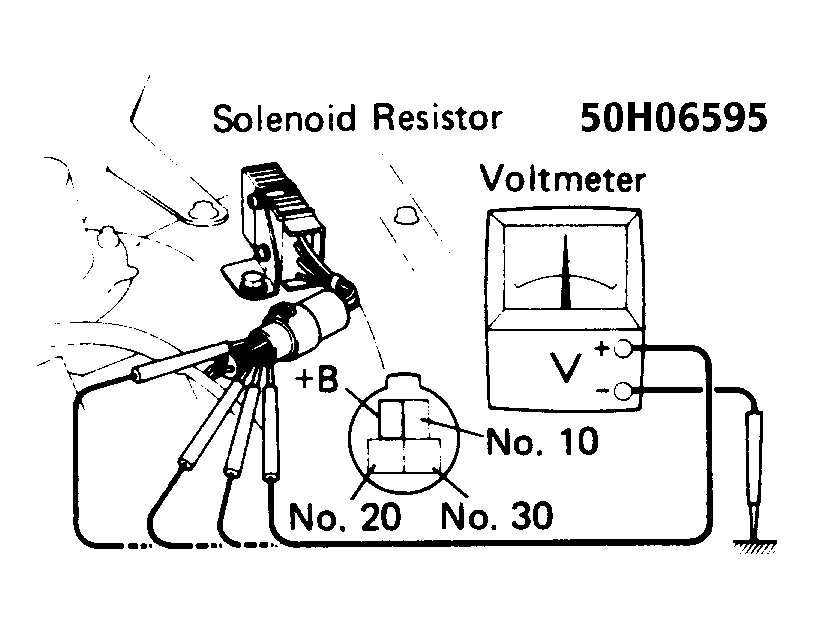

Fig 3: No. 9 Test, Specified Voltage Check (Terminals 10, 20 Or 30)

Fig 4: No. 9 Test, Magnetic Coil Resistance Check
