Supra 7M-GTE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

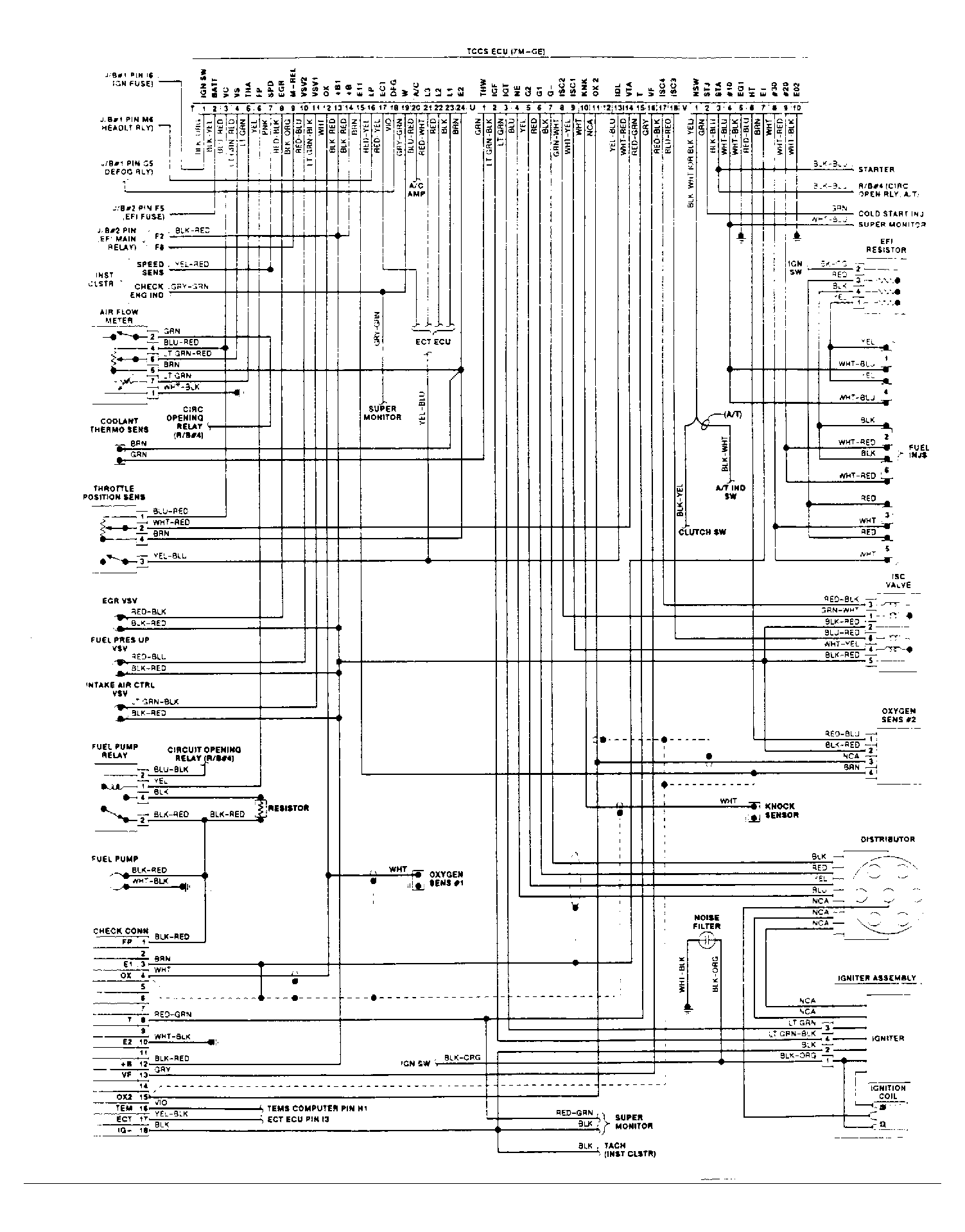

Fig 1: Toyota Computer Control System Wiring Diagram (7M-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

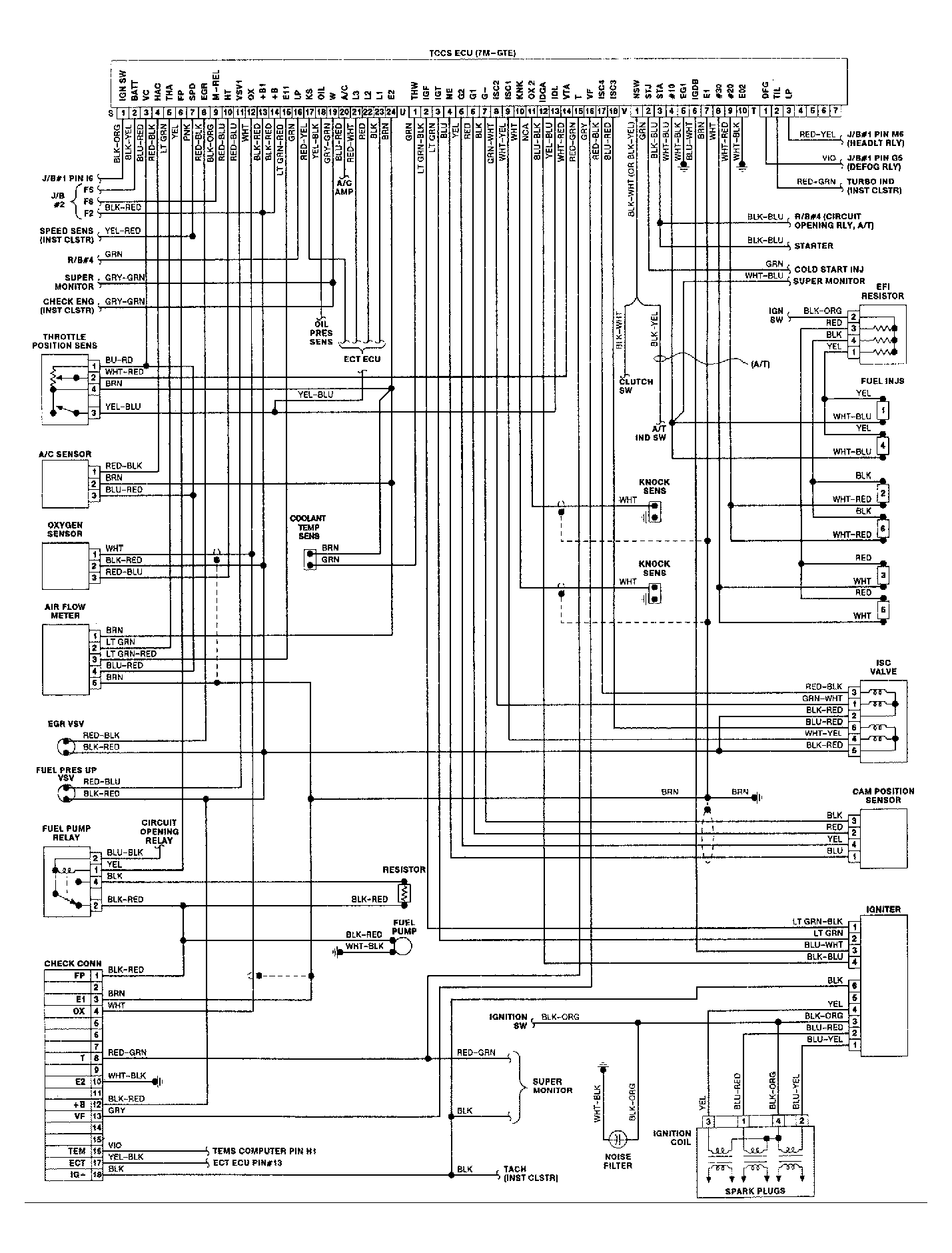

Fig 2: Toyota Computer Control System Wiring Diagram (7M-GTE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
