Neutral/Start Switch

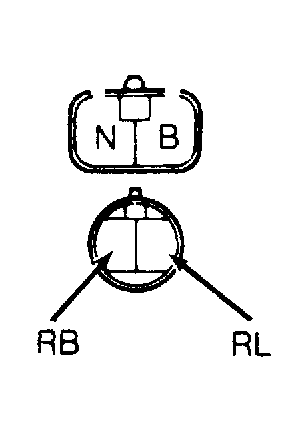

Disconnect switch connector. Note terminal identification. See Fig 1. Using ohmmeter, check for continuity at specified terminals with gearshift in proper range. See NEUTRAL/START SWITCH SPECIFICATIONS table.
NEUTRAL/START SWITCH SPECIFICATIONS
| Gearshift Position | Terminals |
|---|---|
| "P" | B & N |
| "R" | RB & RL |
| "N" | B & N |
