Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM)

Application	Base Timing	Advance Timing
Camry	10 @ 700	13-27 @ Idle

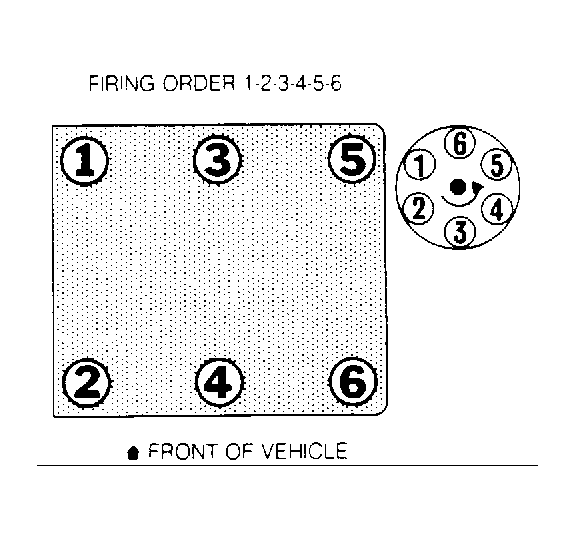

Fig 1: Camry Firing Order & Distributor Rotation
