4A-F Diagnostic Circuit Check

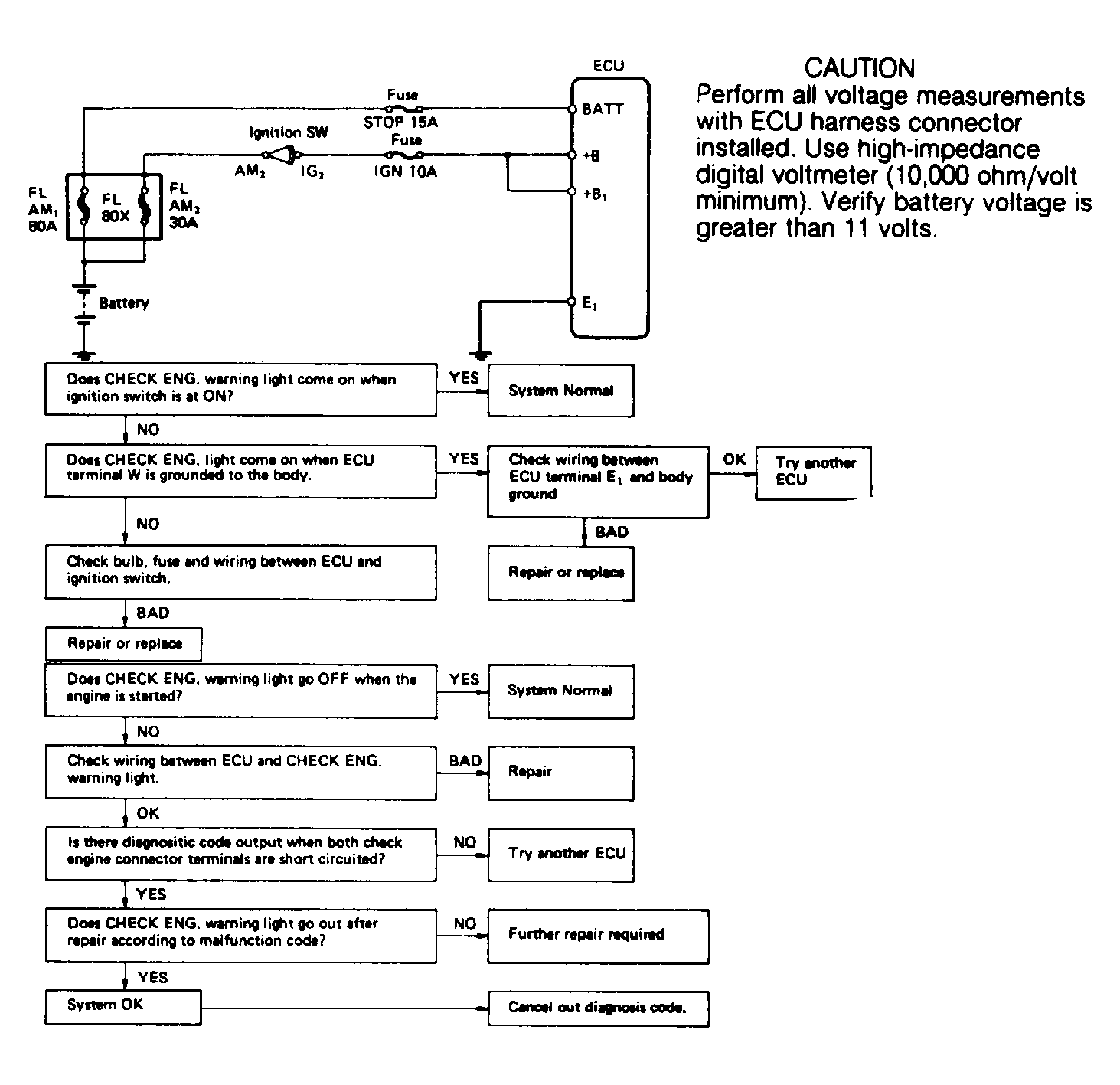

Fig 1: 4A-F Diagnostic Circuit Check Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
