System Flow Charts: CRESSIDA

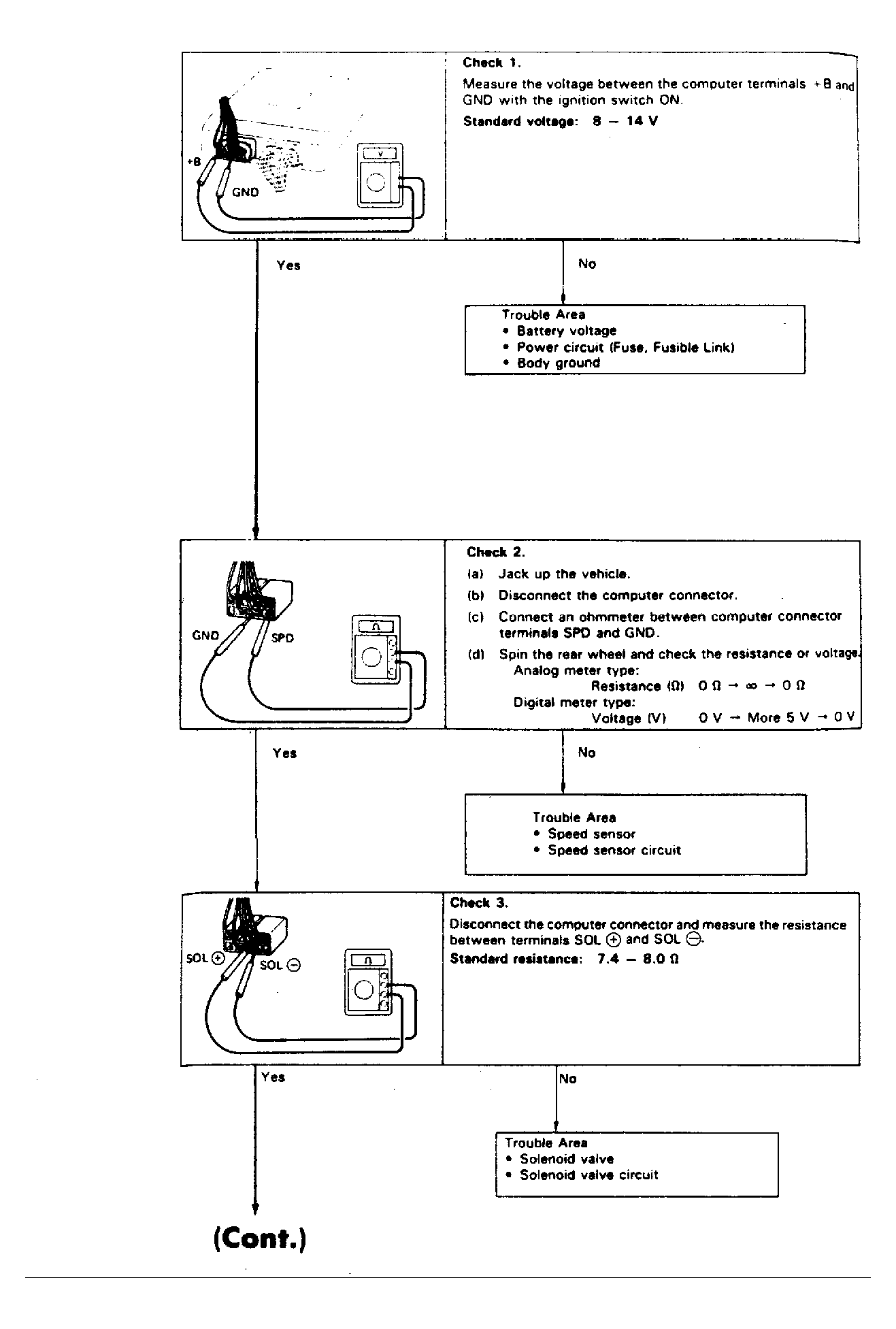

Fig 1: Cressida Flow Chart (Part 1 of 2)
G105044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

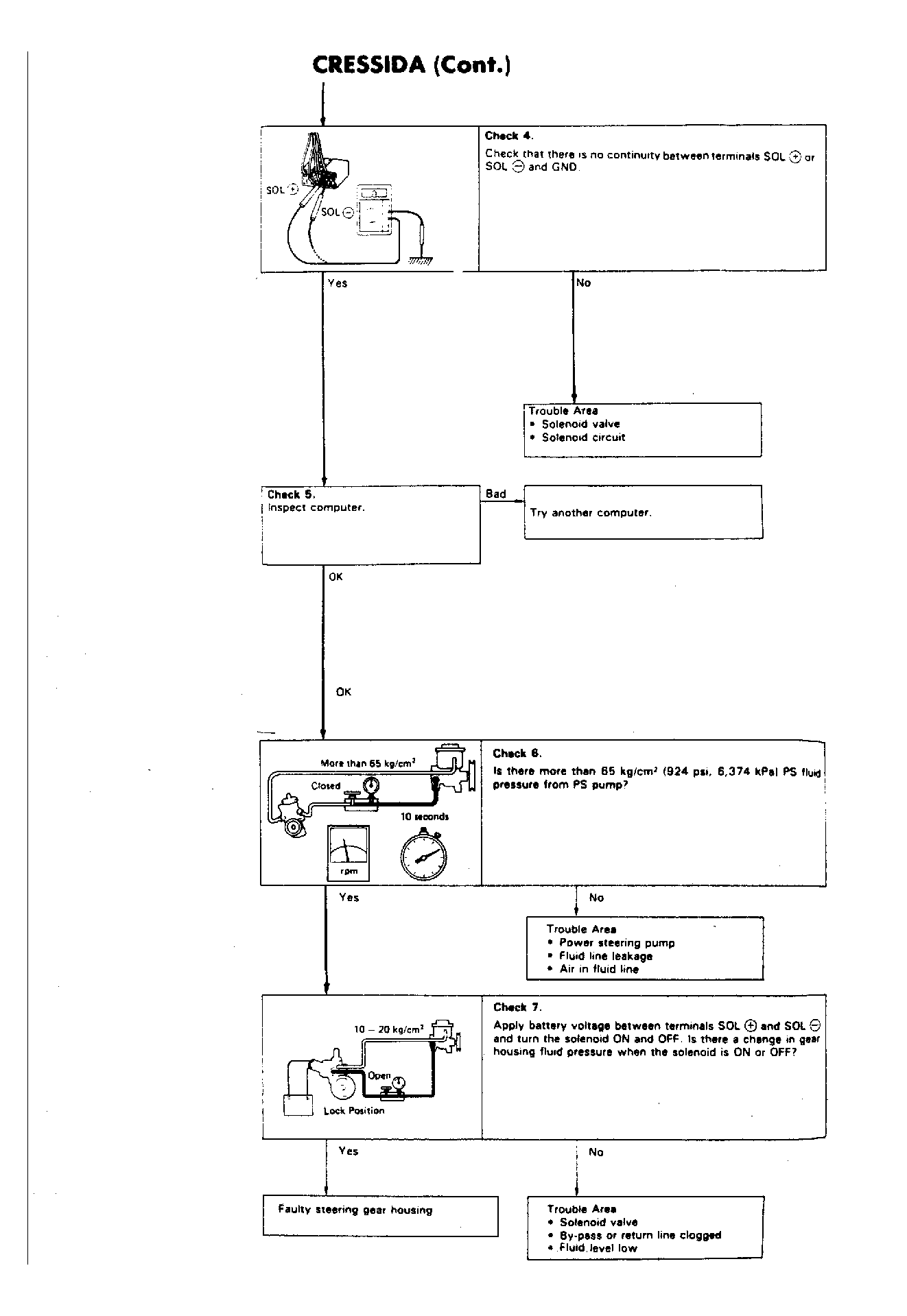

Fig 2: Cressida Flow Chart (Part 2 of 2)
G101429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
