EGR System Components

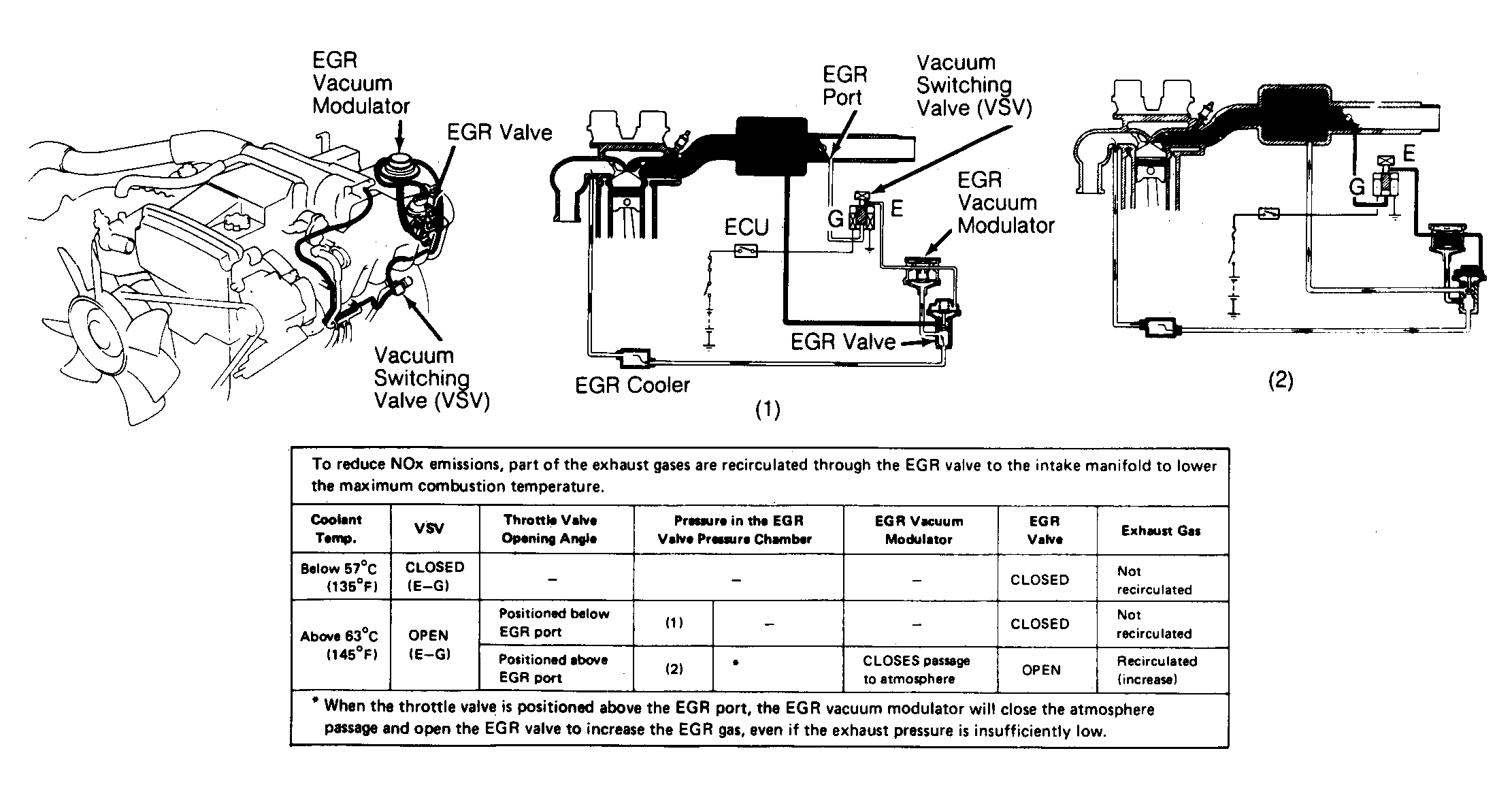

Fig 1: Supra (Non-Turbo) EGR System Components & Operating Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Supra (Turbo) EGR System Components & Operating Parameters
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
