Choke Breaker Diaphragms: Corolla

Check that choke linkage moves in accordance with applied vacuum. See Fig 1 & 29.

NOTE: On Corolla, when diagnosising a choke breaker problem, refer to Fig 1, Figure, Figure or Figure. for system components and operating parameters.

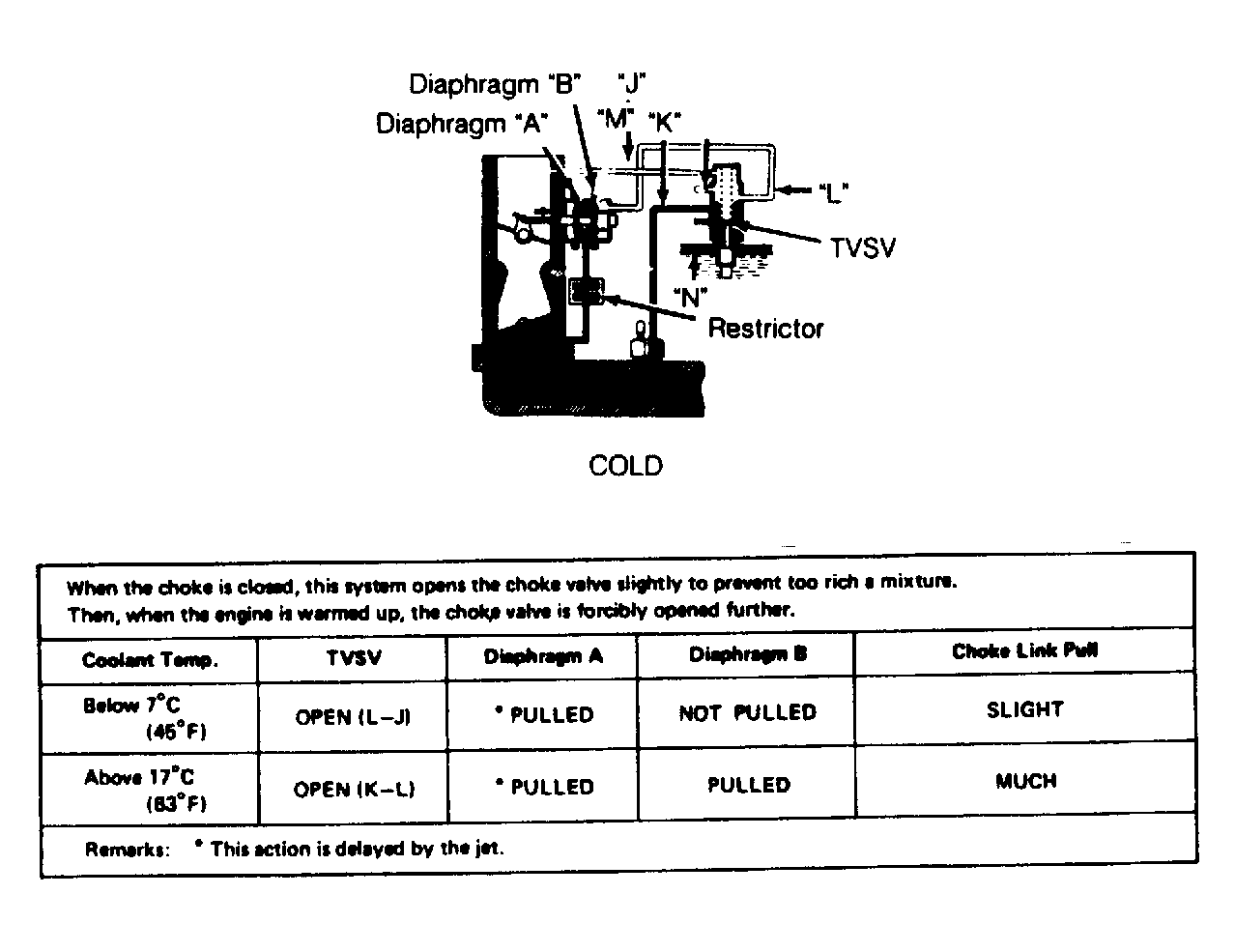

Fig 1: Choke Breaker Component & Cold Parameters (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

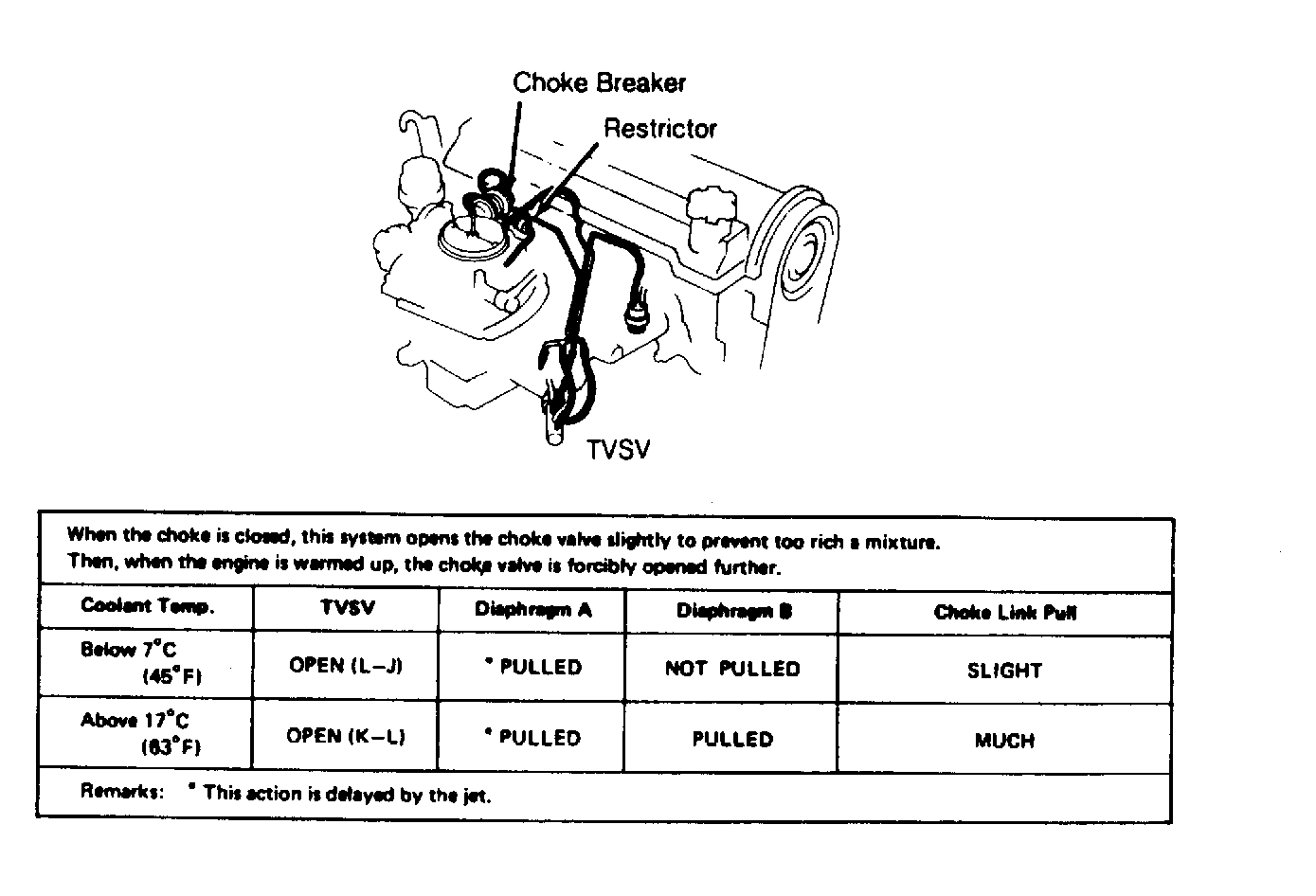

Fig 2: Choke Breaker Vacuum Diagram (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Choke Breaker Component & Hot Parameters (Corolla)

Fig 4: Inspecting Choke Diaphragms (Corolla)
