Diagnostic Circuit Check: Notes

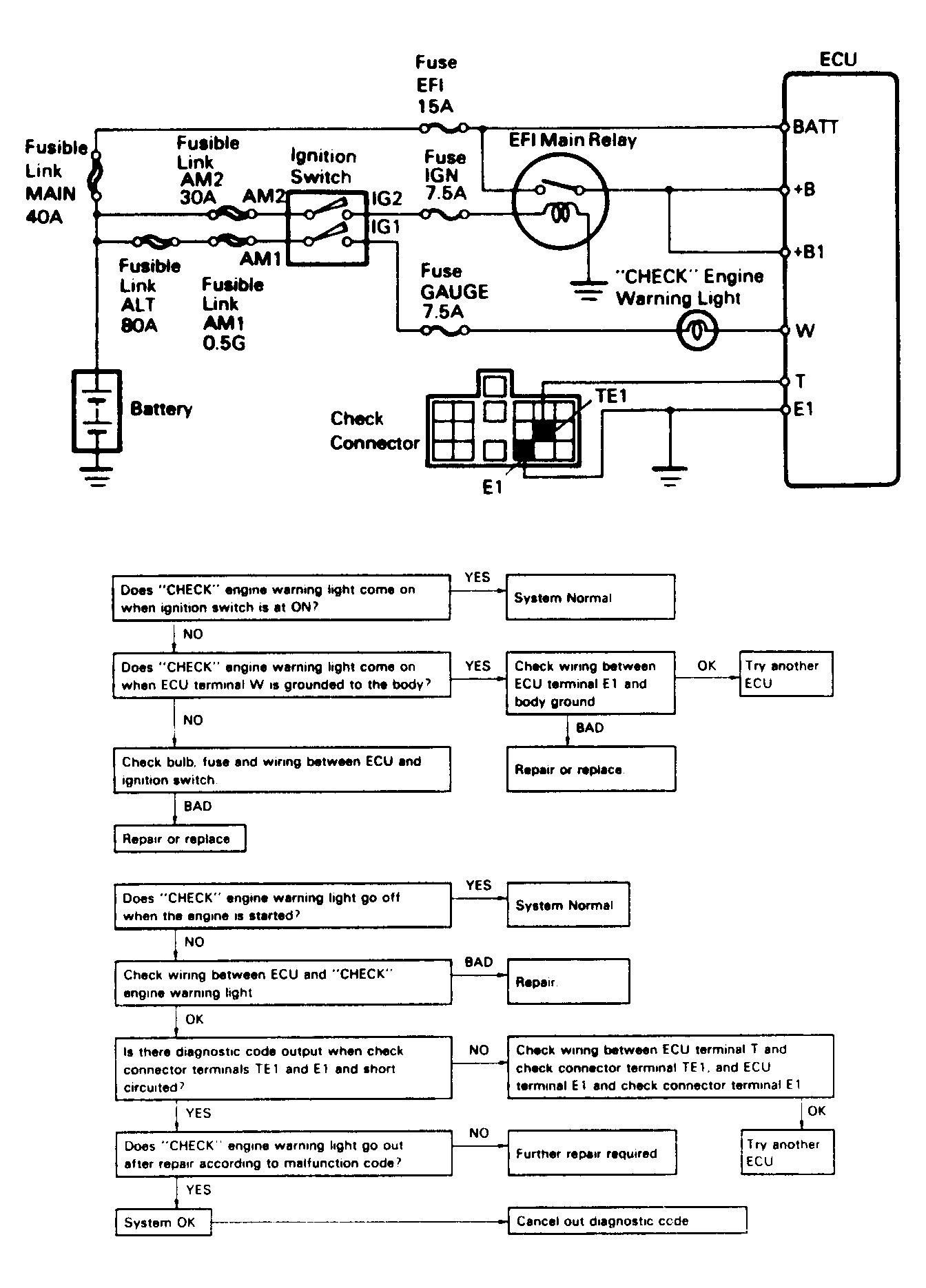

Fig 1: 4-Cyl Diagnostic Circuit Check
G118610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

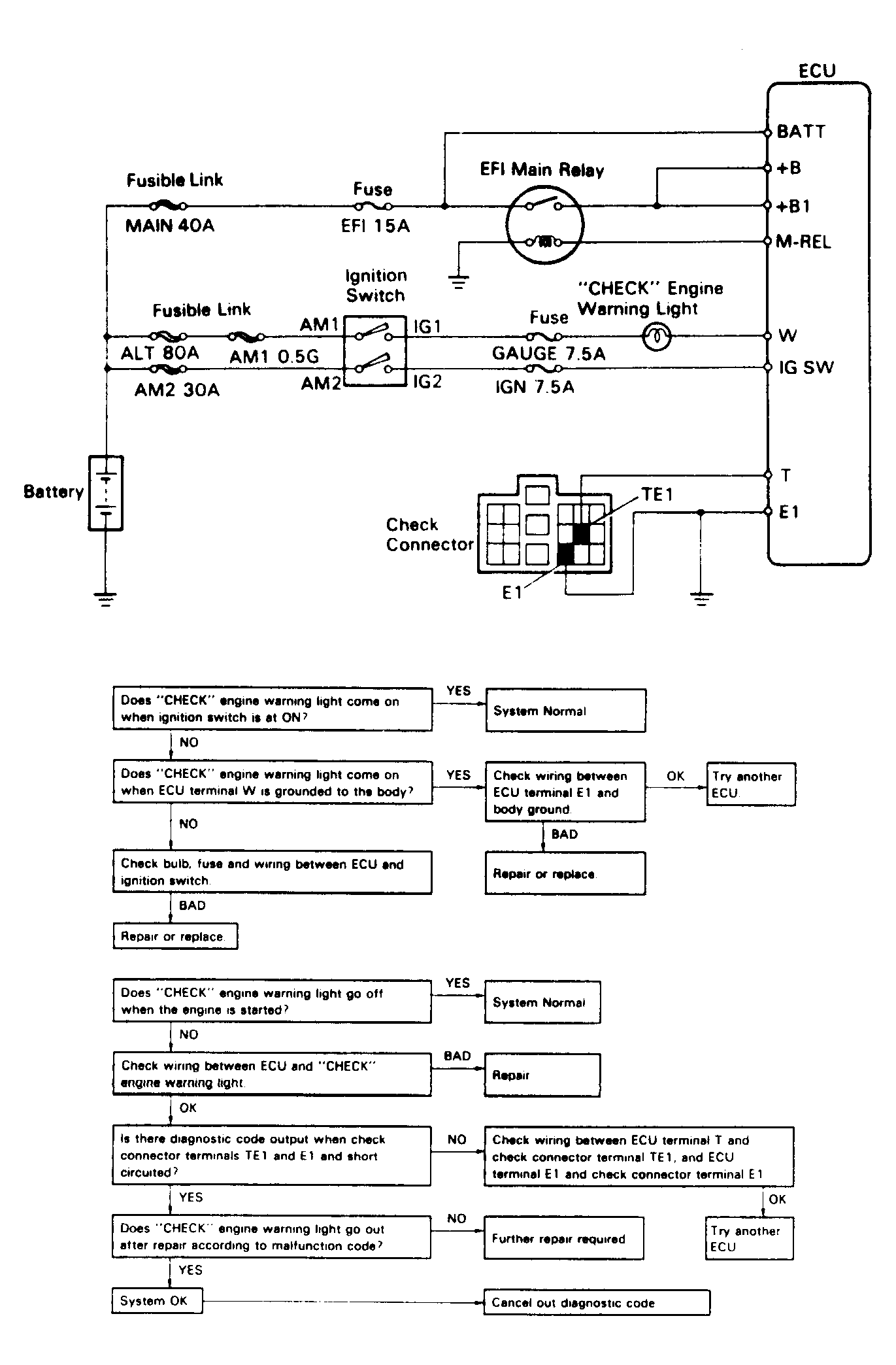

Fig 2: V6 Diagnostic Circuit Check
G118611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
