Pick-Up Coil Air Gap Check

Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection.
Air gap should be within specification. See PICK-UP COIL ADJUSTMENT table. If air gap is not within specification, replace distributor.

PICK-UP COIL ADJUSTMENT

Application

INCH (mm)

All Models

⁽¹⁾ .008-.016 (.20-.40)

⁽¹⁾	Replace distributor if not within specification.

Fig 1: Checking Pick-Up Coil Air Gap (3S-GE & GTE)

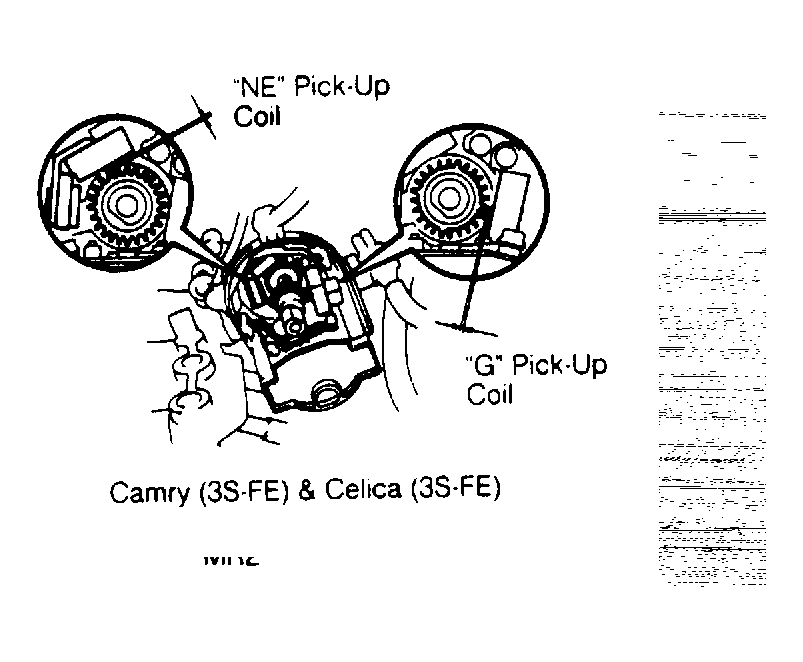

Fig 2: Checking Pick-Up Coil Air Gap (3S-FE)
