Service Point Locations

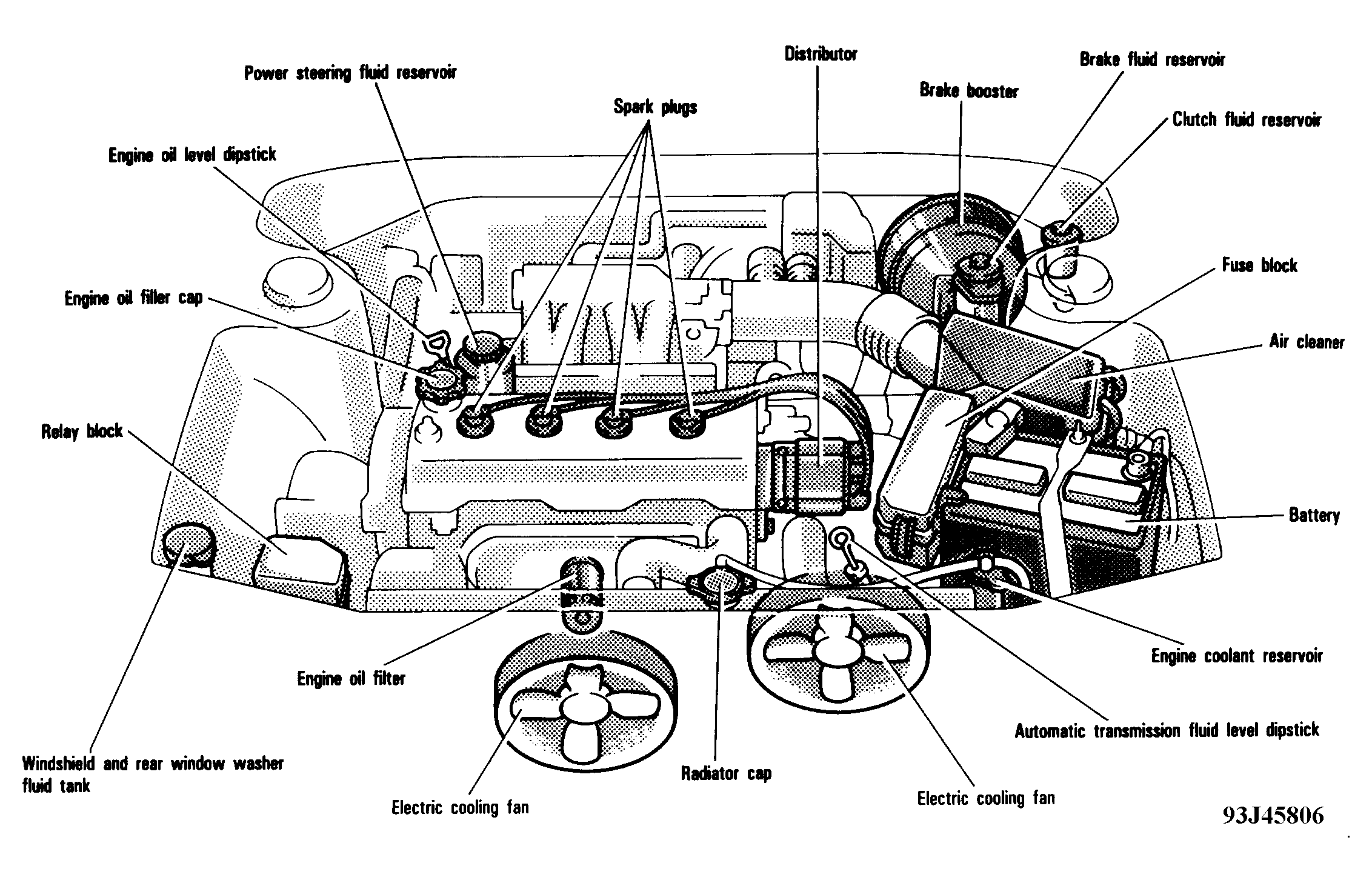

Fig 1: Service Point Locations (3S-GTE Engine (Turbo))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

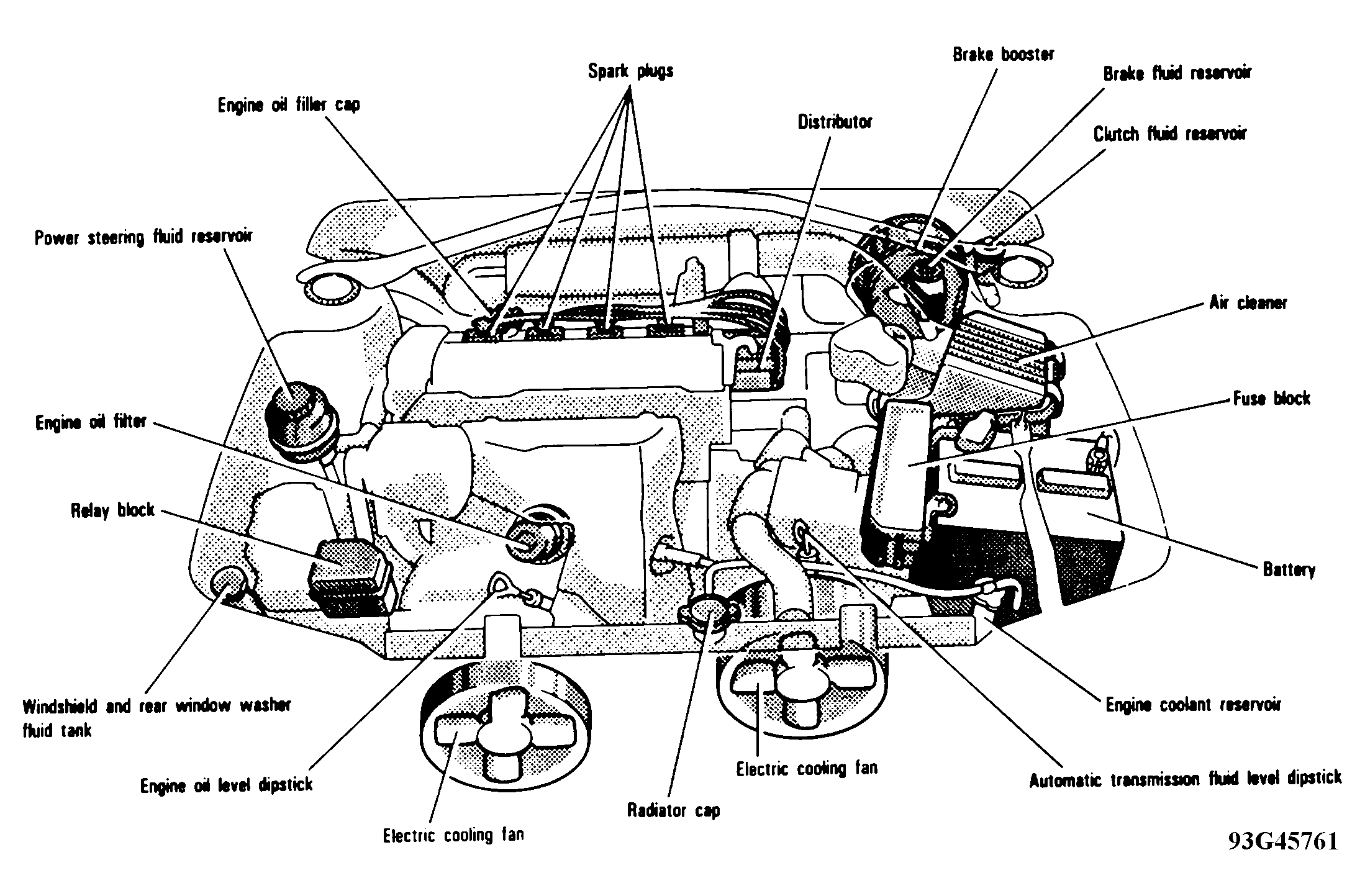

Fig 2: Service Point Locations (5S-FE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

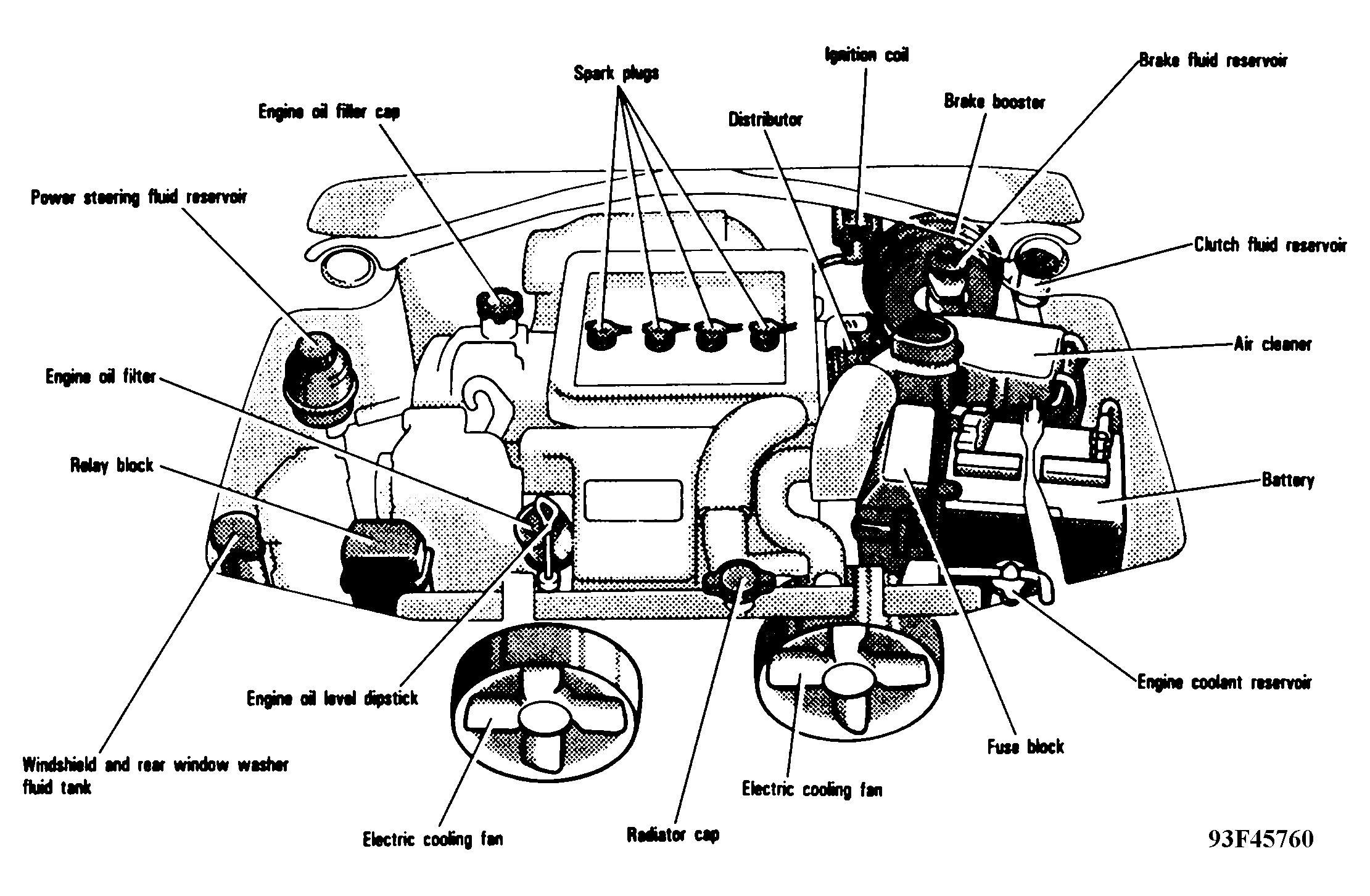

Fig 3: Service Point Locations (4A-FE Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
