Solenoid Pull-In Coil Test

Connect 2 battery negative leads to terminal "C" and ground. Connect a 12-volt battery positive lead to solenoid terminal "50". See Fig 1. Plunger should extend firmly. If not, replace solenoid.

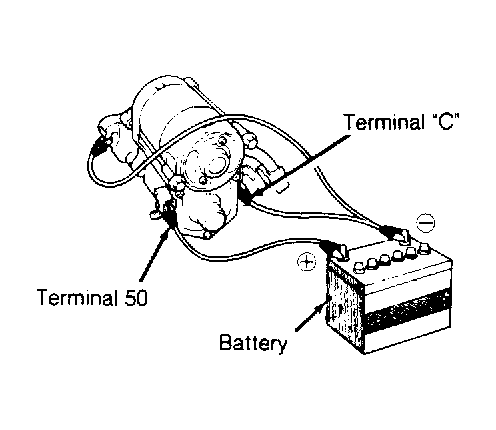

Fig 1: Testing Solenoid Pull-In Coil
