Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
4A-FE & 4A-GE Ecu Terminal Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
4A-FE & 4A-GE Ecu Terminal Identification

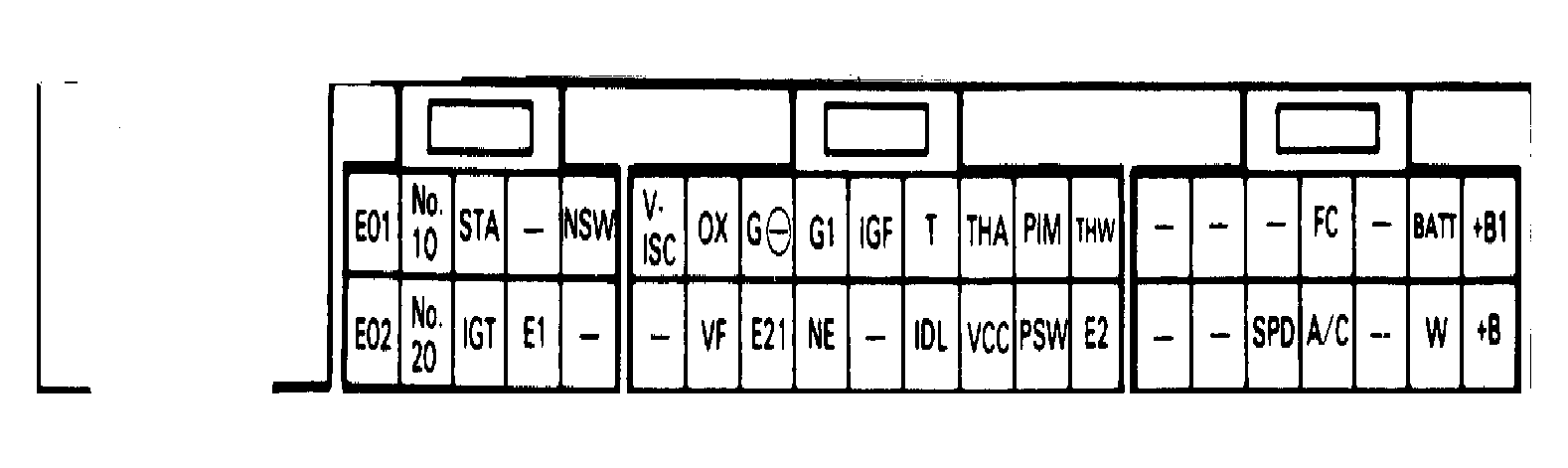

Fig 1: 4A-FE ECU Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

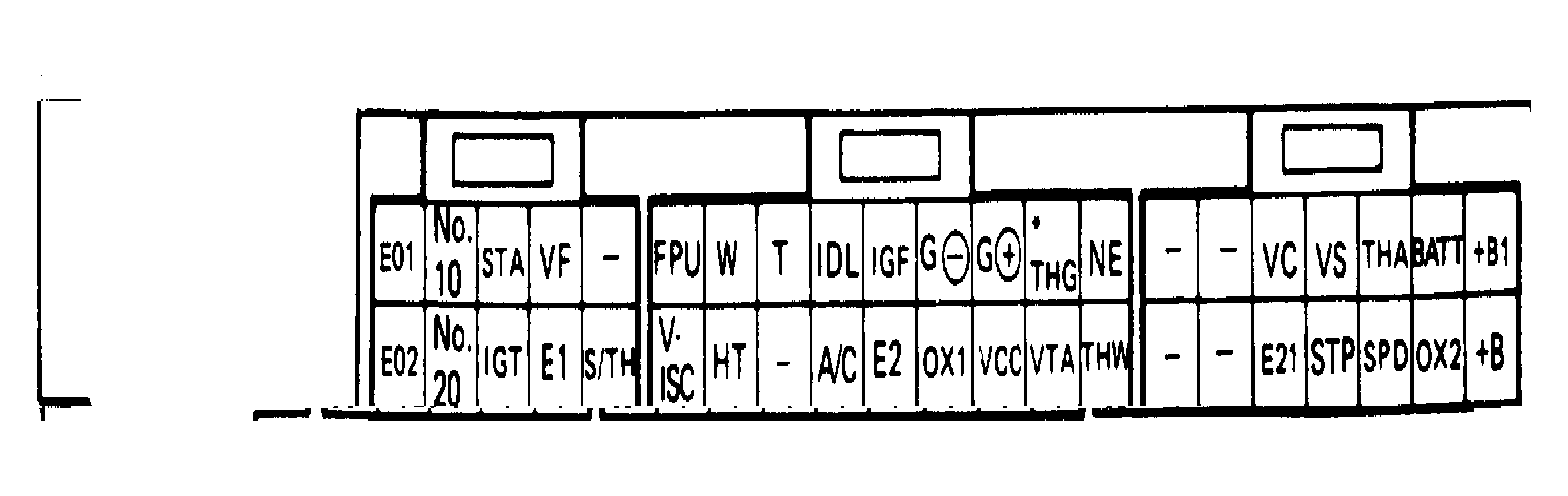

Fig 2: 4A-GE ECU Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
