Door Lock Control Switch

Inspect the switch continuity between terminals. See Fig 1. If continuity is not as specified, replace the switch.

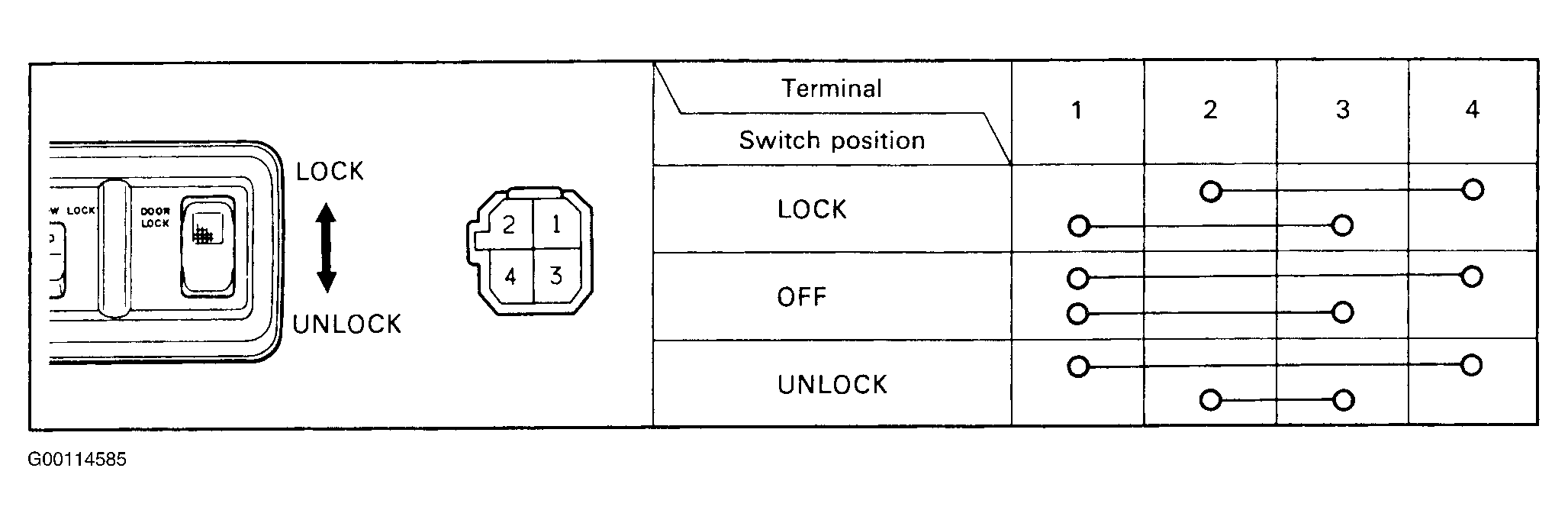

Fig 1: Testing Door Lock Control Switch Continuity
G00114585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
