Power Window Driver Switch

The power windows work when the ignition is in the ON position.

The power window driver switch is located on the door, just under the pull handle. There is a switch for the driver door, a switch for the passenger door and a button to lock out operation of the passenger switch. See Fig 1. The driver door switch has an "automatic down" feature. The driver window switch has a center switch and an outer switch. Pushing the center switch down causes the window to move down as long as the switch is engaged. Pushing the outer switch down causes the window to go all the way down even when the switch is released. Pushing up on the switch while the window is going down will cause the window to stop going down.

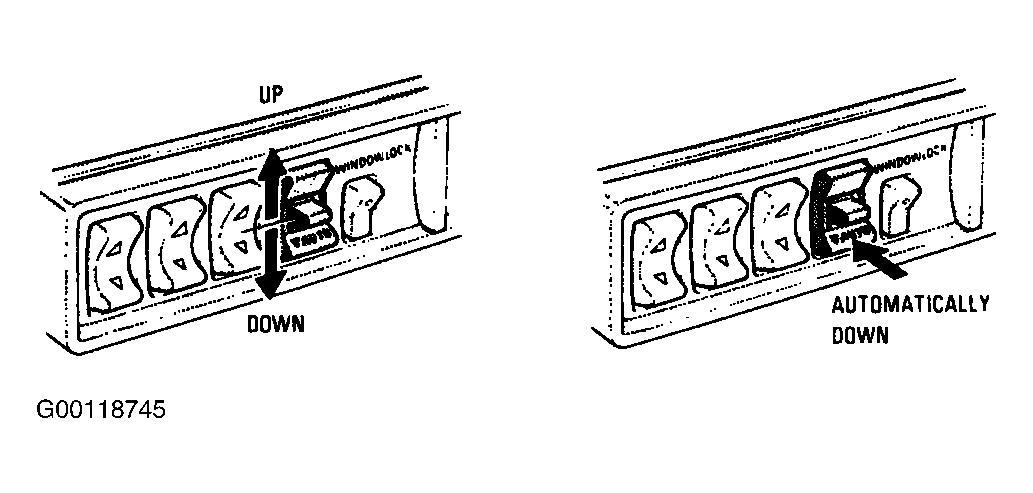

Fig 1: Operating Driver Power Window
G00118745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
