Power Window Switch Continuity

Inspect power window switch between specified terminals. See Fig 1. If continuity is not as specified, replace the switch.

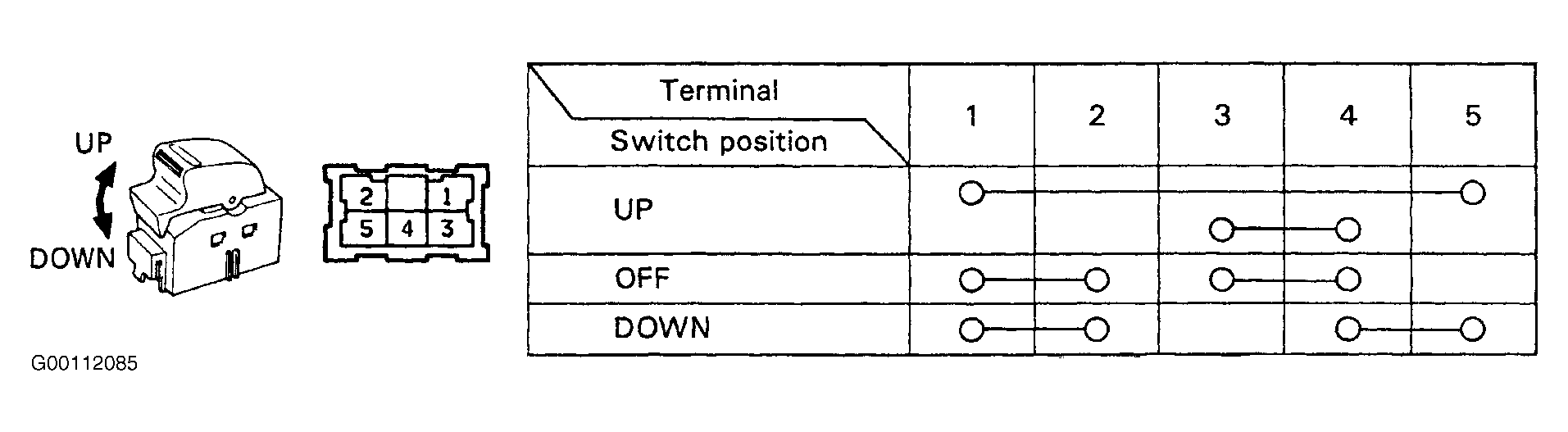

Fig 1: Testing Power Window Switch Continuity
G00112085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
