TCCS: Water Temperature Sensor: Overview

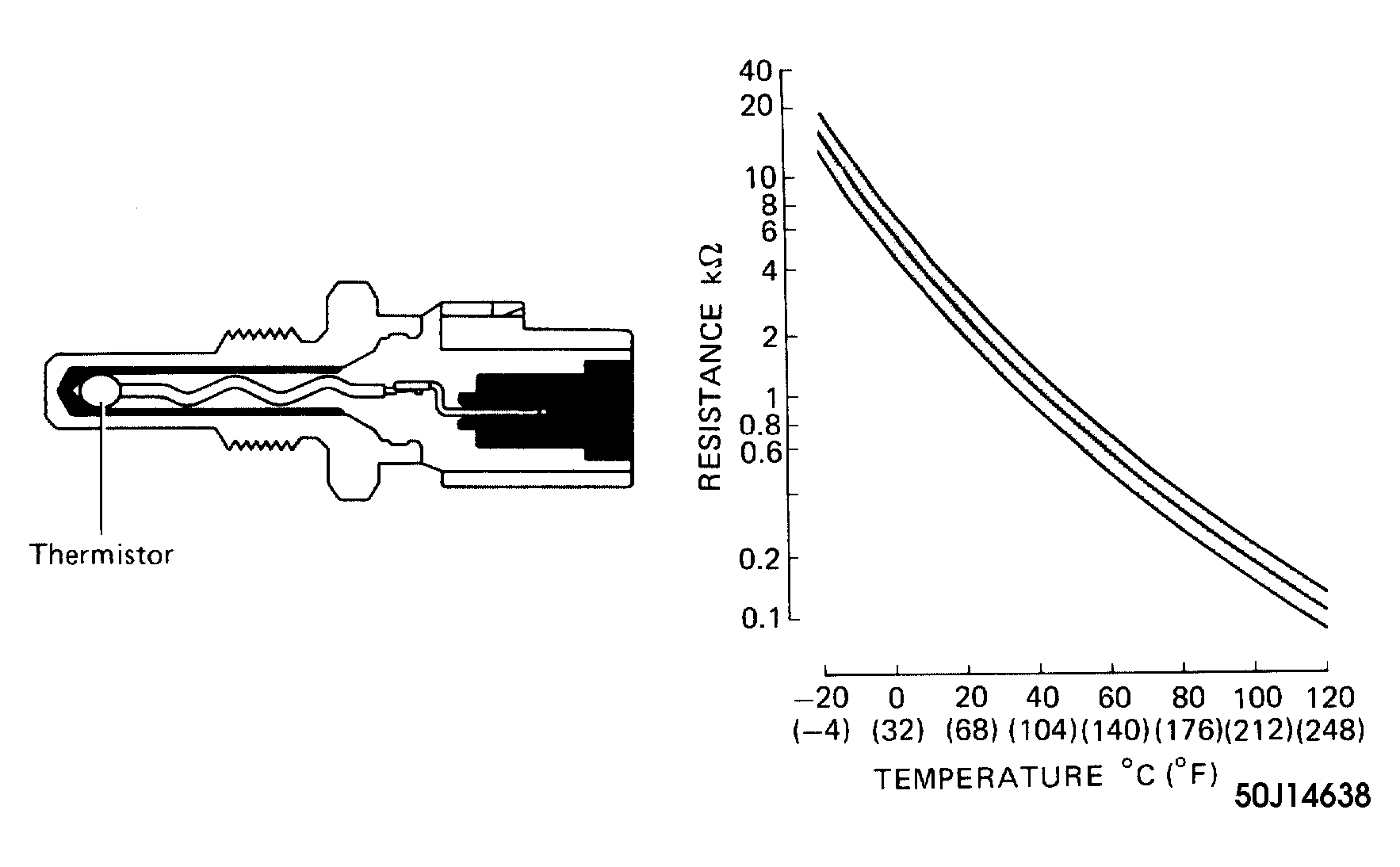

Fig 1: Water Temp Sensor X-Ray View & Resistance Specifications
G50J14638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
