Connector Identification

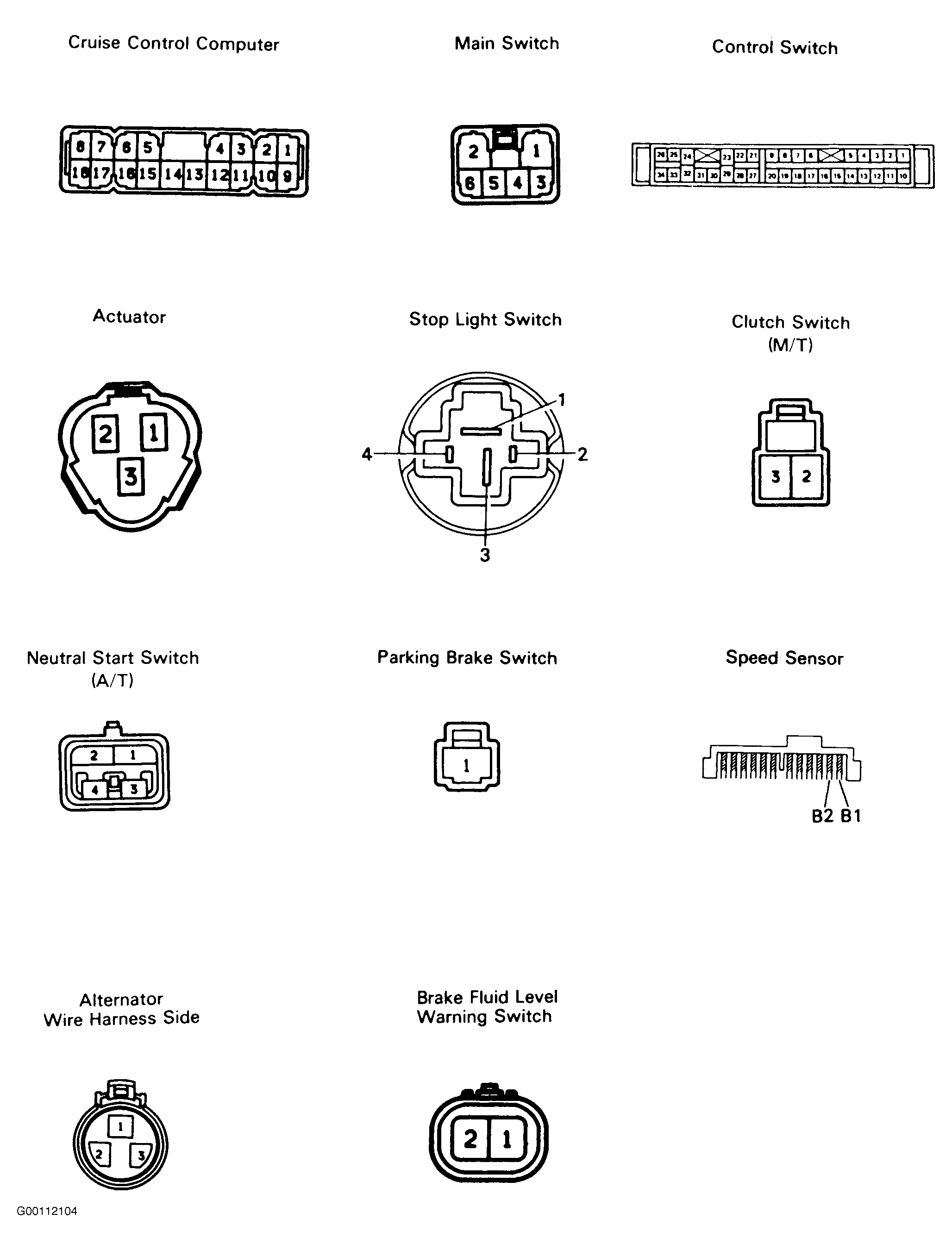

Fig 1: Identifying Cruise Control System Connectors & Terminals
G00112104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
