System Tests: Notes

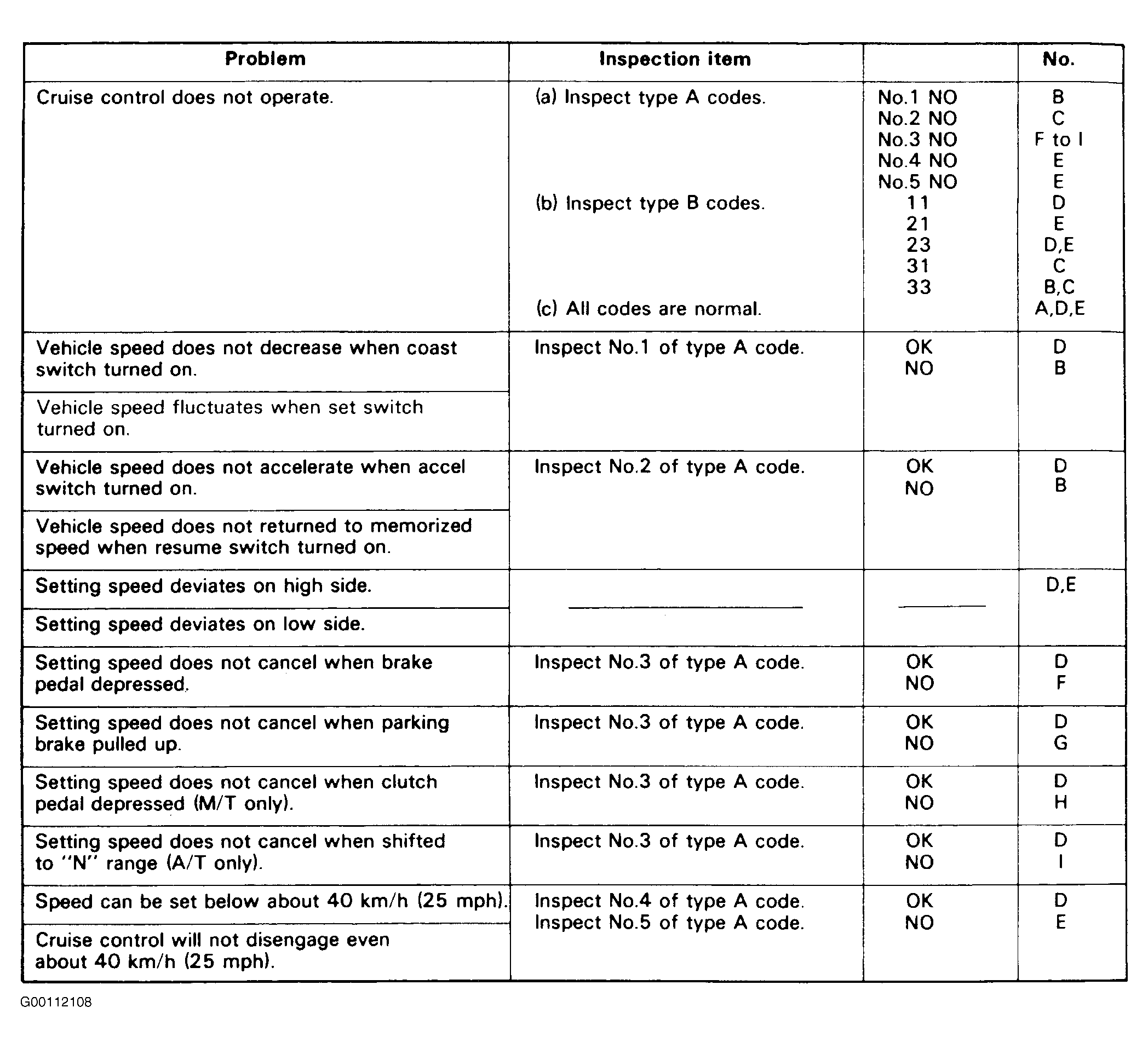

For a complete list of symptoms, refer to illustration. See Fig 1. Perform appropriate test. See SYSTEM TEST INDEX table.
SYSTEM TEST INDEX
| Circuit | Perform Test |
|---|---|
| Inspection Of Power Source | A |
| Inspection Of SET/COAST Switch | B |
| Inspection Of ACCEL/RESUME Switch | C |
| Inspection Of Actuator | D |
| Inspection Of Speed Sensor | E |
| Inspection Of Stop Light Switch | F |
| Inspection Of Parking Brake Switch | G |
| Inspection Of Clutch Switch | H |
| Inspection Of Neutral Start Switch | I |
