Alternator & Regulator: Overhaul
NOTE:
Overhaul procedures are not available from manufacturer. Refer to
Fig 1
through
Fig 10
for views of alternator assembly.

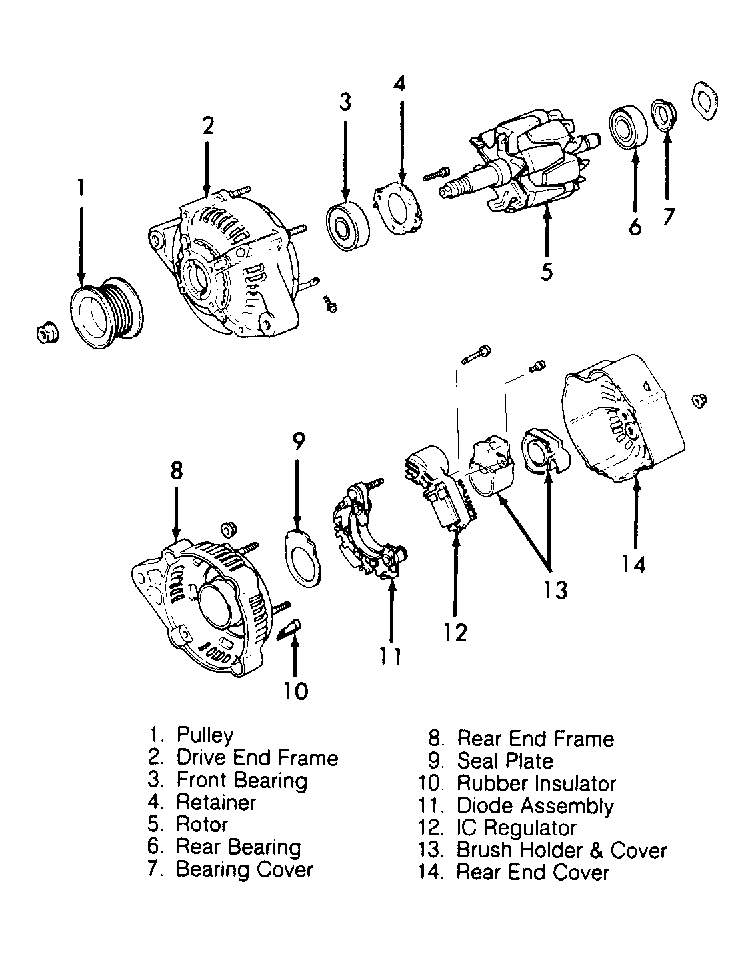

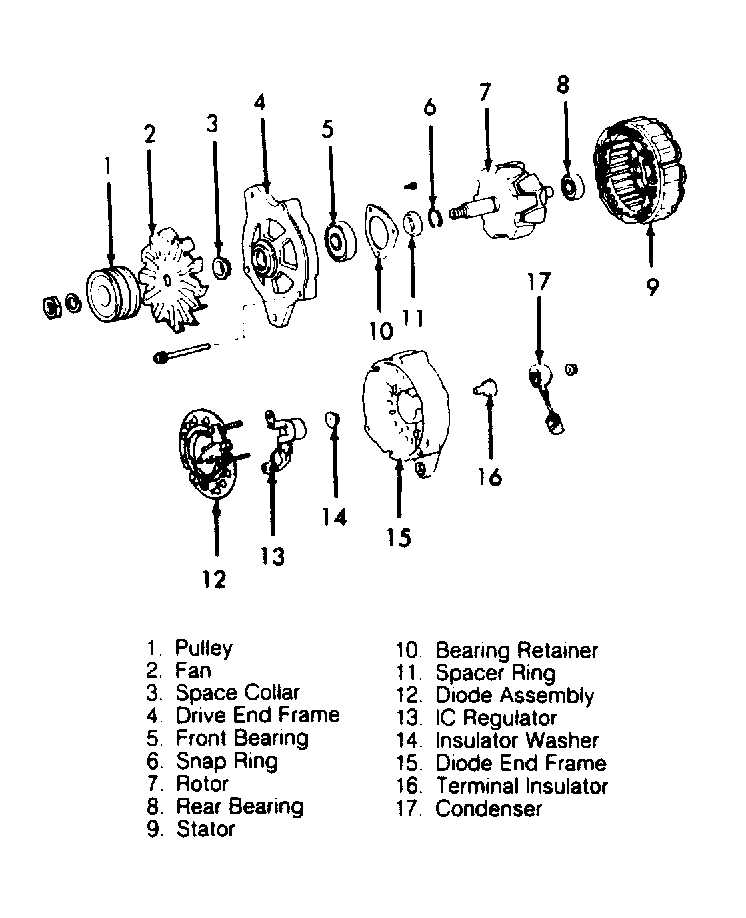

Fig 1: Exploded View of Alternator (Camry (4AF-E M/T), Celica, Cressida & Supra (7M-GE))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

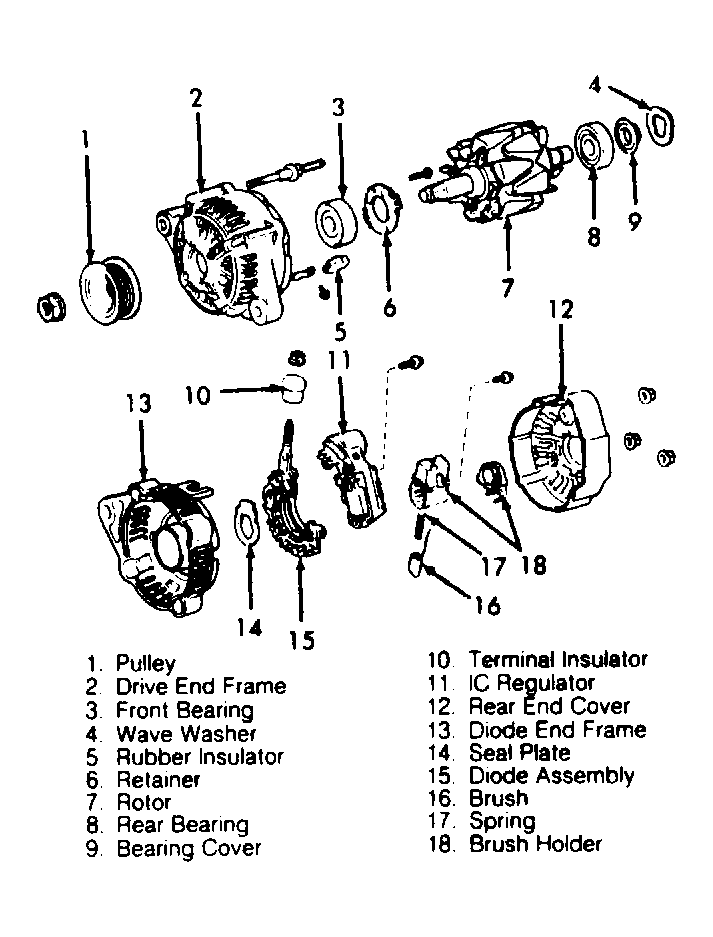

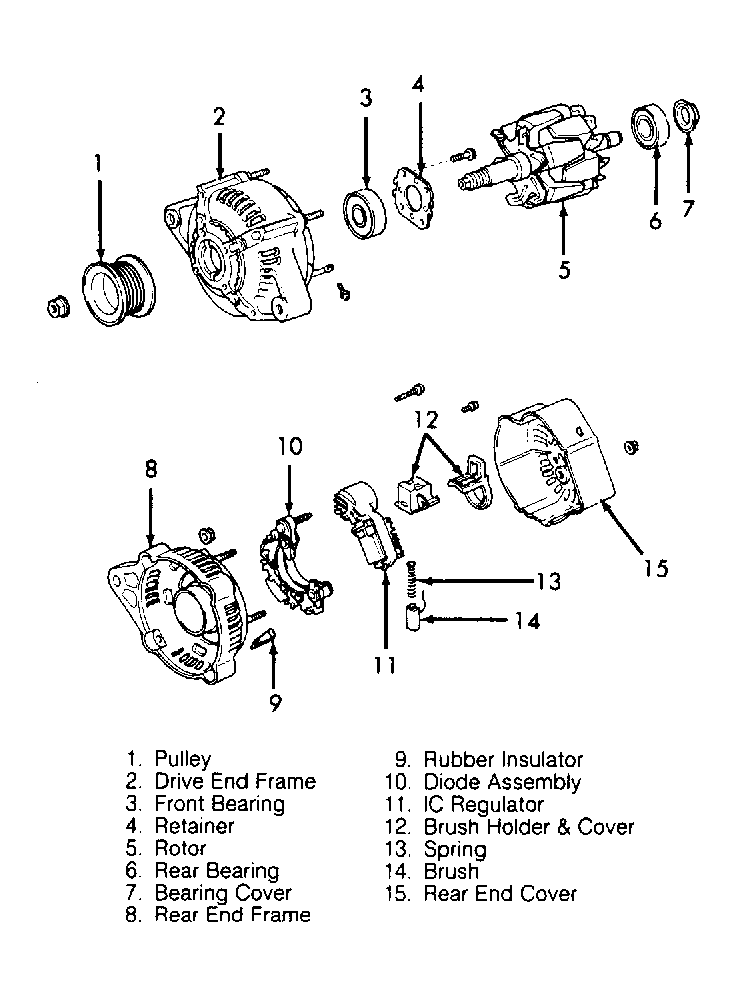

Fig 2: Exploded View of Alternator (Celica (4AF-E A/T) & Corolla)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

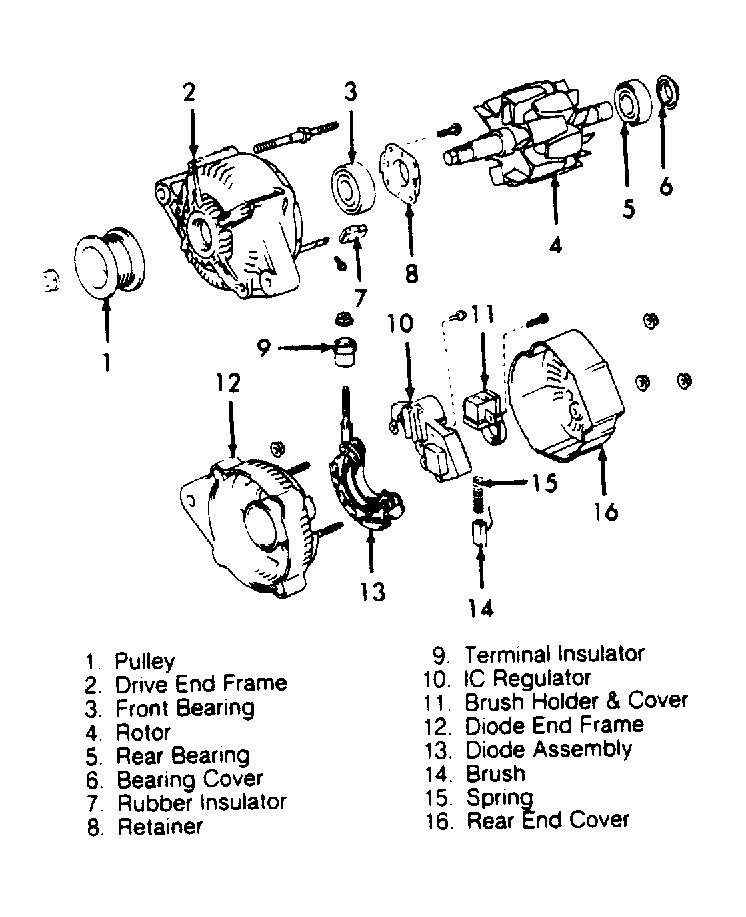

Fig 3: Exploded View of Alternator (Celica (3S-GTE & 5S-FE A/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

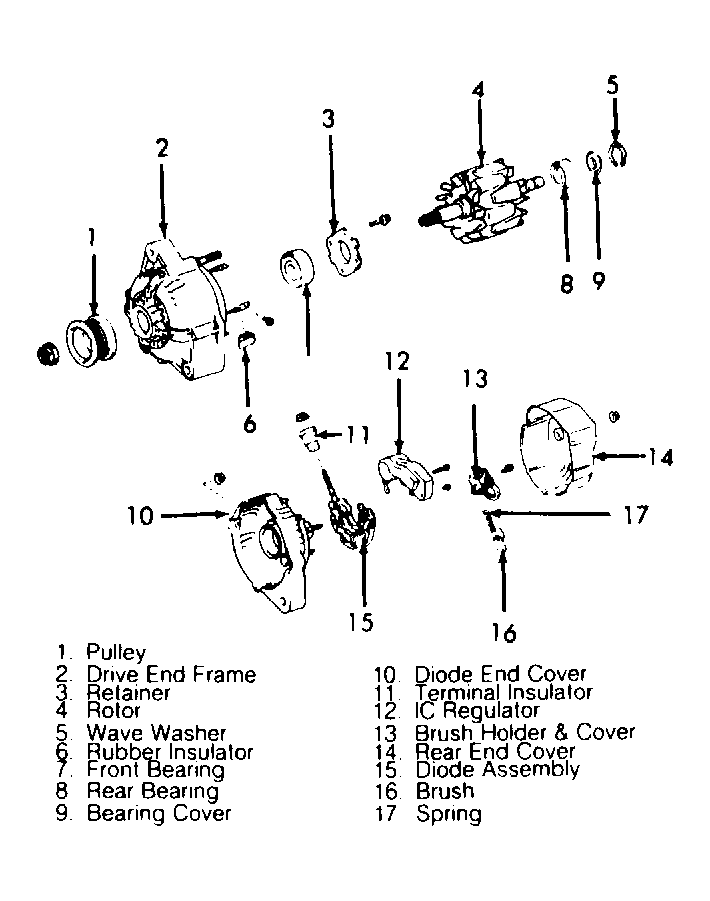

Fig 4: Exploded View of Alternator (Celica 5S-FE M/T)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

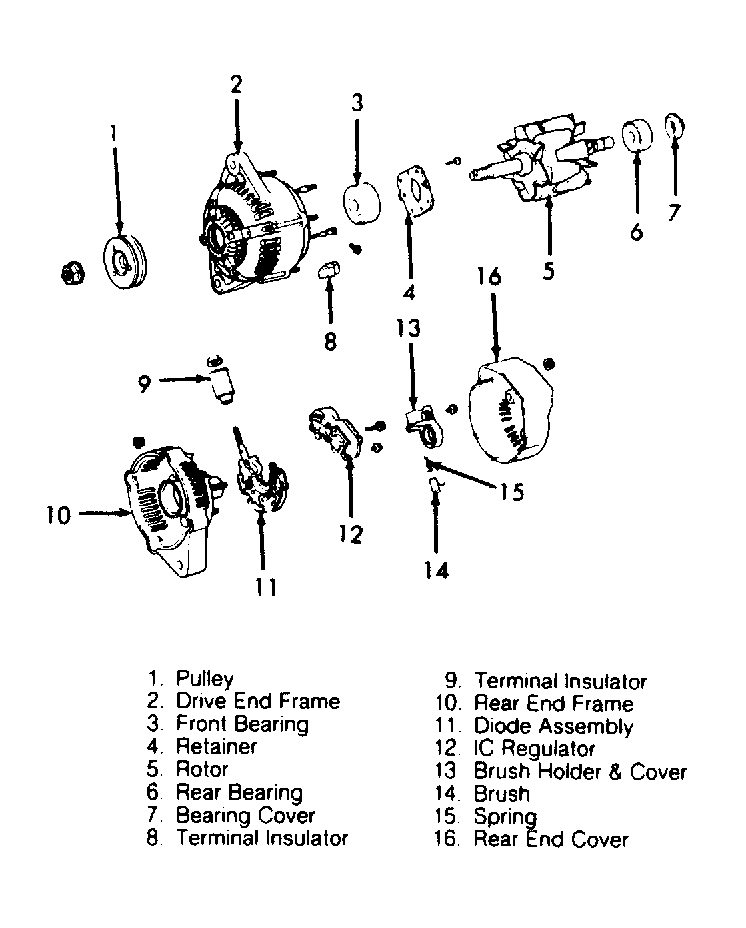

Fig 5: Exploded View of Alternator (Land Cruiser)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

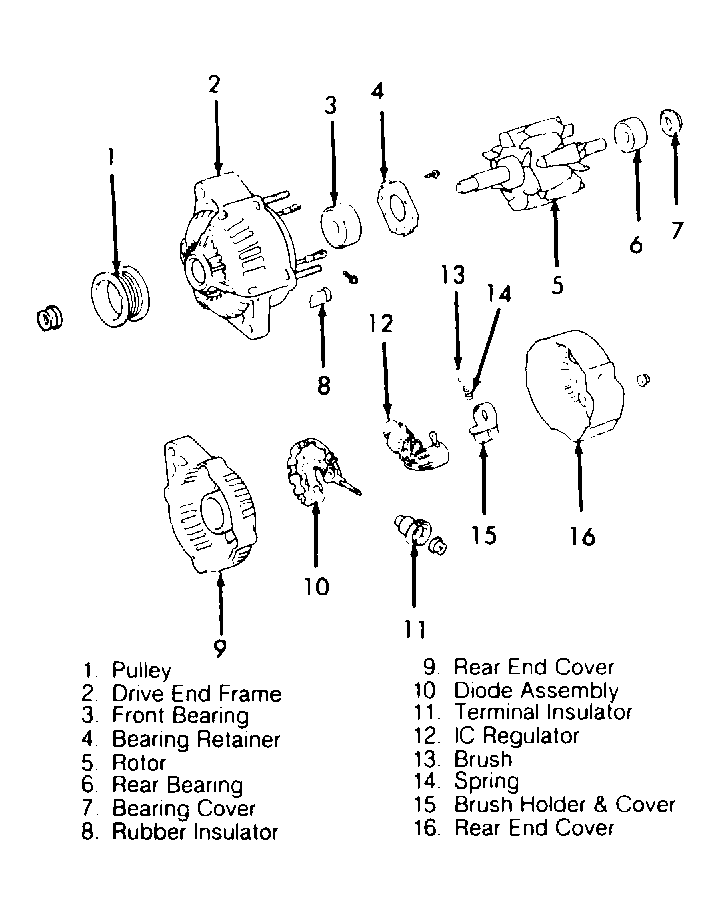

Fig 6: Exploded View of Alternator (Pickup & 4Runner 22R-E)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

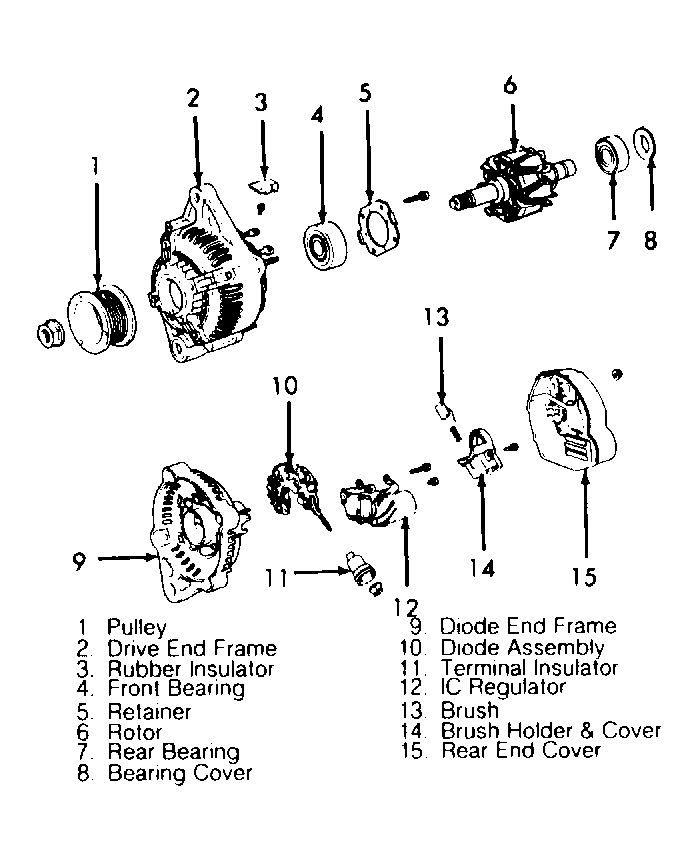

Fig 7: Exploded View of Alternator (Pickup & 4Runner 3VZ-E)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

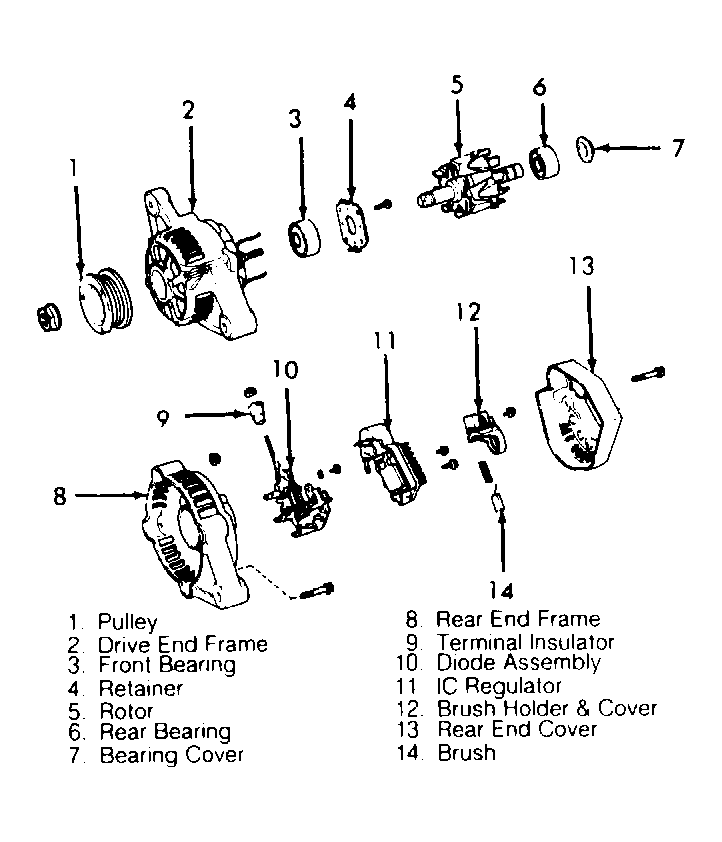

Fig 8: Exploded View of Alternator (Tercel 50-Amp)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Exploded View of Alternator (Corolla 4AG-E & Tercel 55 & 60 Amp)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Exploded View of Alternator (Supra 7M-GTE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
