Code 14/Test No. 3 - Rpm Signal

NOTE: To check ignition system components, see I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.

CODE 14/TEST NO. 3 - RPM SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IGT-E1	No Voltage	Engine Idling	0.7-1.0V

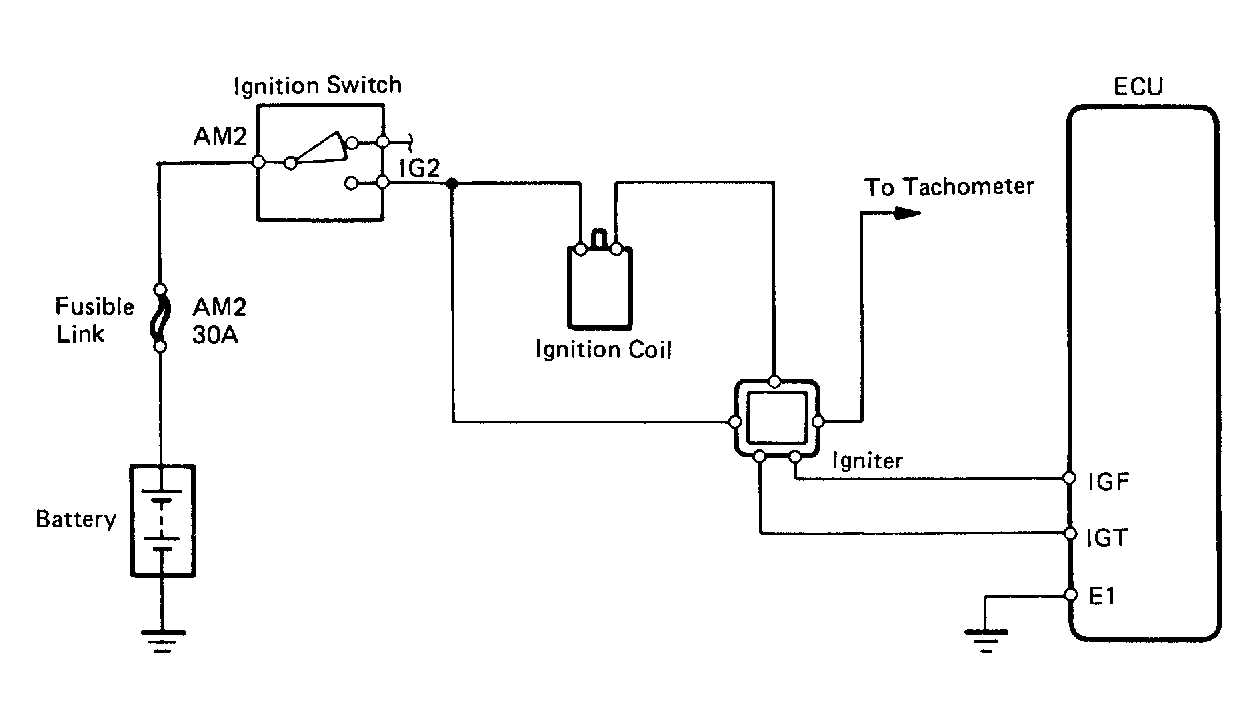

Fig 1: Code 14/Test No. 3 Schematic (4A-FE) RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

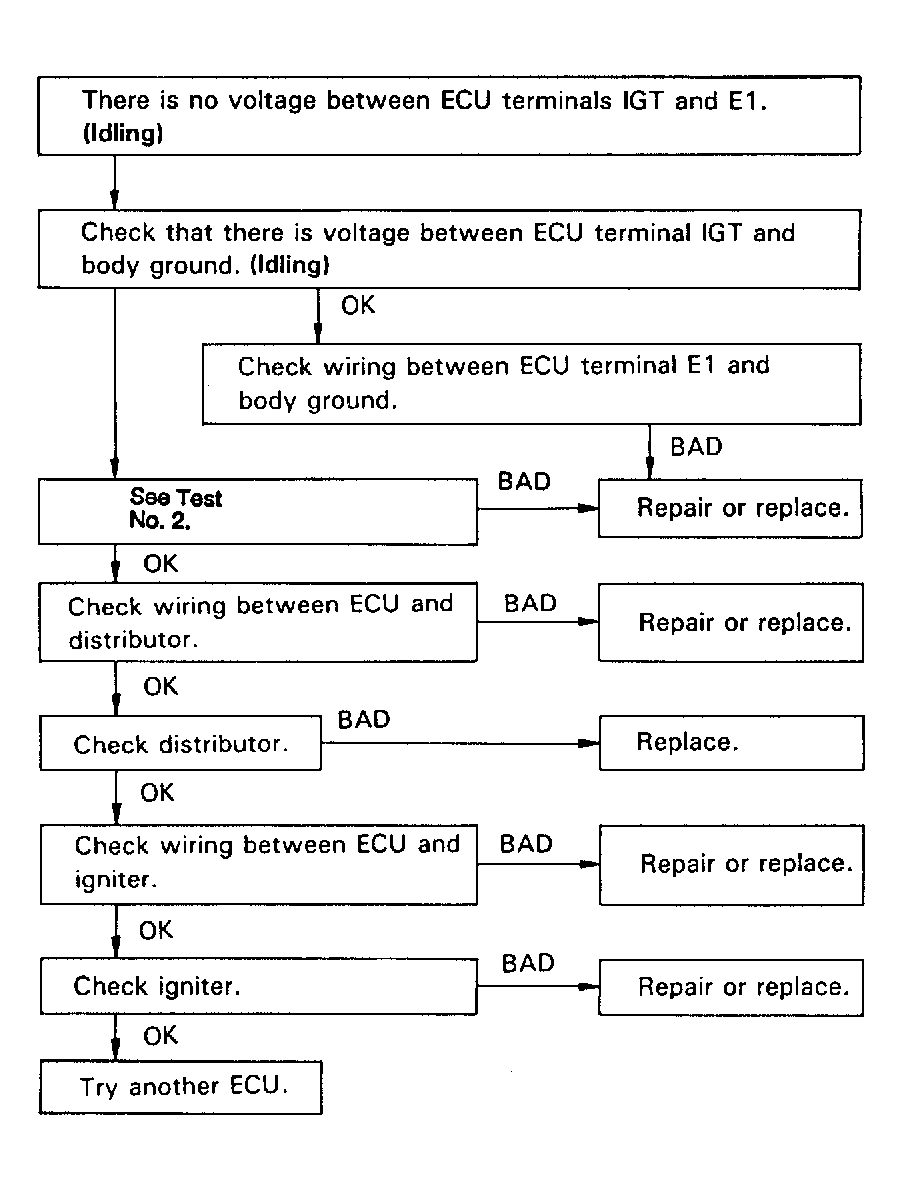

Fig 2: Code /Test No. Flow Chart (4A-FE) RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 14/Test No. 3 Schematic (4A-GE) RPM Signal

Fig 4: Code 14/Test No. 3 Flow Chart (4A-GE) RPM Signal
