Code 24/Test No. 6 - Intake Air Temperature Sensor

CODE 24/TEST NO. 6-IAT SENSOR TROUBLE

Terminal	Trouble	Condition	STD Voltage
THA-E2	No Voltage	IG SW ON - Int. Air Temp. 20°C(68°F)	2.0-2.5V

CODE 24/TEST NO. 6-IAT SENSOR TROUBLE

Terminal	Trouble	Condition	STD Voltage
THA-E2	No Voltage	IG SW ON - Int. Air Temp. 20°C(68°F)	0.1-1.0V

Fig 1: Code 24/Test No. 6 Schematic (4A-FE) Intake Air Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

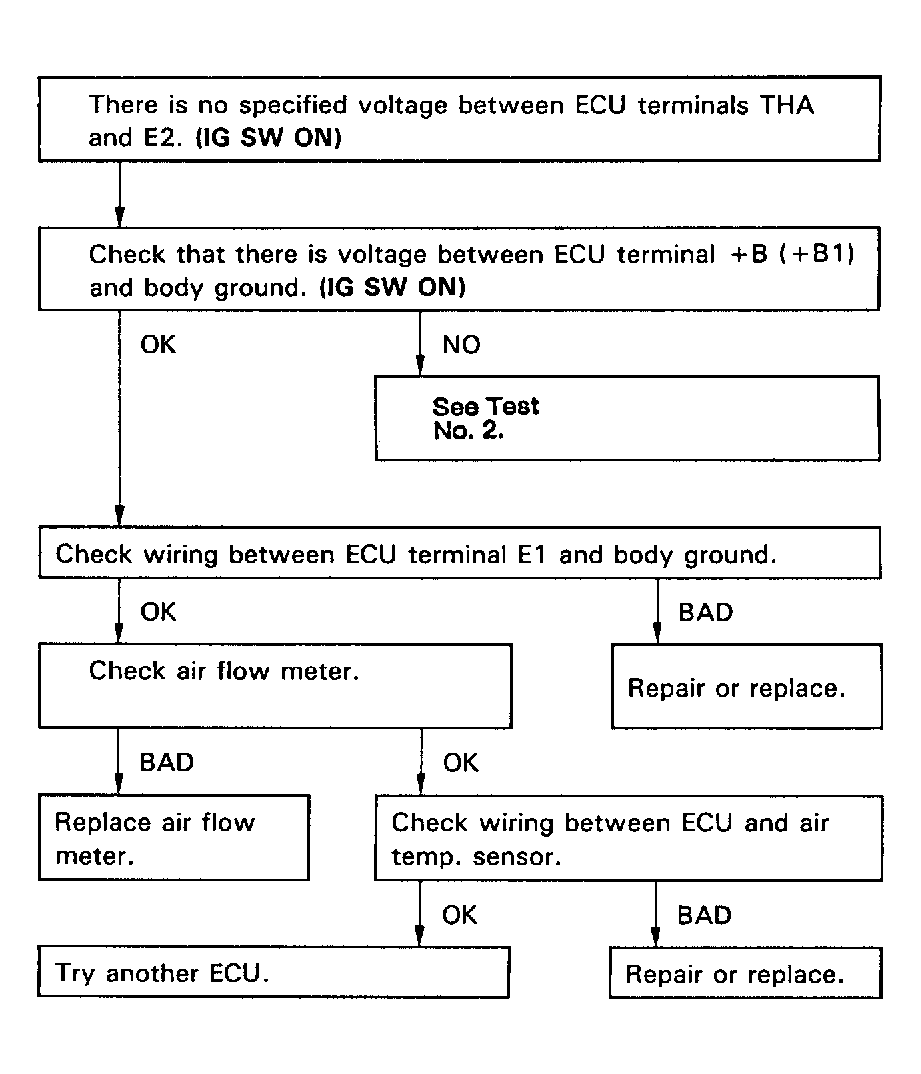

Fig 2: Code 24/Test No. 6 Flow Chart (4A-FE) Intake Air Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 24/Test No. 6 Schematic (4A-GE) Intake Air Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Code 24/Test No. 6 Flow Chart (4A-GE) Intake Air Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
