Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

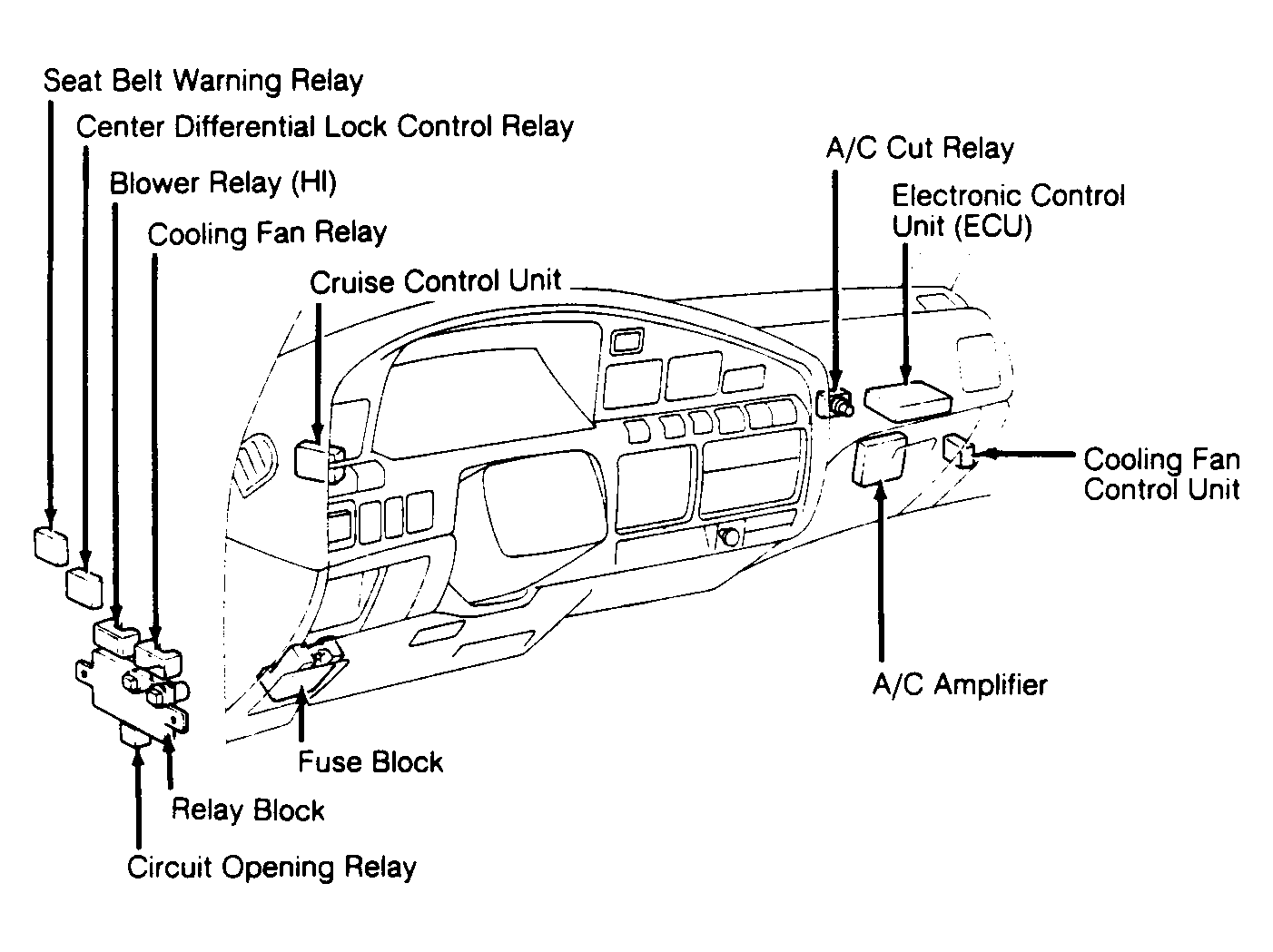

| Fuse Block |
Under left side of dash. See Figure. |

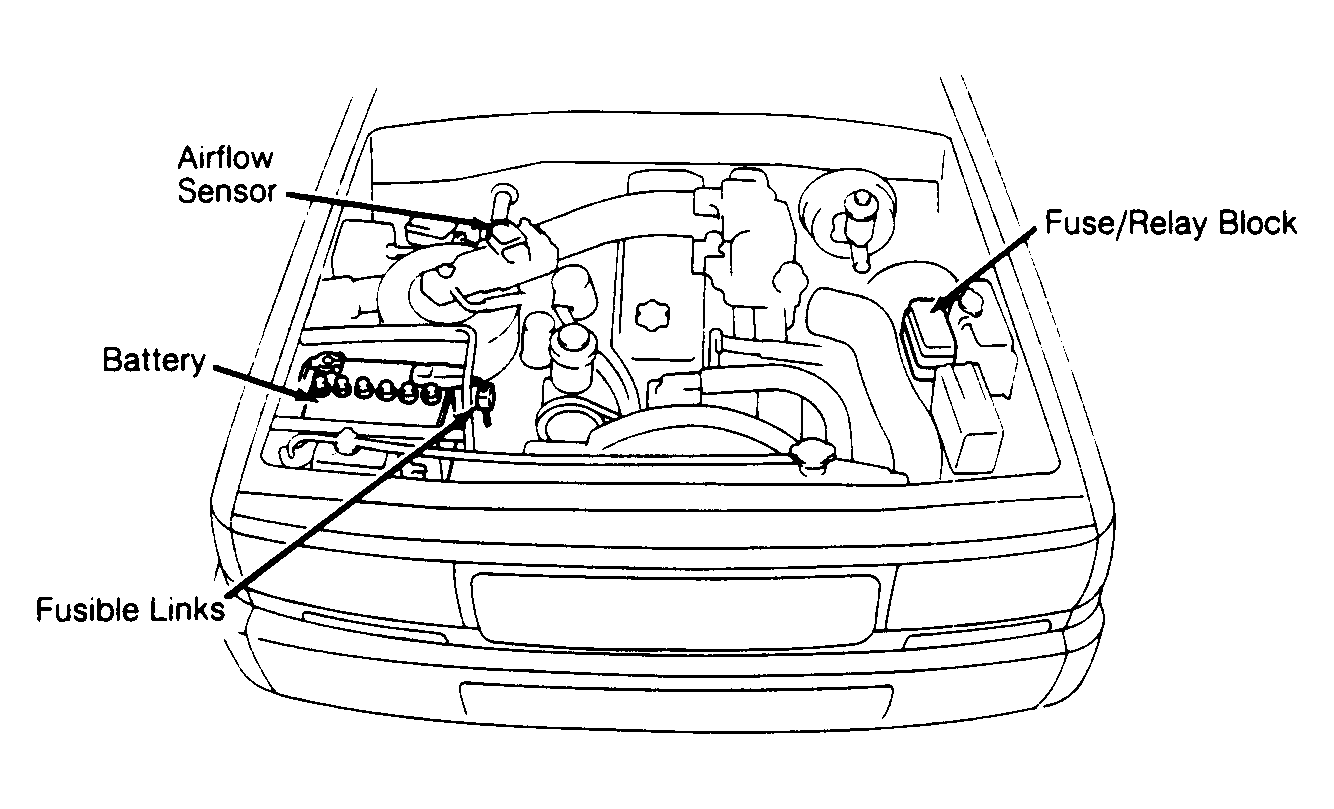

| Fuse/Relay Block |
On left inner fender panel. See Figure, Figure & Figure
. |
| Fusible Links |
By battery positive terminal. See Figure. |
| Relay Block |
On left kick panel. See Figure & Figure
. |
