Test No. 10 - Cold Start Injector Circuit

TEST NO. 10-COLD START INJECTOR CIRCUIT TROUBLE

Terminal Trouble Condition STD Voltage
STJ-E1 No Voltage Ignition Switch In Start Position Coolant Temp. 80°C(176°F) 6 - 12V
Fig 1: Test No. 10 Schematic Cold Start Injector Circuit
G91H18074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

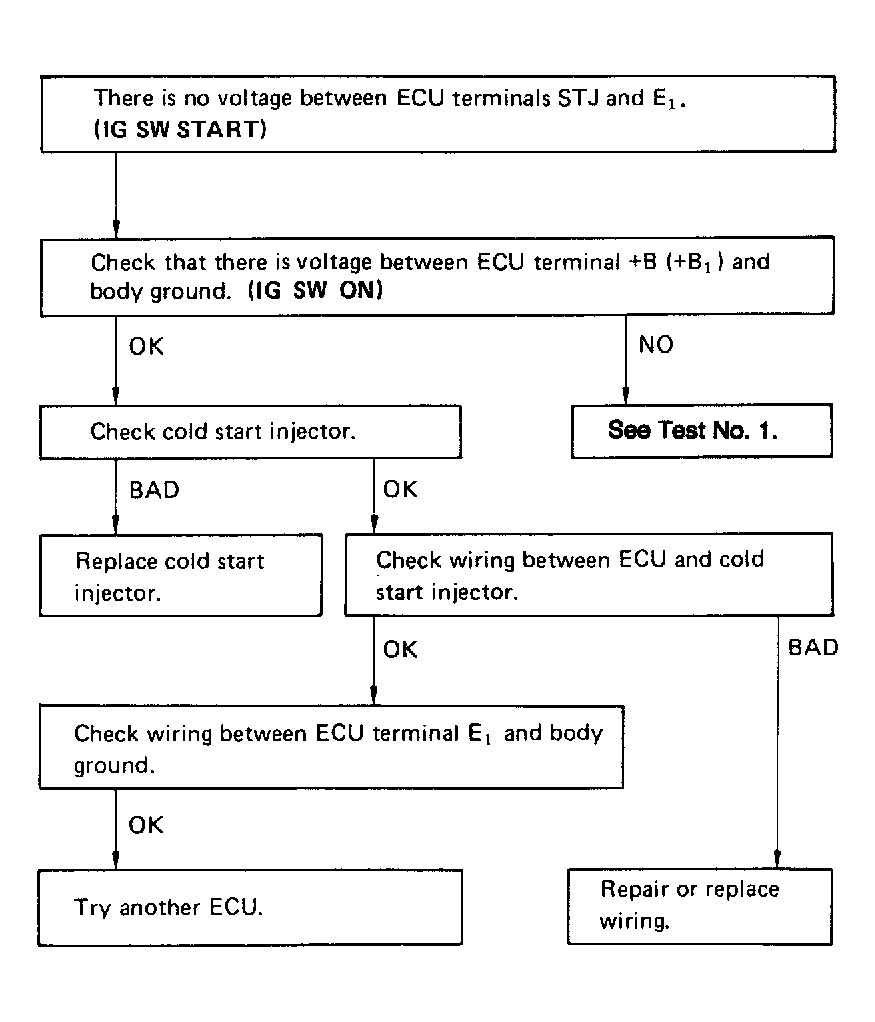

Fig 2: Test No. 10 Flow Chart Cold Start Injector Circuit
G91I18075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
