Ignition Timing
IGNITION TIMING
Application
Base Timing
(1)
Advance Timing
Previa
5 @ Idle
12 @ Idle
(1)
With check connector terminals TE1 and E1 jumpered.

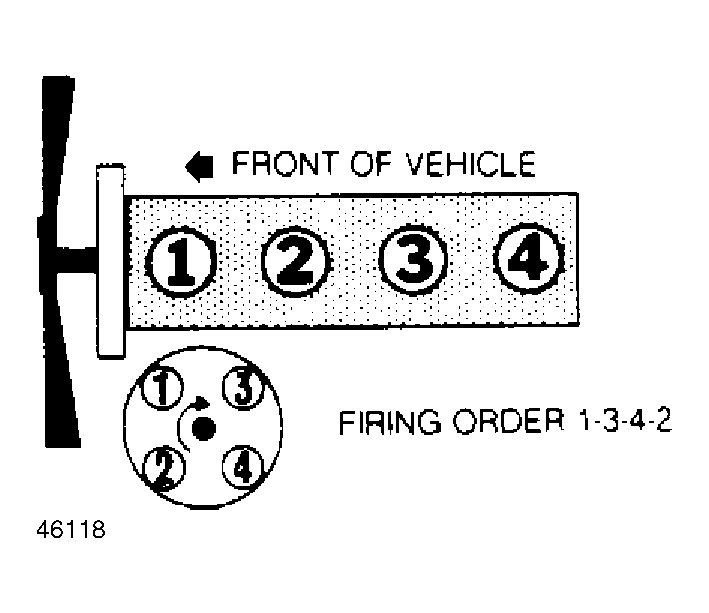

Fig 1: Firing Order & Distributor Rotation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
