Code 14/Test No. 3 - Ignition Signal

NOTE: To check ignition system components, see I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.

CODE 14/TEST NO. 3-IGNITION SIGNAL TROUBLE (3S-GTE)

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.7 - 1.0V

CODE 14/TEST NO. 3-IGNITION SIGNAL TROUBLE (4A-FE)

Terminals	Trouble	Condition	STD Voltage
IGT - E1	No Voltage	Idling	0.8 - 1.2V

CODE 14/TEST NO. 3-IGNITION SIGNAL TROUBLE (5S-FE)

NO.	Terminals	Trouble	Condition	STD Voltage
9	IGT - E1	No Voltage	Idling	0.8 - 1.2V

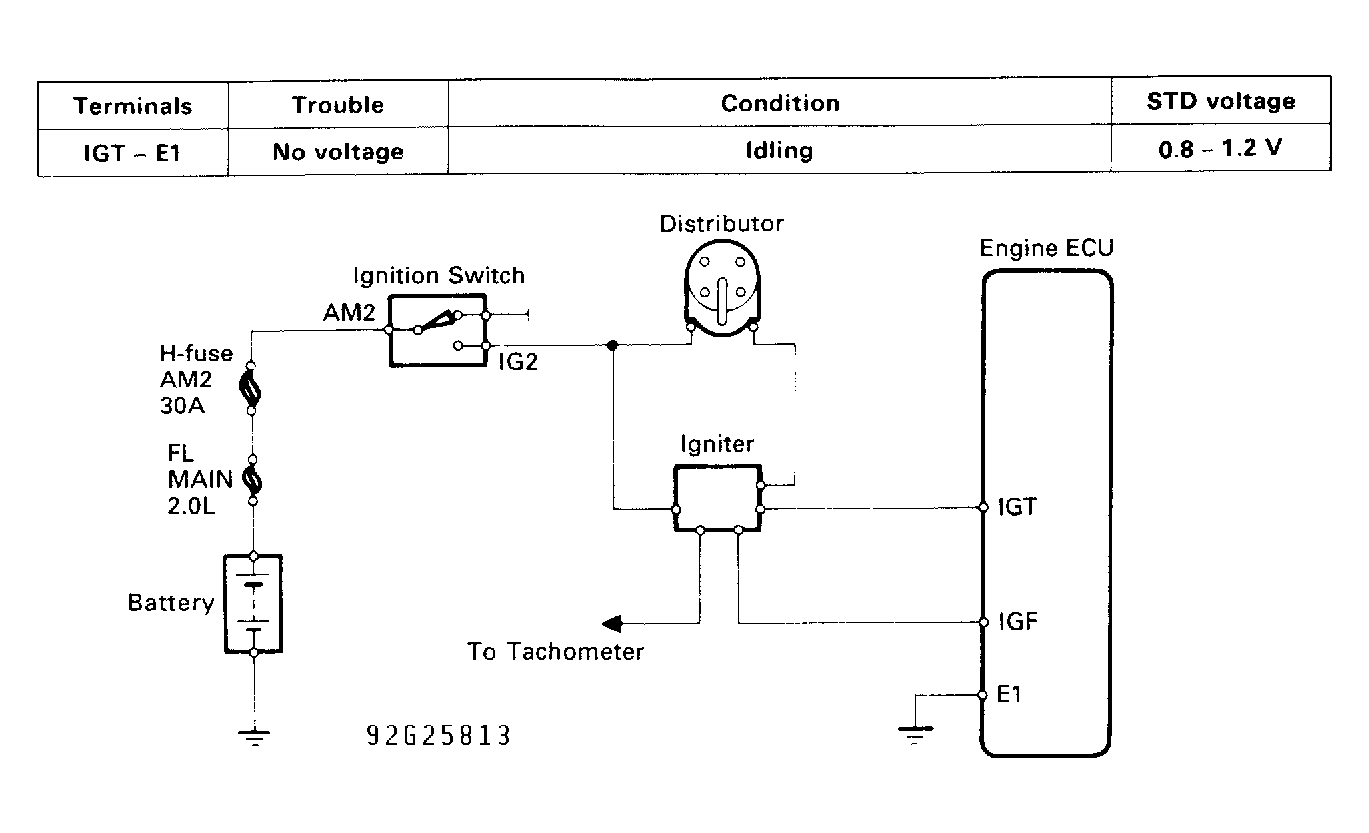

Fig 1: Code 14/Test No. 3 Schematic (3S-GTE & 5S-FE) Ignition Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

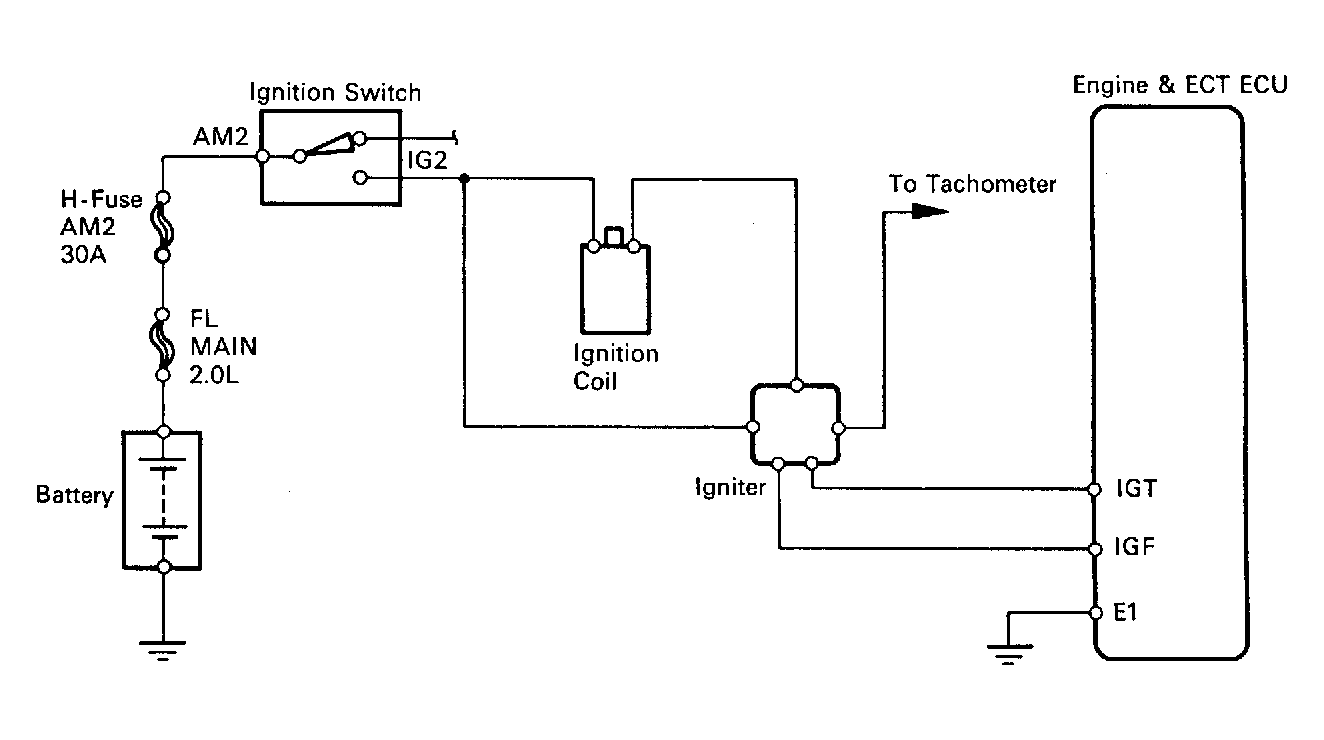

Fig 2: Code 14/Test No. 3 Schematic (4A-FE) Ignition Signal

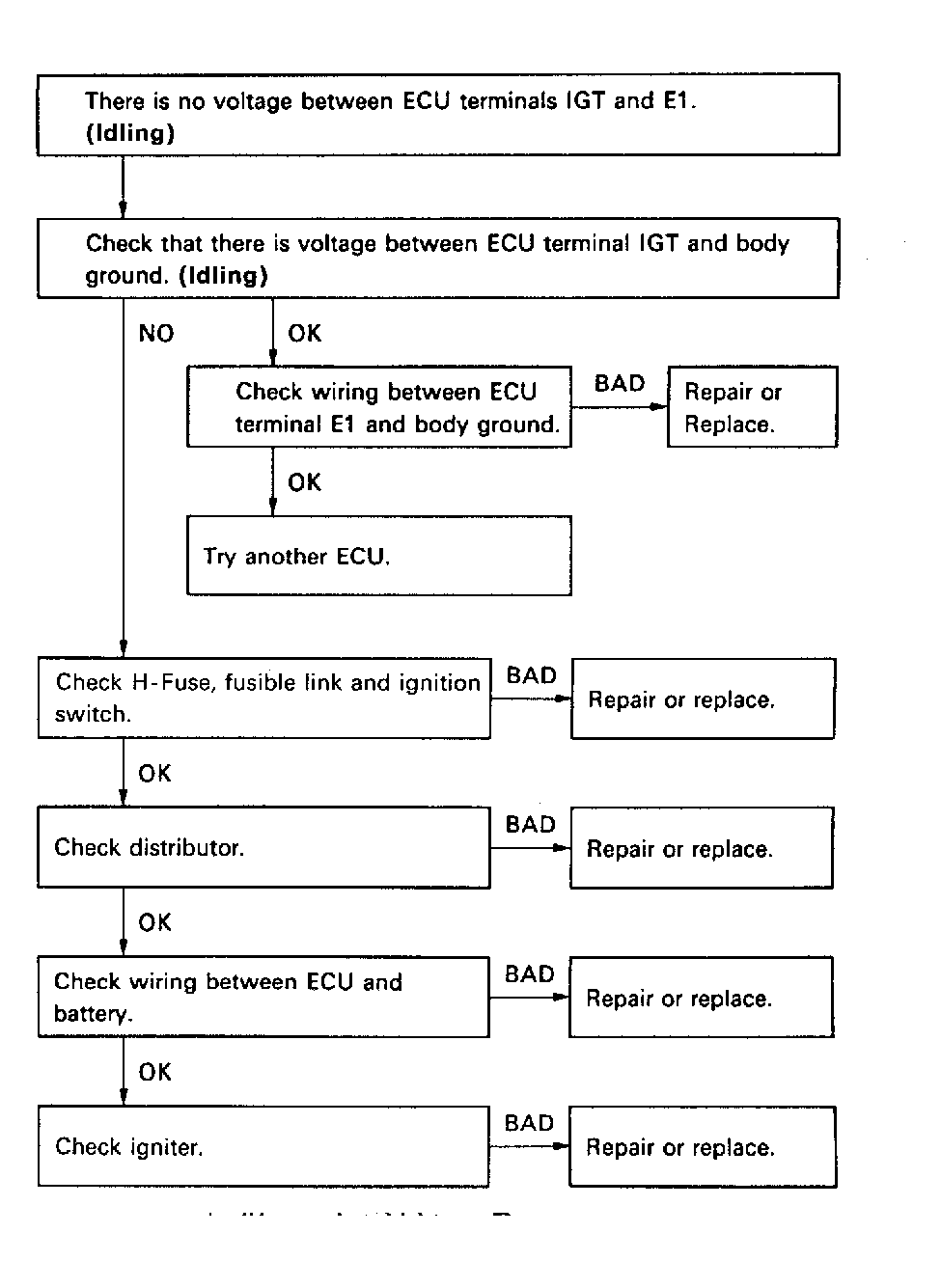

Fig 3: Code 14/Test No. 3 Flow Chart (All Engines) Ignition Signal

Fig 4: Code 14/Test No. 3 Schematic (5S-FE) Ignition Signal
