Trouble Shooting

First, select the applicable item in the Trouble column of the Trouble Chart. See Fig 1. Then look at the applicable codes in the Check order column.
Using Inspection Chart, inspect the first item shown in the Check order column. See Fig 2.
If the inspection result is no good, inspect the item in the Possible Cause column in Inspection Chart. See Fig 2. After inspecting, check the system operation again. If the result is still no good, inspect the next item.
If all inspection item are good, inspect the applicable item in the Possible Cause column in the Trouble Chart. See Fig 1.

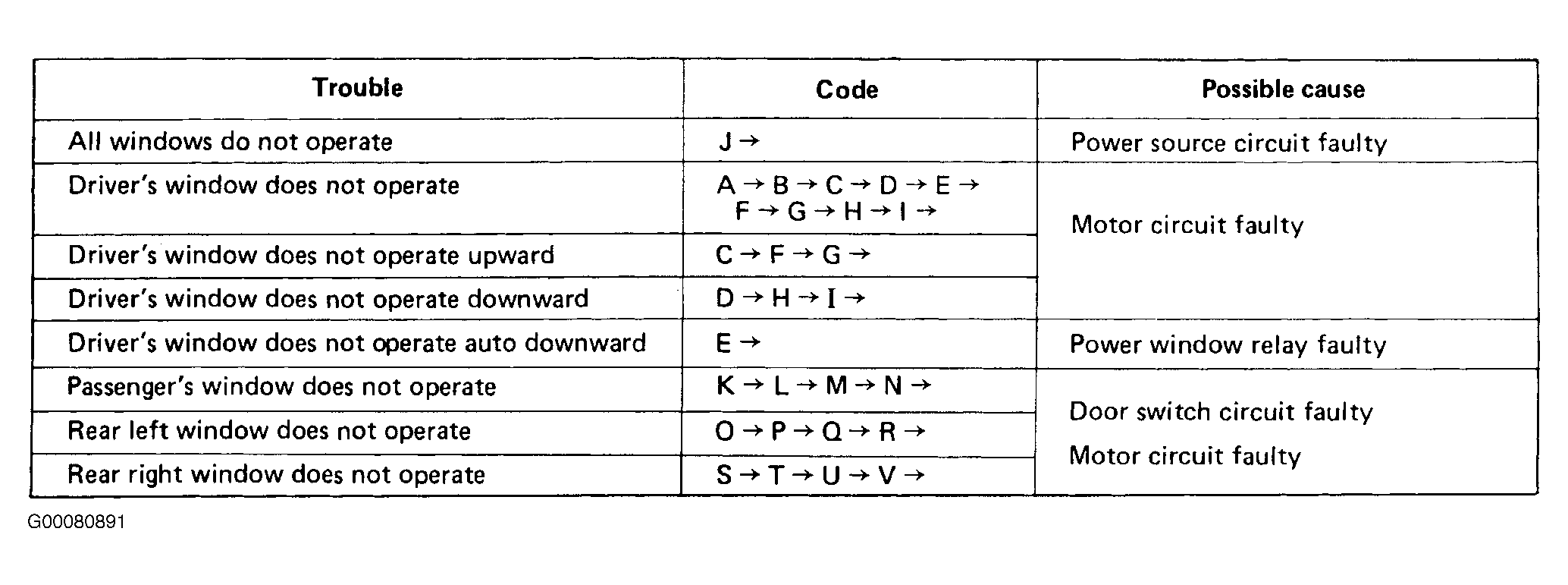

Fig 1: Trouble Chart

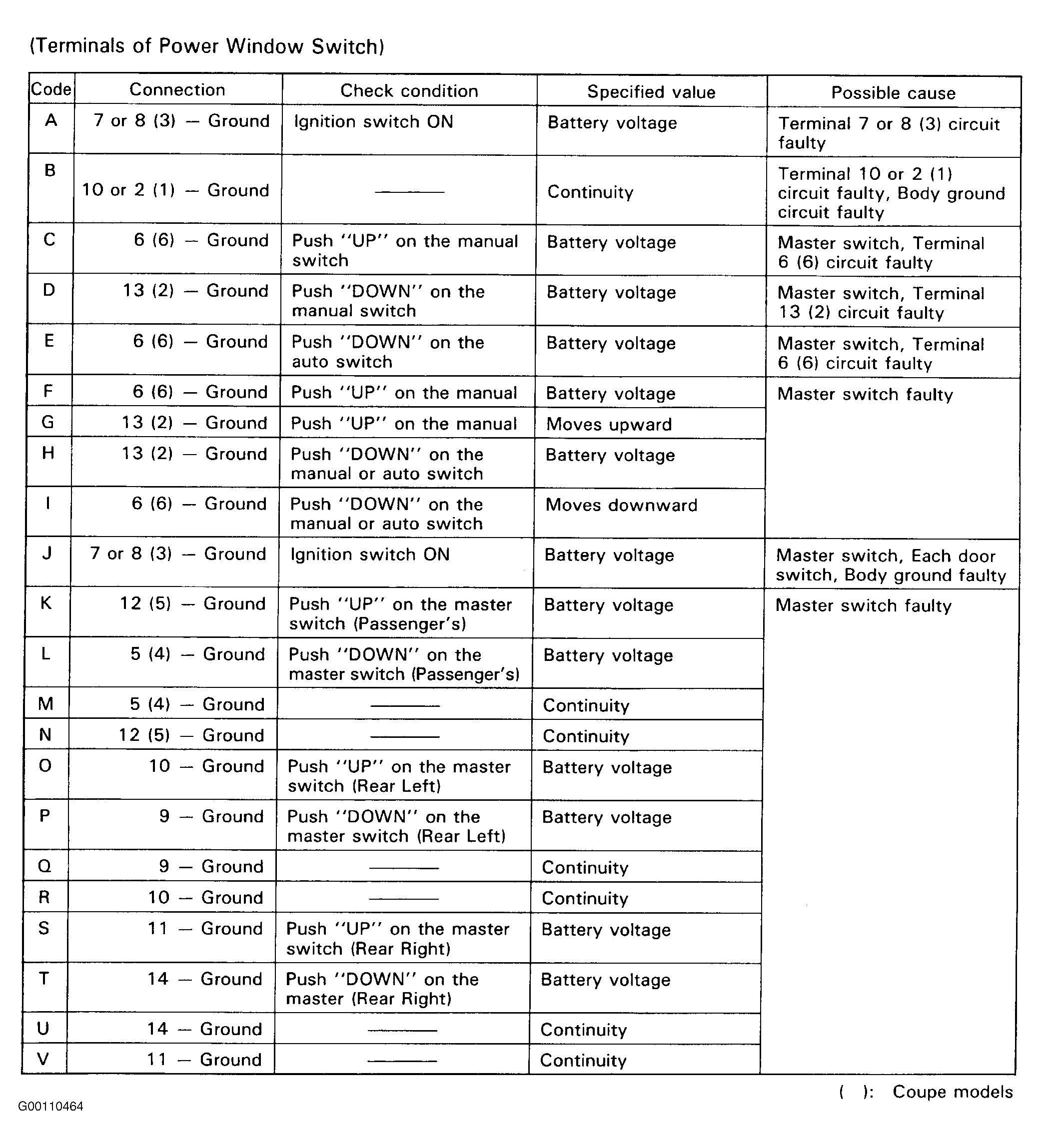

Fig 2: Inspection Chart
