Battery Replacement In Remote Transmitters (AX93-001)
Publication date: 1993-06-04Reference number: AX93-001
BATTERY REPLACEMENT IN REMOTE TRANSMITTERS
TECHNICAL SERVICE BULLETIN
Reference Number(s): AX93-001, Date of Issue:
June 4, 1993
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
BATTERY REPLACEMENT IN REMOTE TRANSMITTERS
Model(s): 1990-93 Toyota Corolla, Cressida, Supra, Tercel
1991-93 Toyota MR2, Previa
1992-93 Toyota Paseo
Reference: Accessories
Bulletin No.: AX93-001
Date: June 4, 1993
SERVICE INFORMATION
Some vehicles equipped with the Toyota Vehicle Security System (TVSS) may experience an inoperative remote transmitter due to the battery being run down.

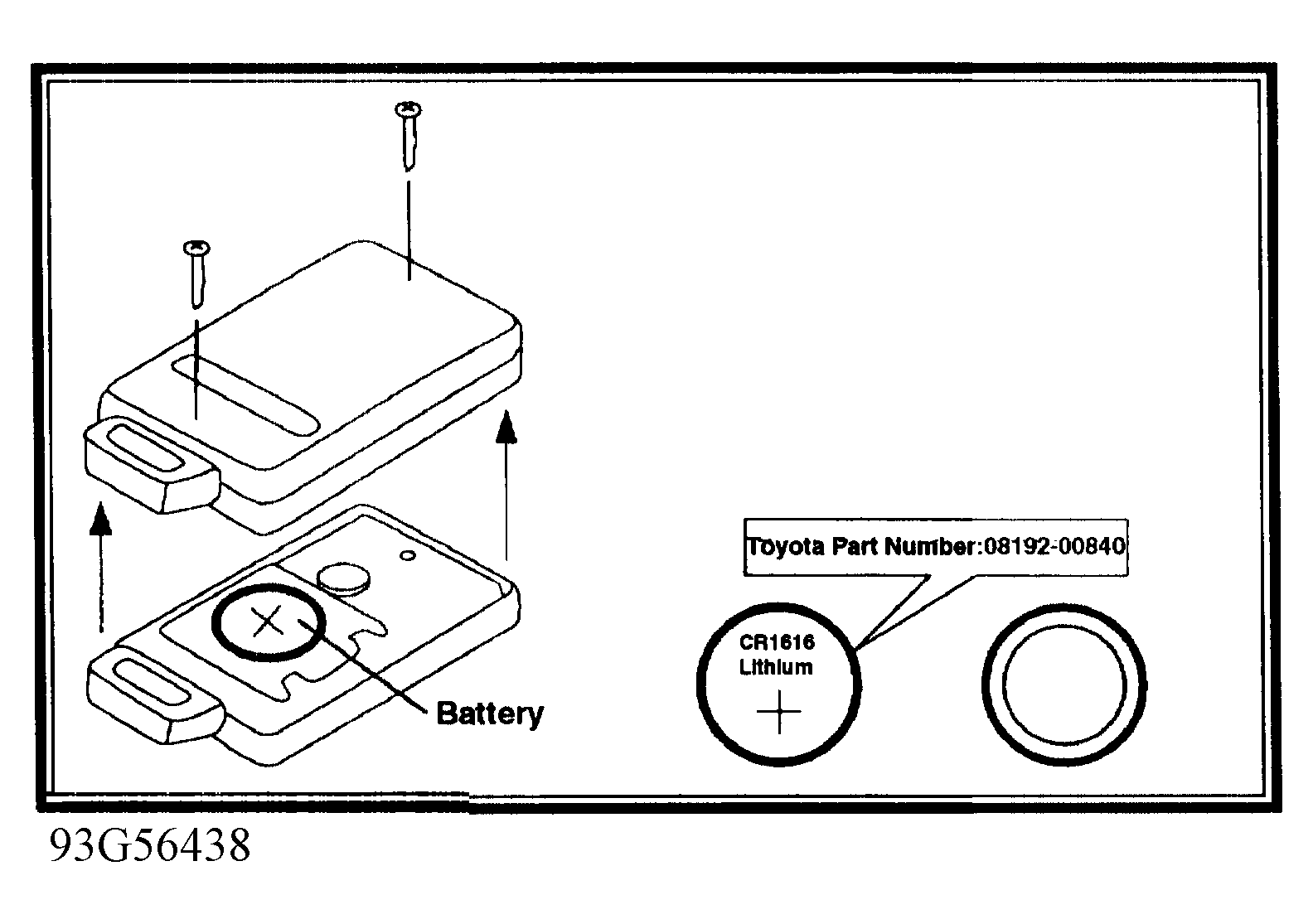

The remote transmitter battery may be replaced as follows: (see Fig 1).
- Remove the two screws on the back of the remote transmitter.
- Remove the old battery.
- Correctly place the new battery in the remote transmitter, positive side up.
- Re-install the screws.
PARTS INFORMATION
| Part Description | Part Number |
|---|---|
| Remote Transmitter | 00398-00923 |
| Battery | 08192-00840 |
