Speed Sensor

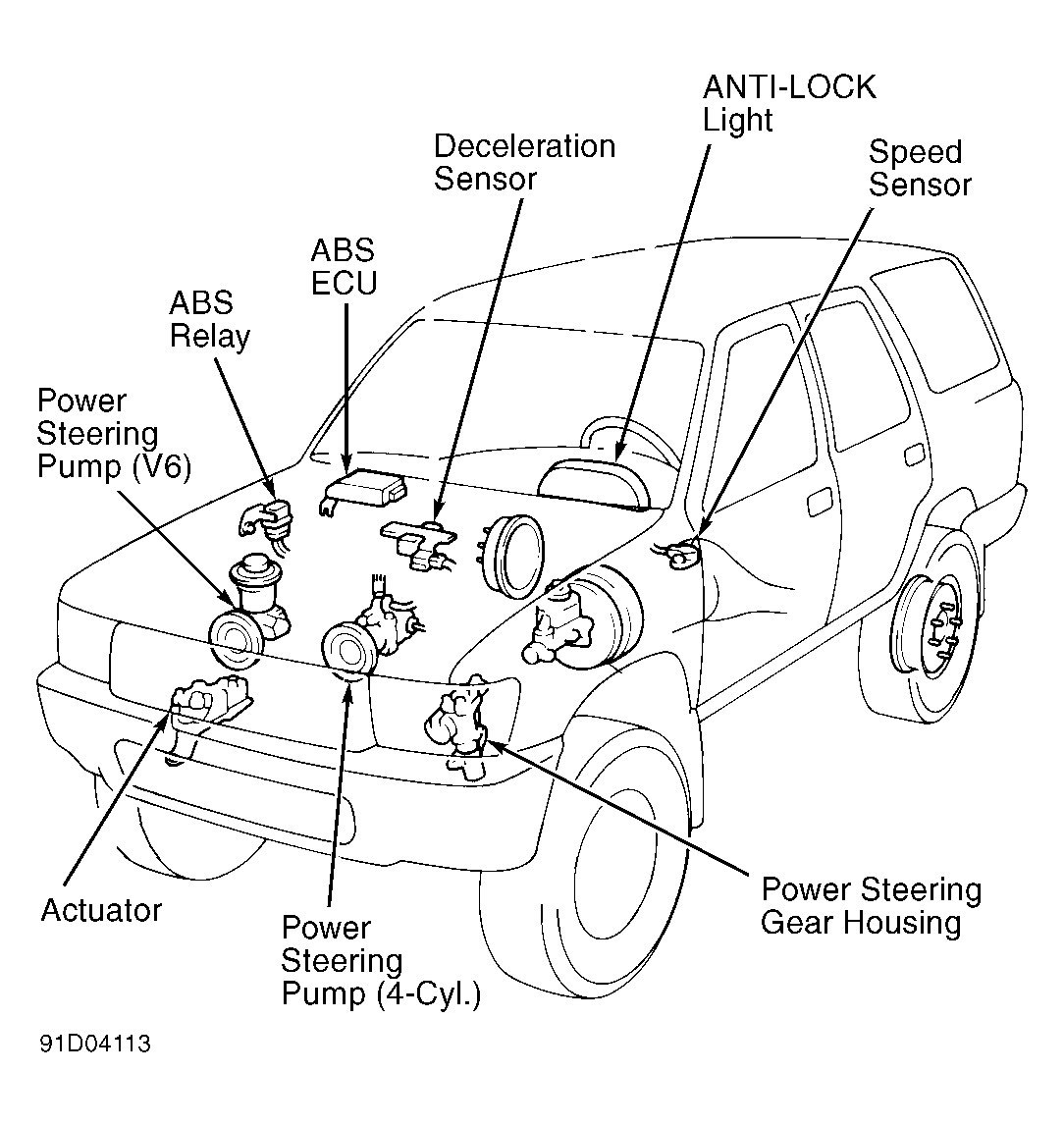

Disconnect speed sensor connector. See Figure or Figure . Using a DVOM, measure resistance between speed sensor terminals. Resistance should be 580-700 ohms. Ensure continuity is not present between each sensor terminal and sensor body. If resistance and continuity readings are not as specified, replace speed sensor.
