Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breakers

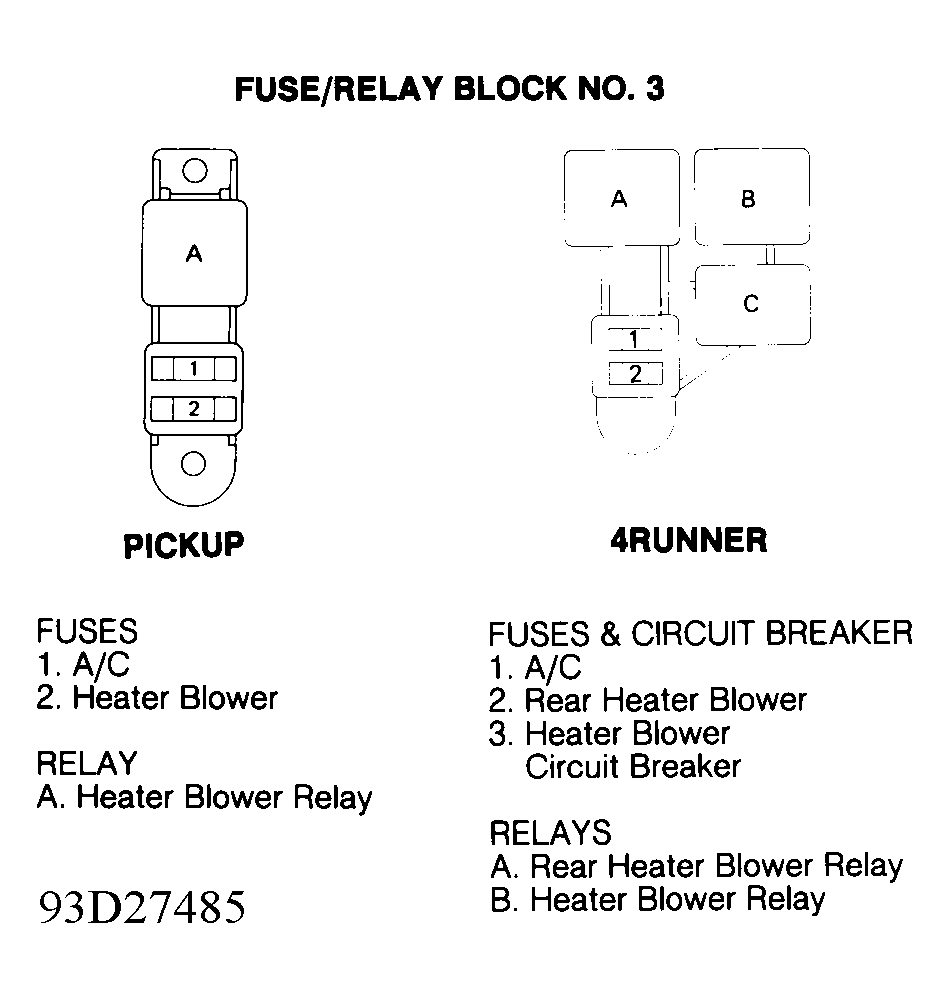

Front Heater Blower In fuse/relay block No. 3. See Figure.

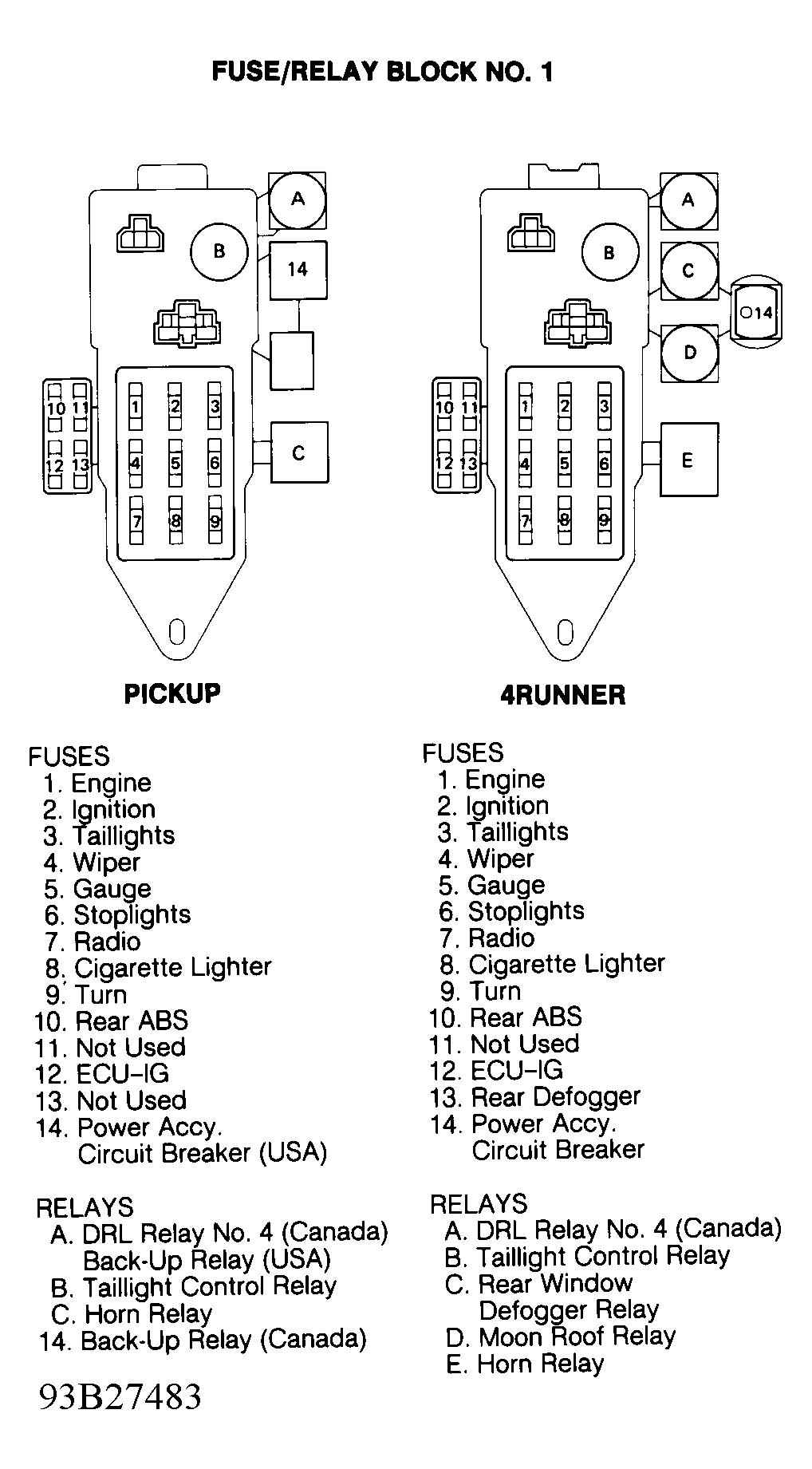

Power (Accy.) In fuse/relay block No. 1. See Figure.
Fuse/Relay Blocks

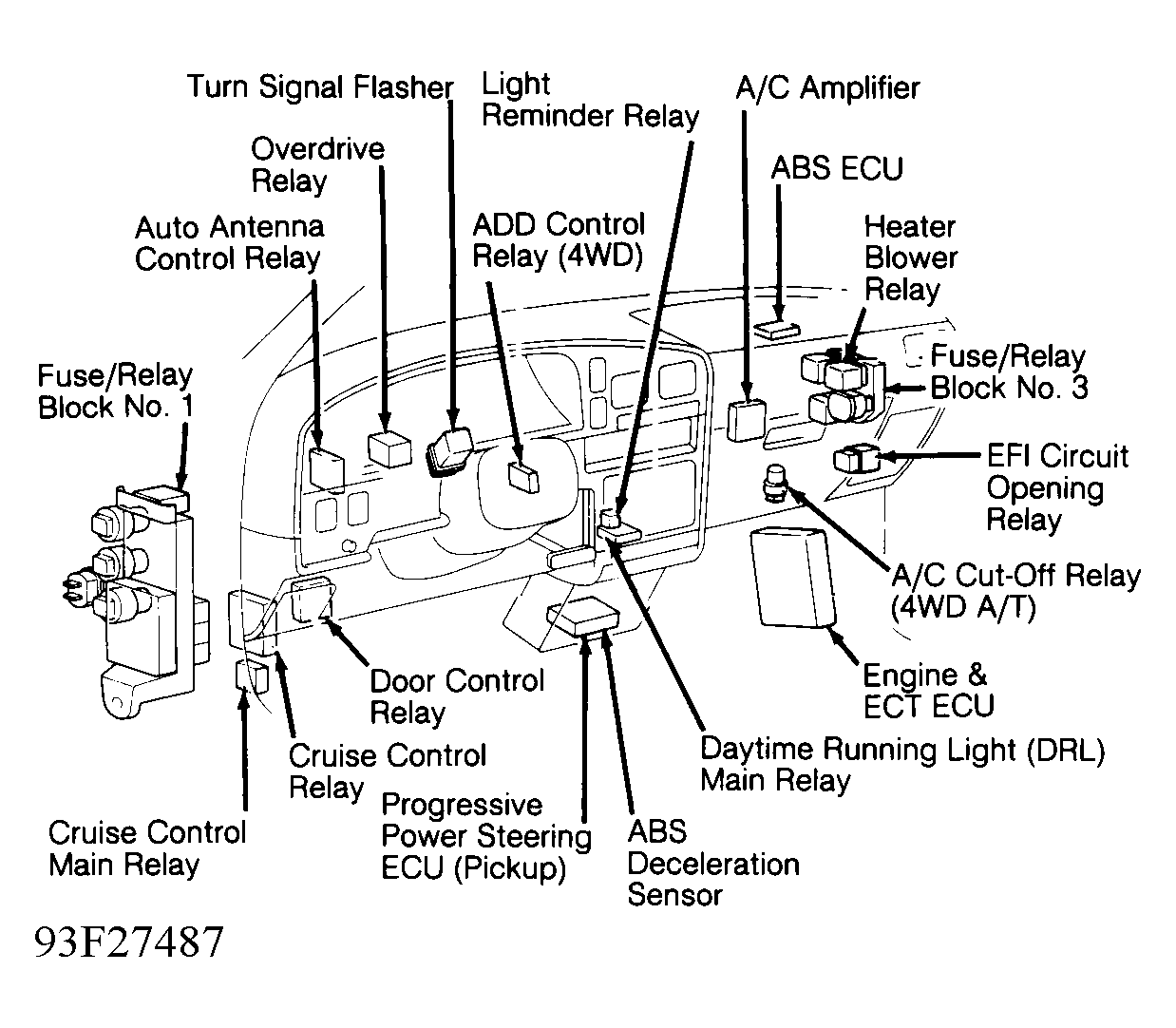

No. 1 Behind left kick panel. See Figure, Figure & Figure .

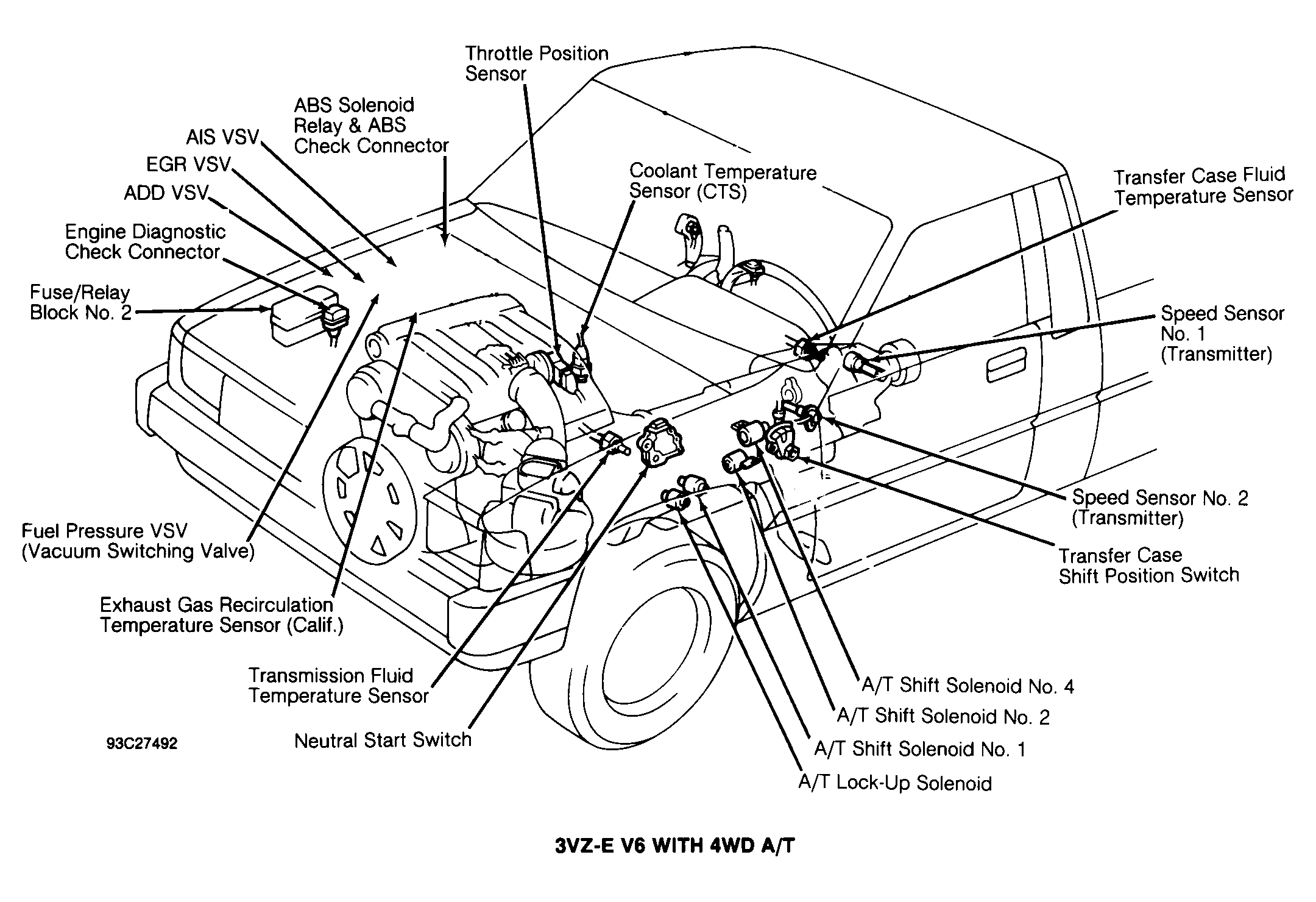

No. 2 On right front of engine compartment, behind battery. See Figure, Figure & Figure .
No. 3 Above right side of glove box. See Figure, Figure & Figure .
No. 4 (4Runner) On right front of engine compartment, behind battery. See Figure & Figure .

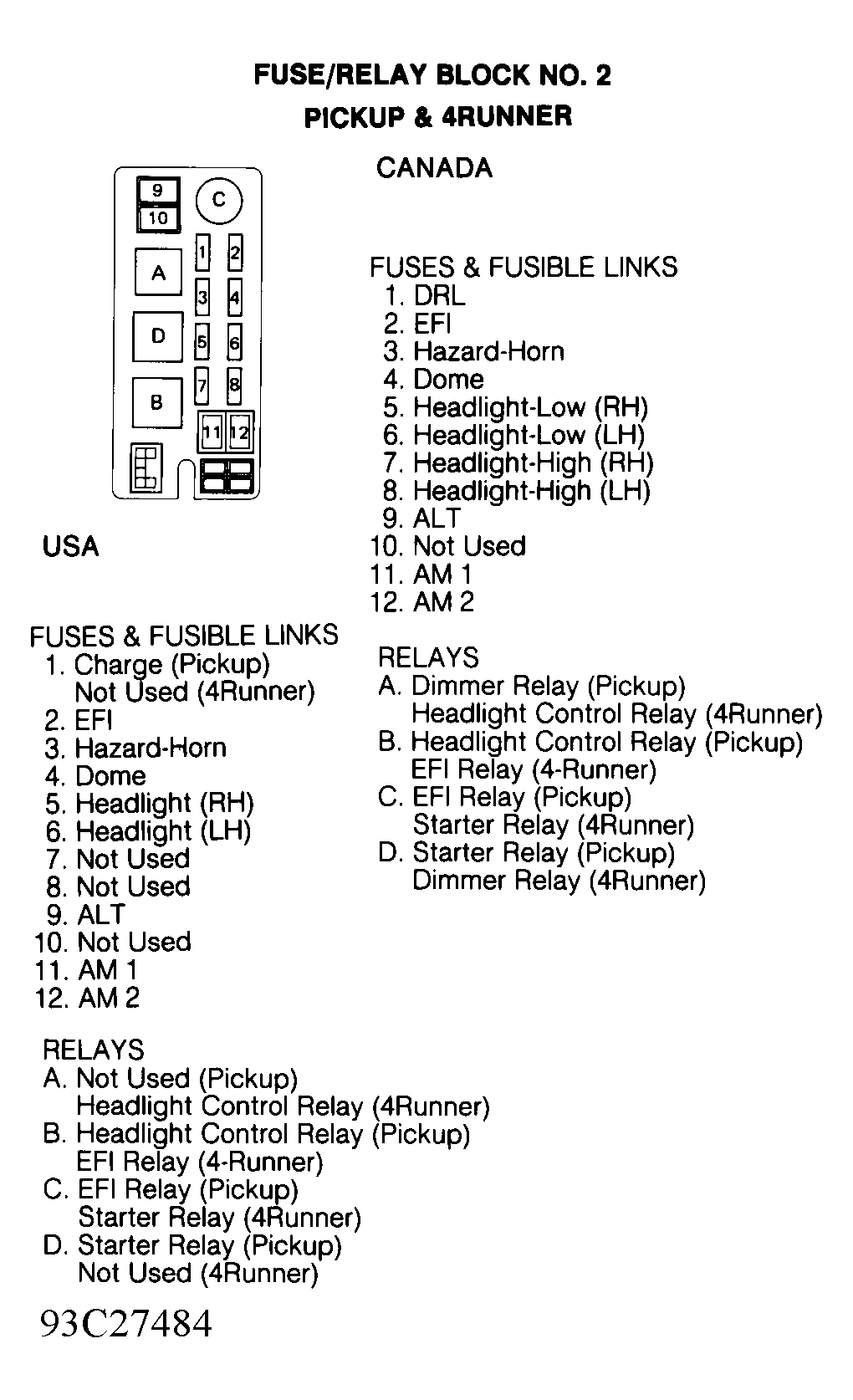

Fusible Links (ALT, AM1 Or AM2) In fuse/relay block No. 2. See Figure.
Main Fusible Link On positive battery cable. See Figure.
