Ignition Coil Resistance

Disconnect wiring from ignition coil so ignition coil is isolated from system. Using ohmmeter, check primary resistance between ignition coil positive (+) and negative (-) terminals. See Fig 1, Fig 2 or Fig 3.
Check secondary resistance between ignition coil positive (+) terminal and high tension wire terminal (coil wire tower). See Fig 4, Fig 5 or Fig 6. Replace ignition coil if resistance is not within specification. See appropriate IGNITION COIL RESISTANCE table.

IGNITION COIL RESISTANCE (4-CYLINDER) - Ohms @ 68°F (20°C)

Fig 1: Checking Ignition Coil Primary Resistance (1.6L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

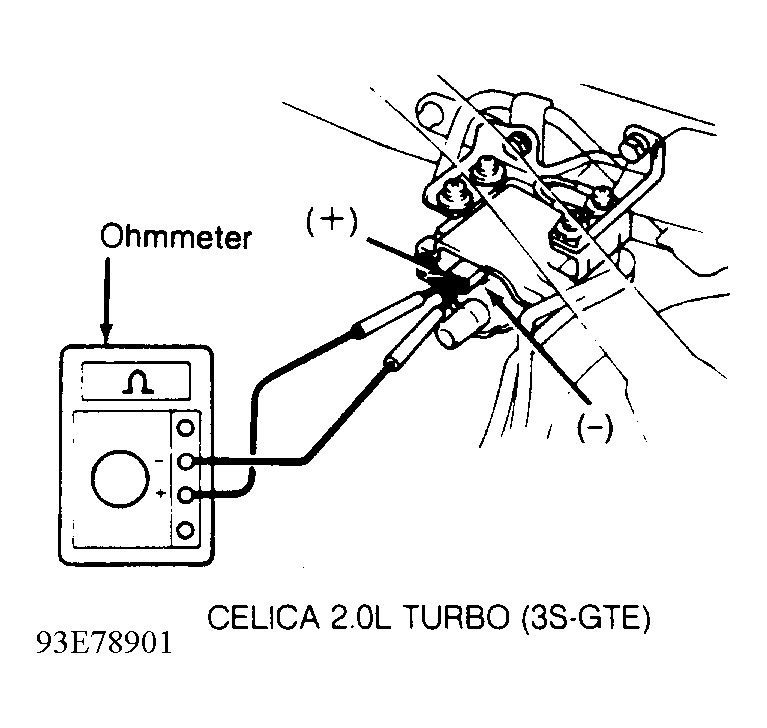

Fig 2: Checking Ignition Coil Primary Resistance (2.0L Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

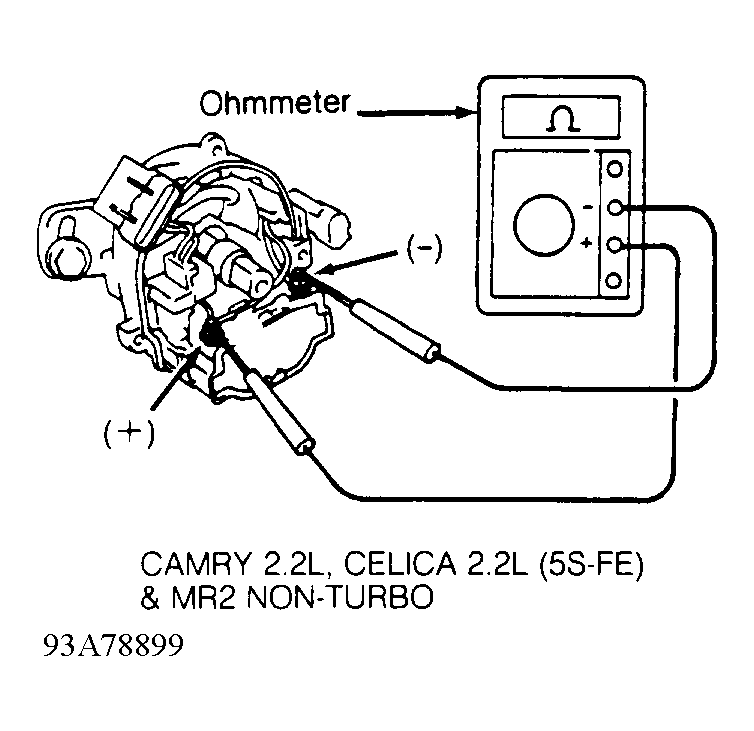

Fig 3: Checking Ignition Coil Primary Resistance (2.2L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Checking Ignition Coil Secondary Resistance (1.6L)

Fig 5: Checking Ignition Coil Secondary Resistance (2.0L Turbo)

Fig 6: Checking Ignition Coil Secondary Resistance (2.2L)
