PREVIA Diagnostic Circuit Check

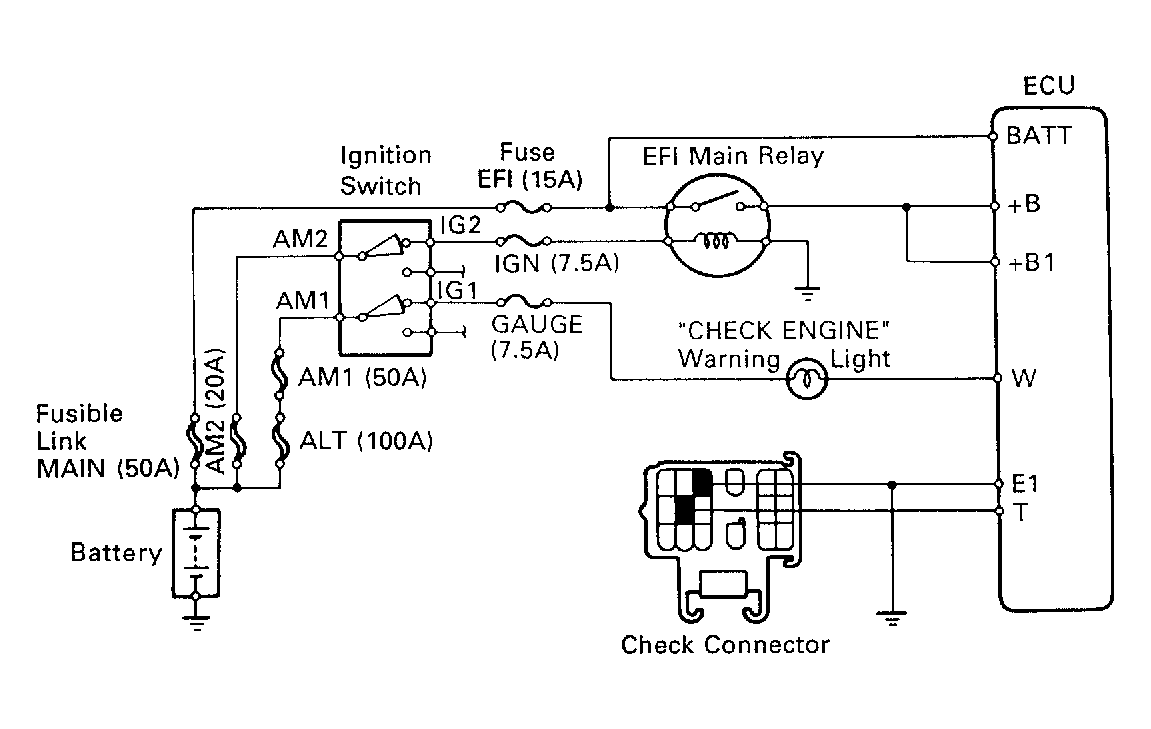

Fig 1: Diagnostic Circuit Check Schematic
G91J18092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Diagnostic Circuit Check Flow Chart
G91C17709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
