Wiring Diagrams: Wiring Diagram

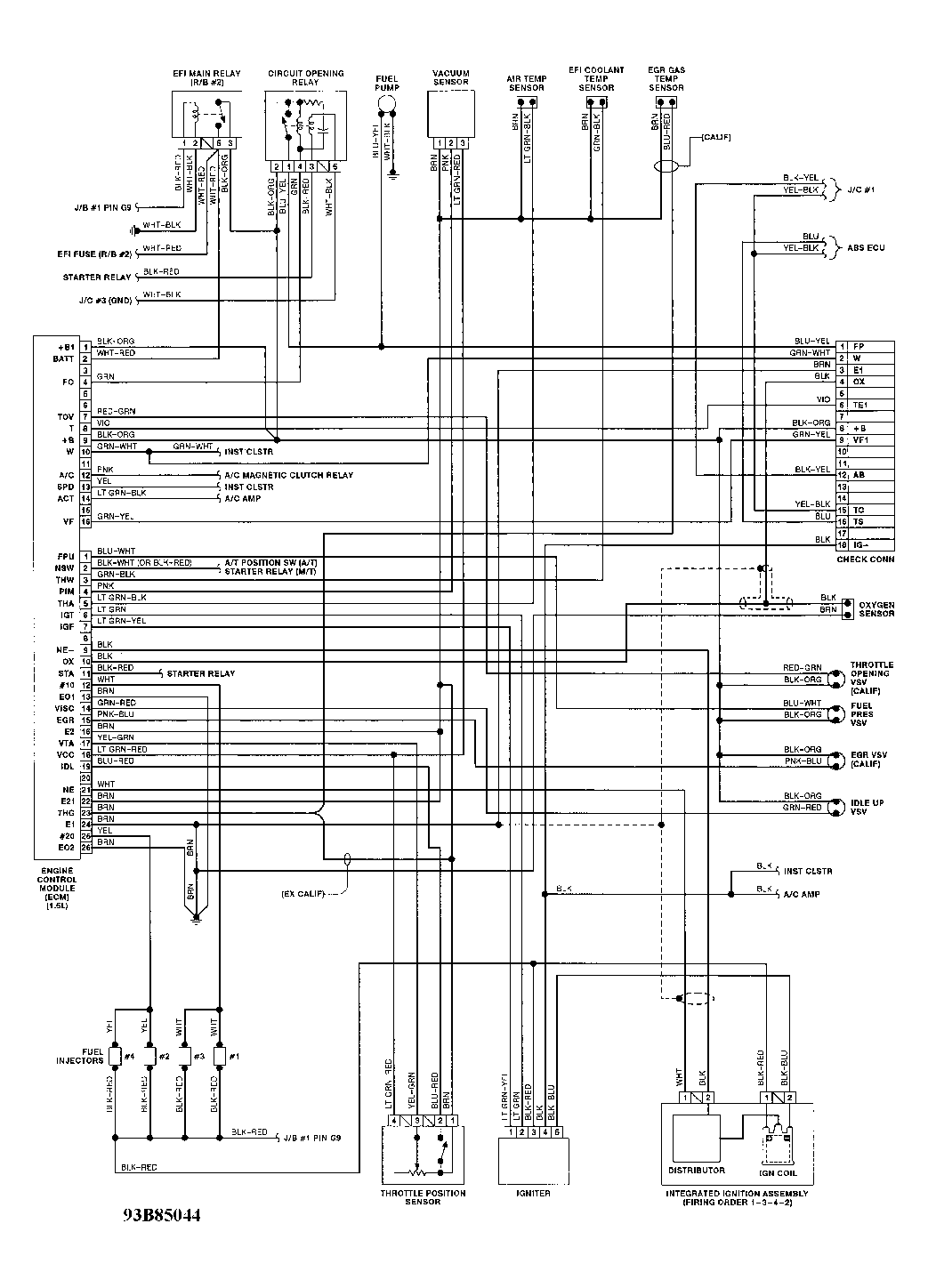

Fig 1: Wiring Diagram (Tercel 1.5L)

G93B85044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
