Pick-Up Coil Air Gap

  1. Using non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1-13.
  2. Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS  table.
PICK-UP COIL AIR GAP SPECIFICATIONS

Application In. (mm)
1.8L (7A-FE) .008-.016 (.20-.40)
2.2L (5S-FE)
Calif. .008-.020 (.20-.51)
Except Calif. .008-.016 (.20-.40)

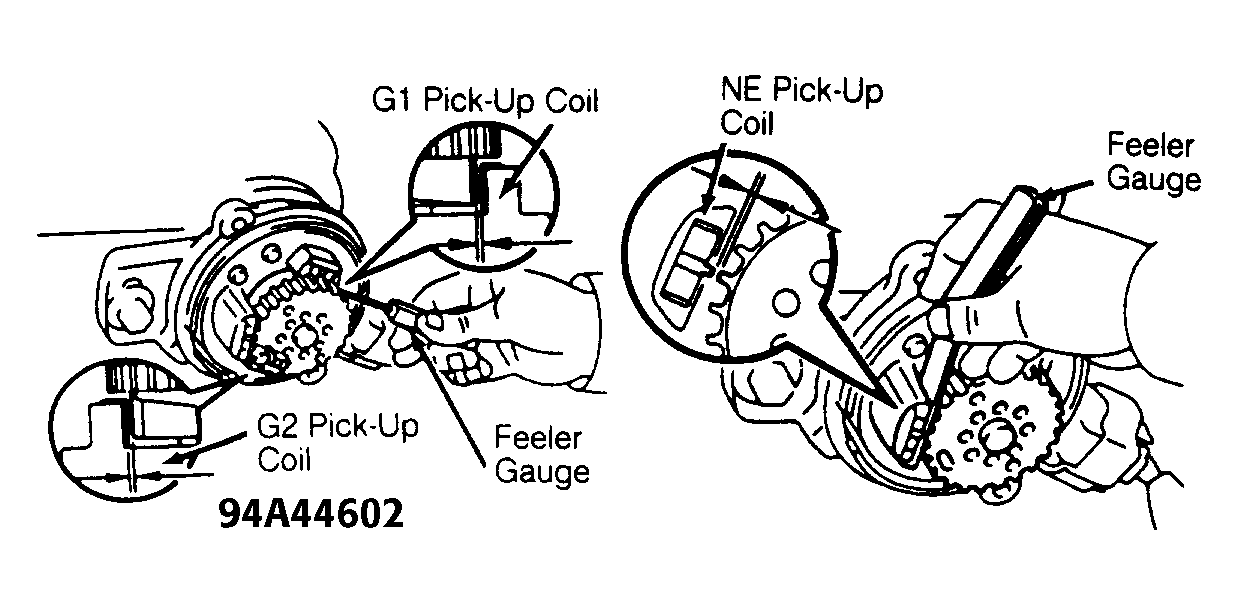

Fig 1: Checking Pick-Up Coil Air Gap (2.2L CA)
G94A44602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

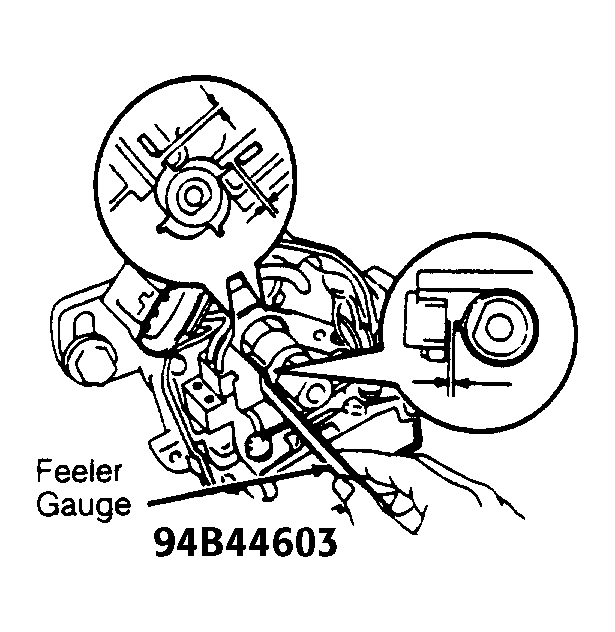

Fig 2: Checking Pick-Up Coil Air Gap (2.2L Ex CA)
G94B44603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Checking Pick-Up Coil Air Gap (1.8L)
G94C44604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
