DTC 14 - Ignition Signal

NOTE: To check ignition system components, see appropriate SYSTEM/COMPONENT TESTS article in the ENGINE PERFORMANCE section.

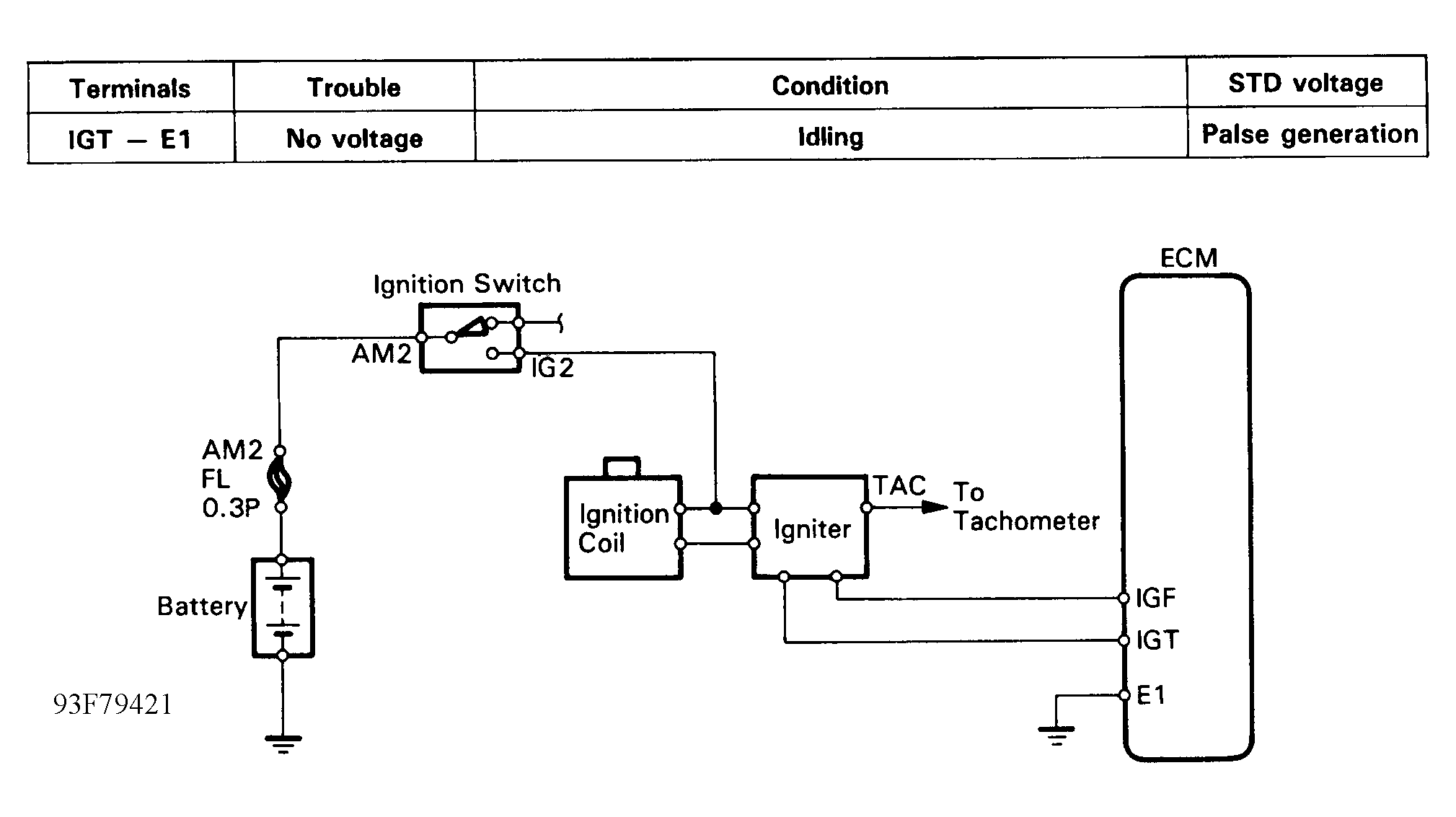

Fig 1: DTC 14 - Schematic
G93F79421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

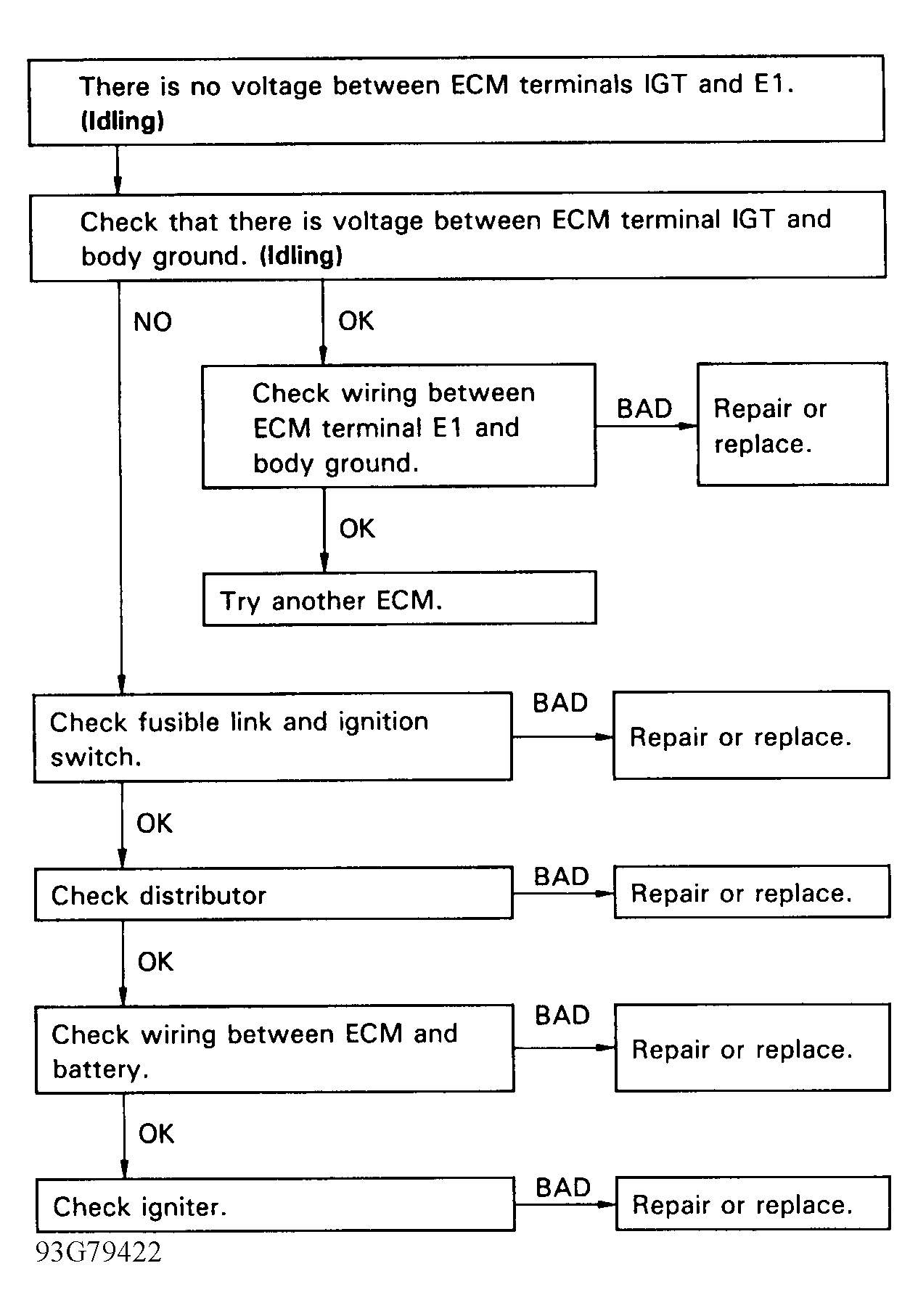

Fig 2: DTC 14 - Diagnostic Flowchart
G93G79422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
