DTC 22 - Engine Coolant Temperature Sensor Signal

NOTE: Coolant temperature sensor is also referred to Engine Coolant Temperature (ECT) sensor.

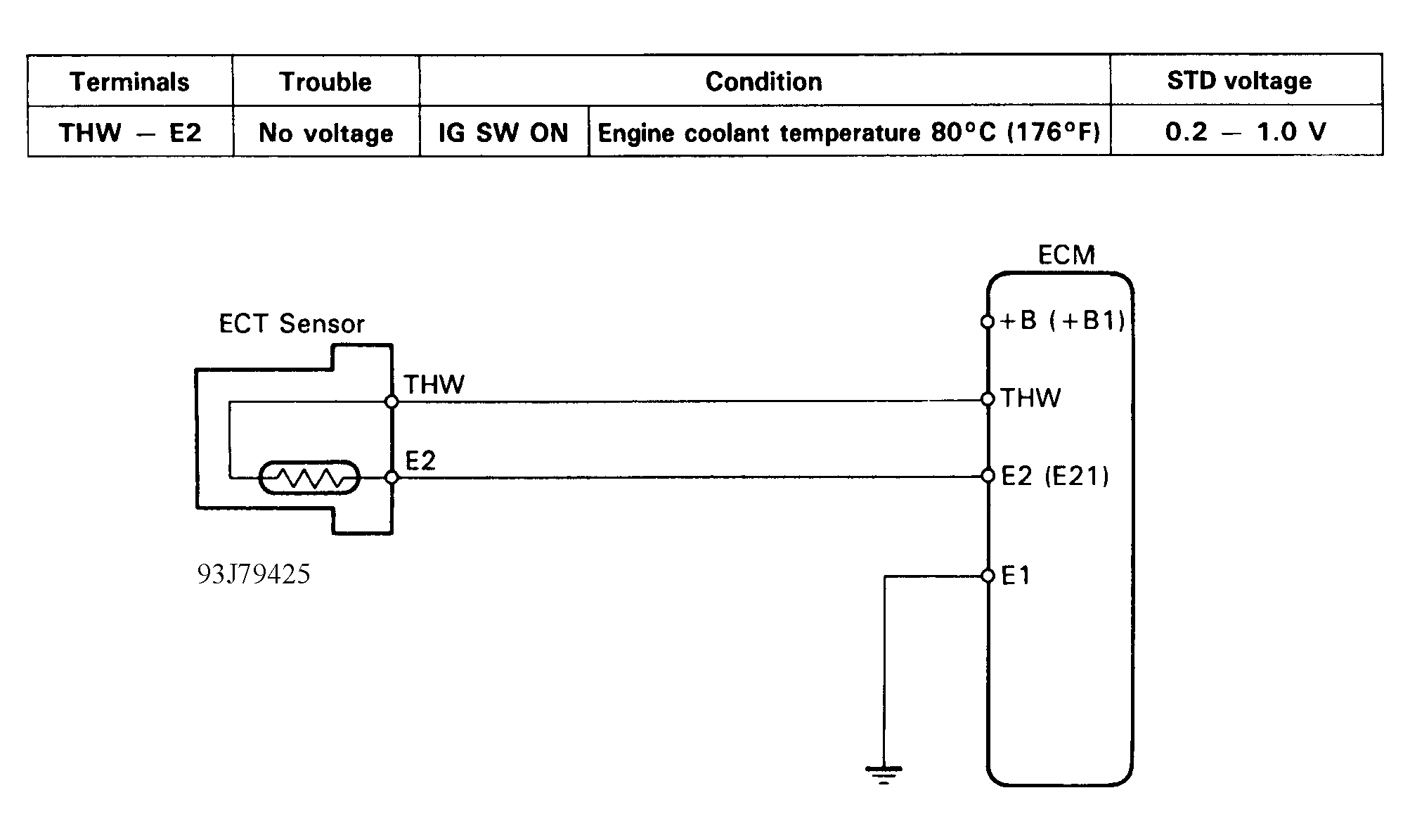

Fig 1: DTC 22 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTC 22 - Diagnostic Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
