DTC 43 - Starter Signal

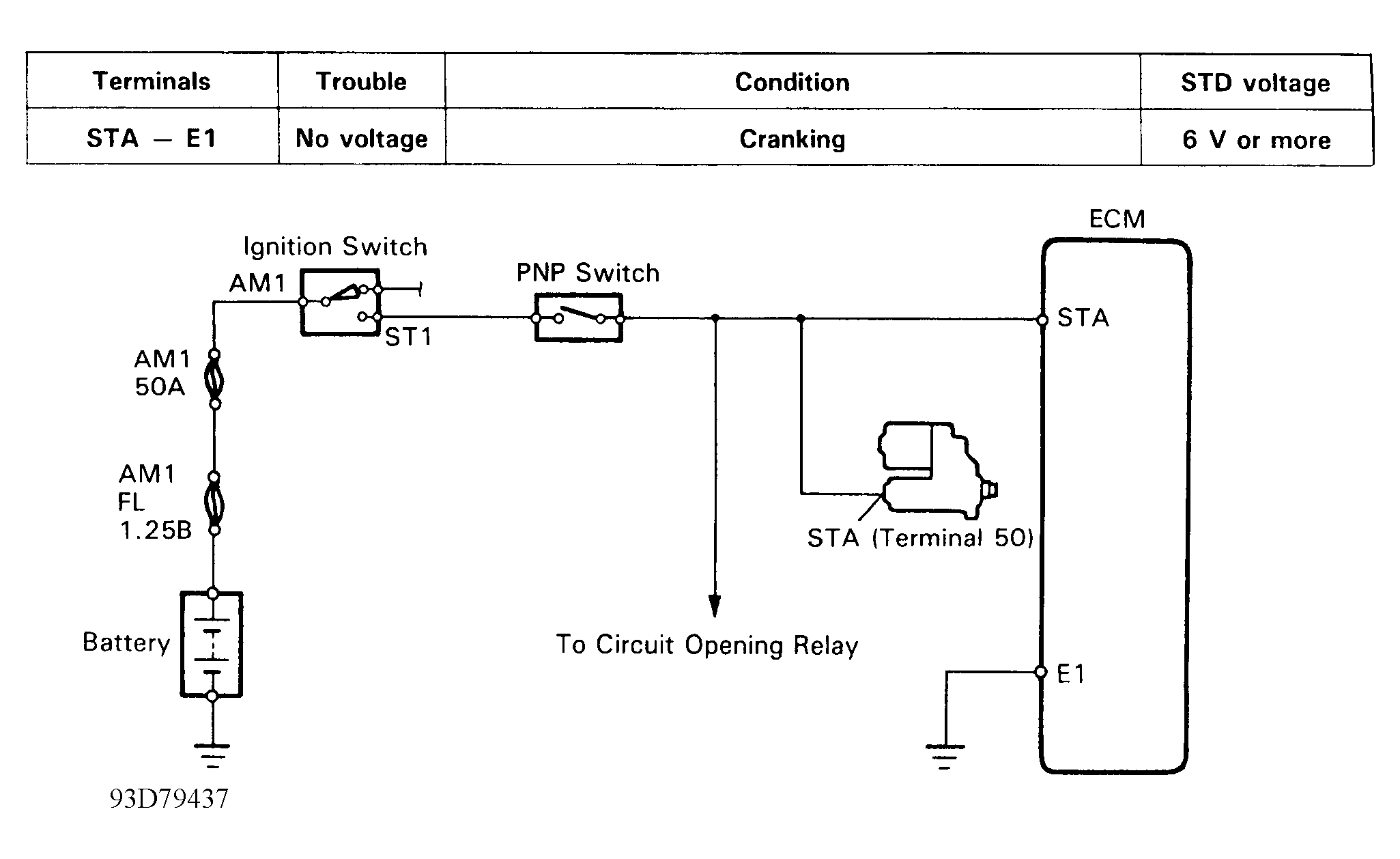

Fig 1: DTC 43 - Schematic
G93D79437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

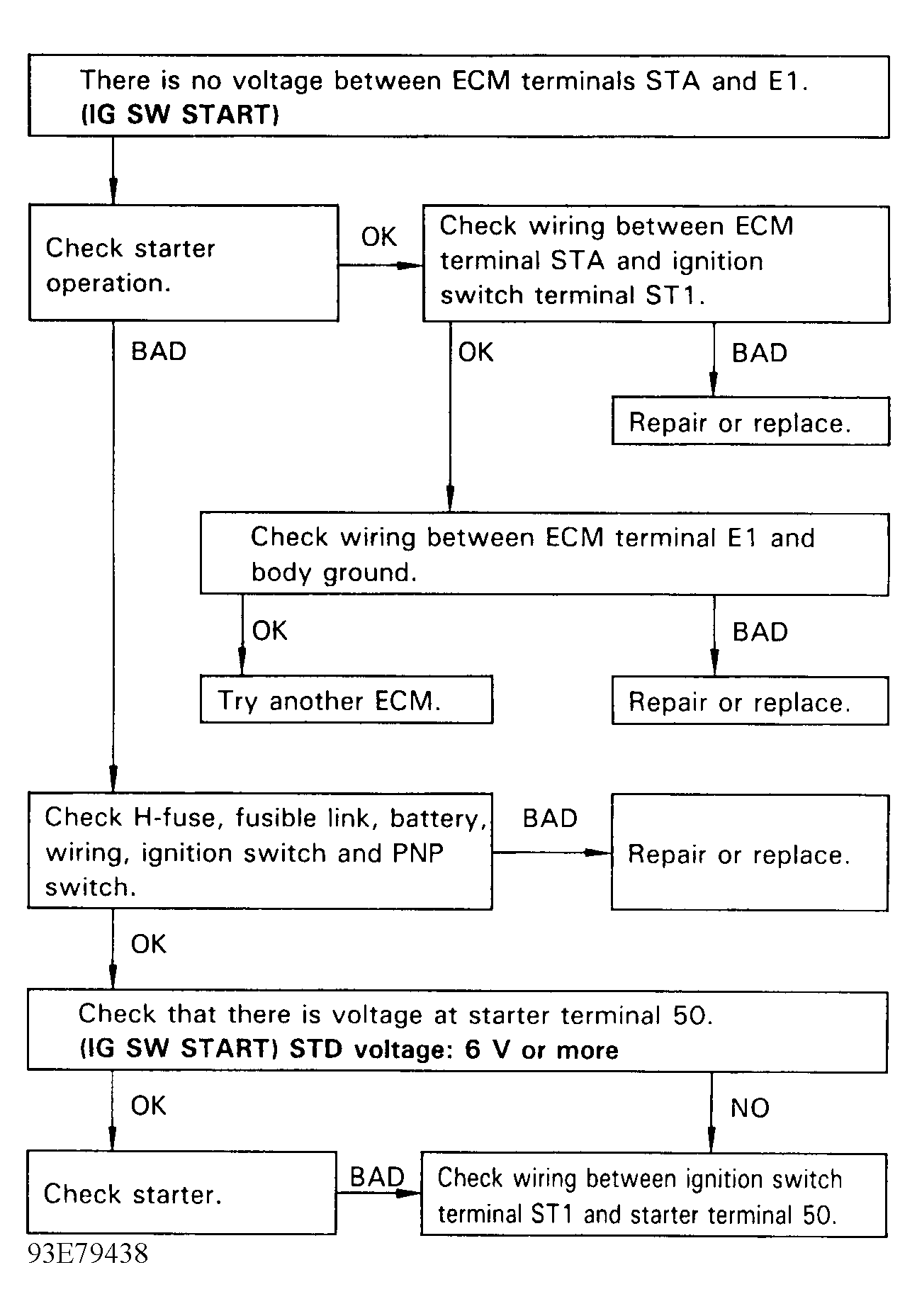

Fig 2: DTC 43 - Diagnostic Flowchart
G93E79438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
