ECM (+B) Circuit Check

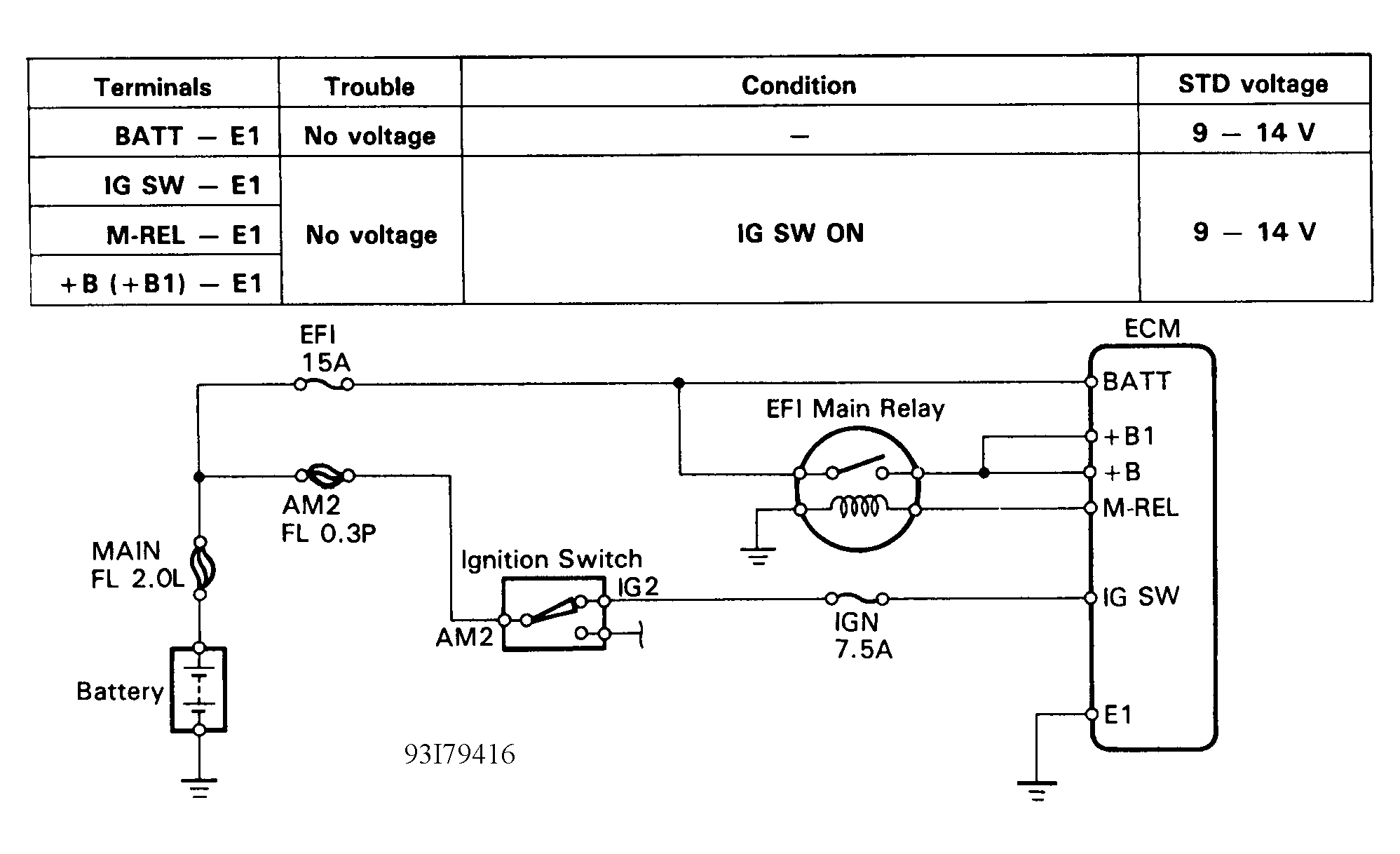

Fig 1: ECM (+B) Circuit Check - Schematic
G93I79416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

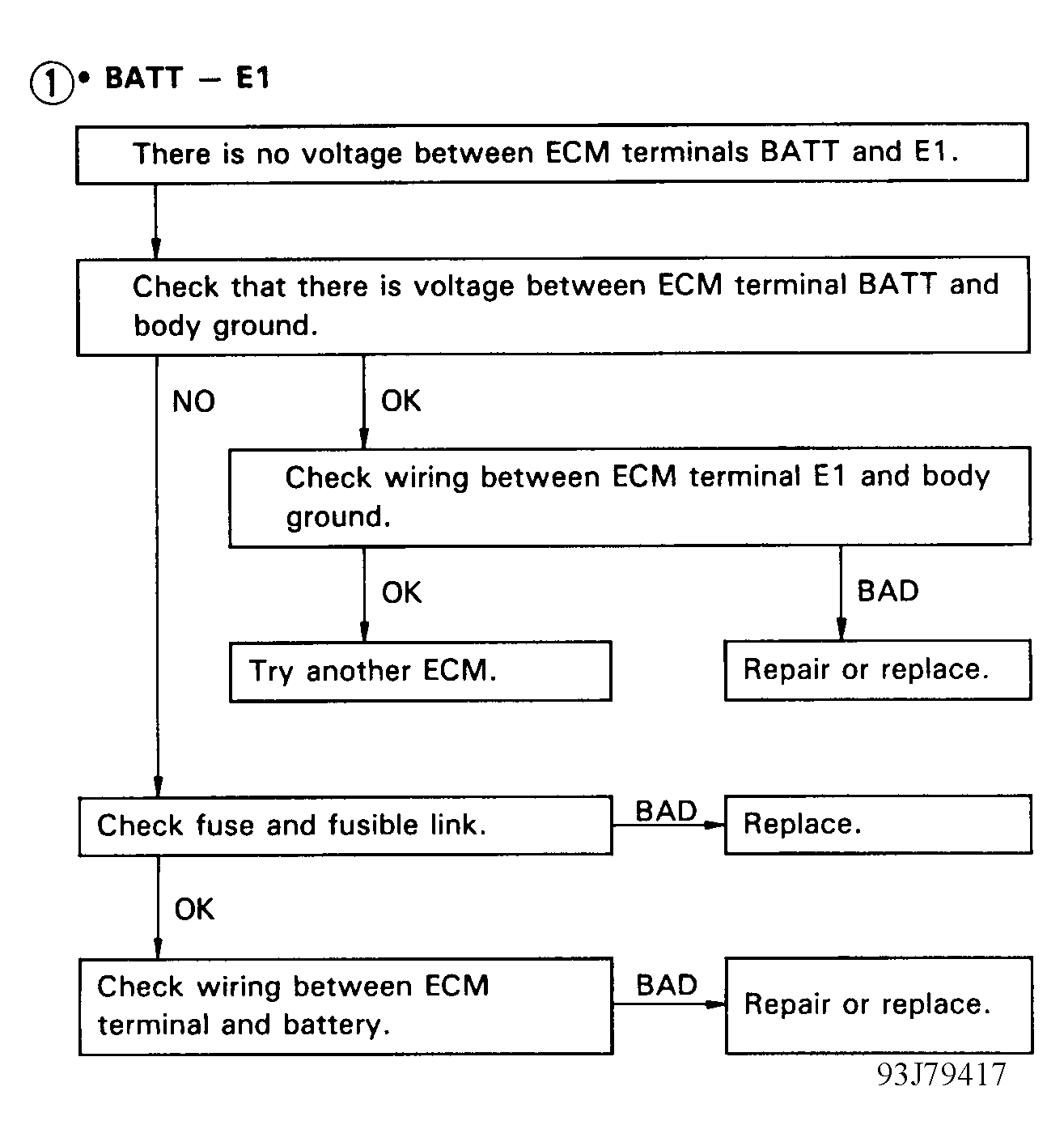

Fig 2: ECM (+B) Circuit Check - Diagnostic Flowchart (1 Of 4)
G93J79417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

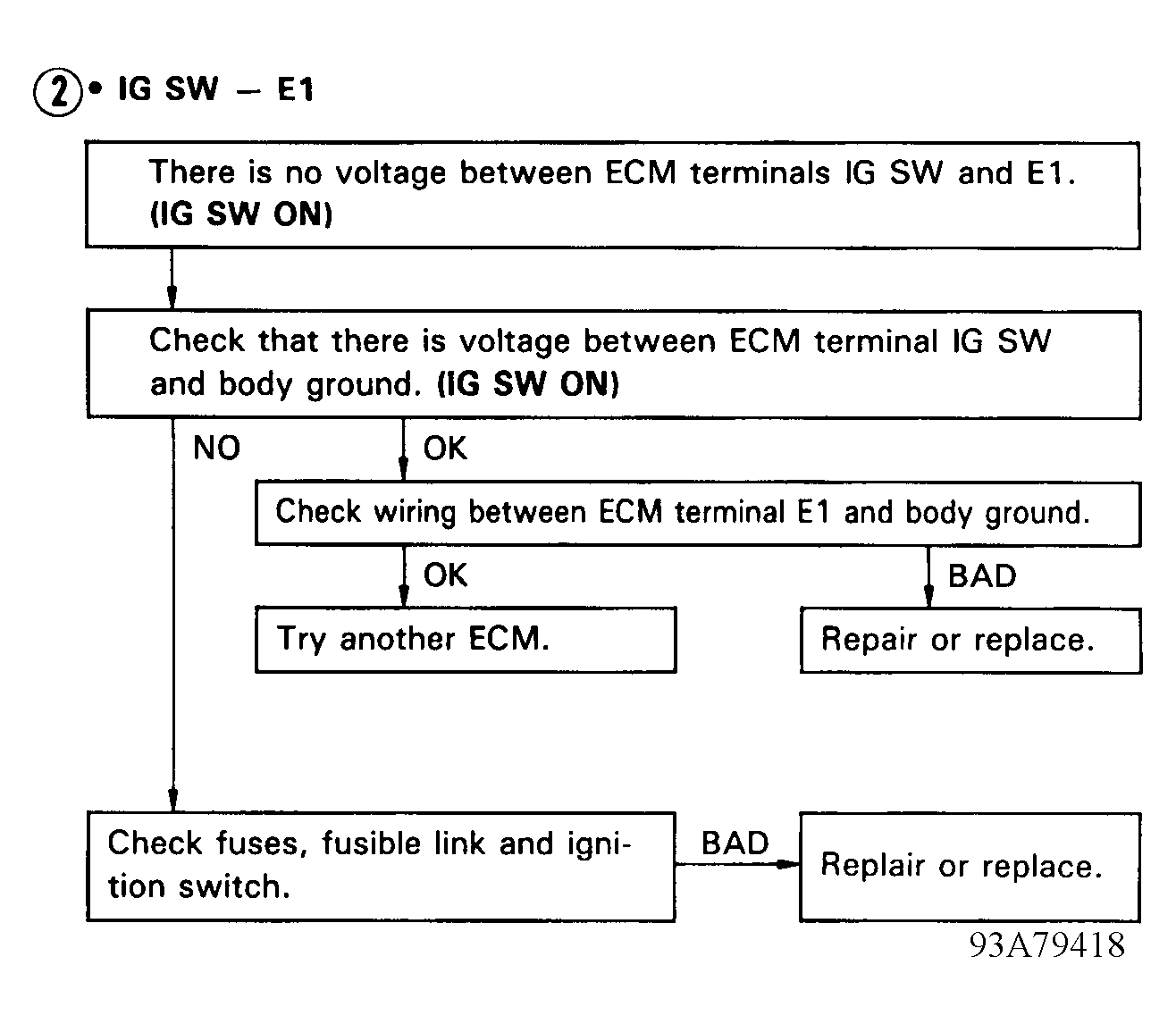

Fig 3: ECM (+B) Circuit Check - Diagnostic Flowchart (2 Of 4)
G93A79418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

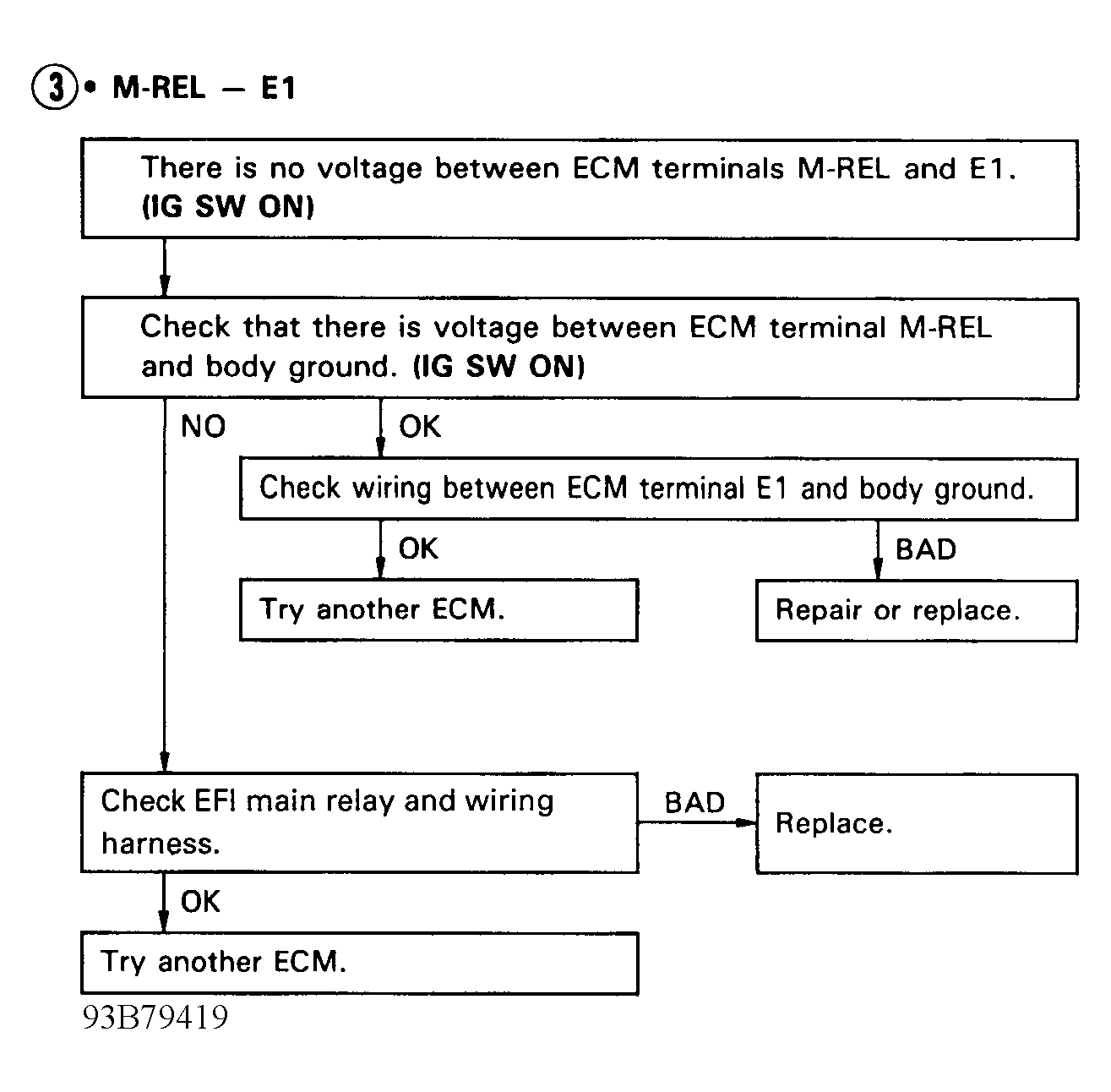

Fig 4: ECM (+B) Circuit Check - Diagnostic Flowchart (3 Of 4)
G93B79419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

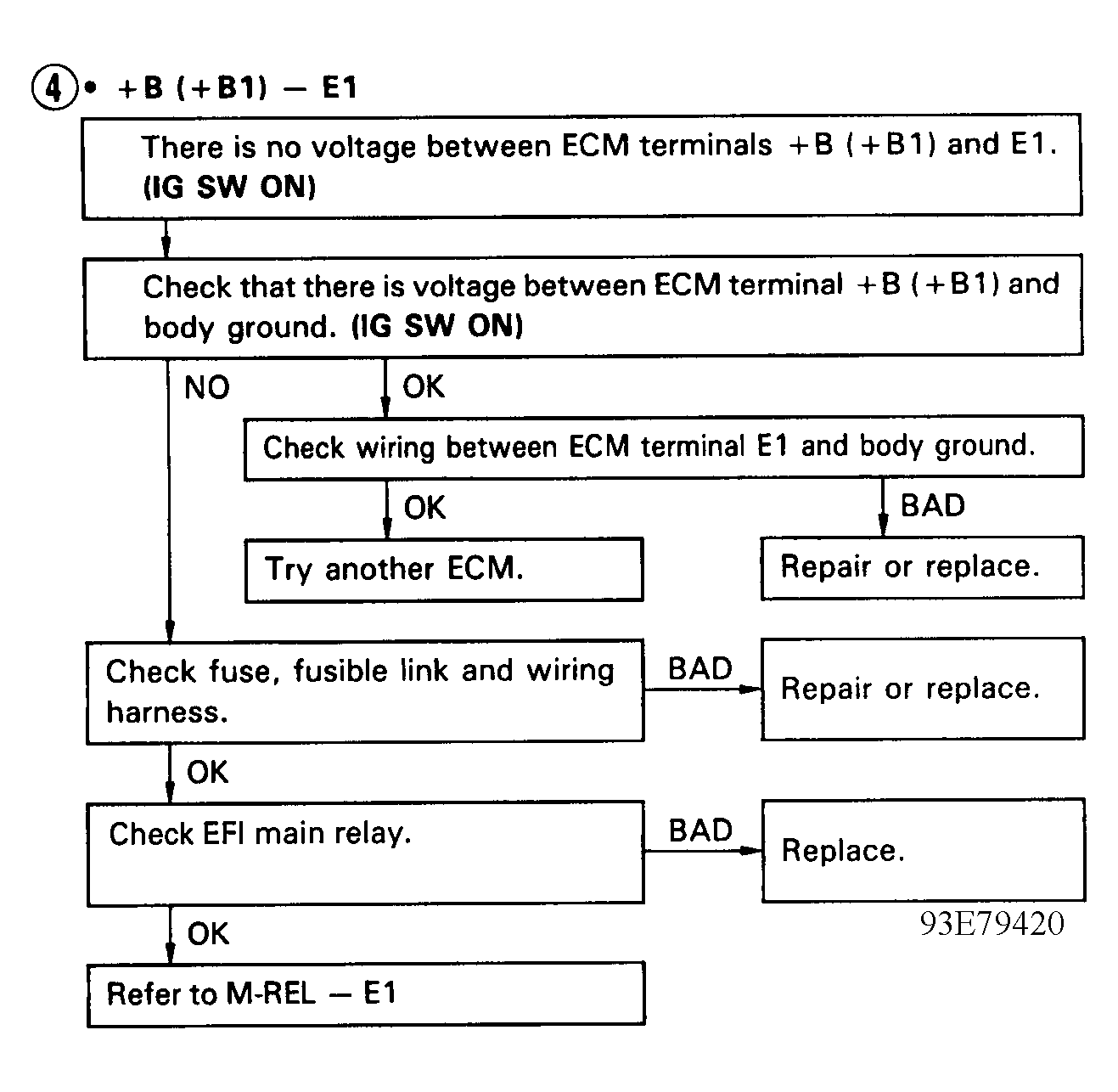

Fig 5: ECM (+B) Circuit Check - Diagnostic Flowchart (1 Of 4)
G93E79420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
