Park/Neutral Switch: Notes
NOTE:
If vehicle will not start with shift lever in Park/Neutral position, verify correct park/neutral switch adjustment. If park/neutral switch is correctly adjusted, verify switch continuity.

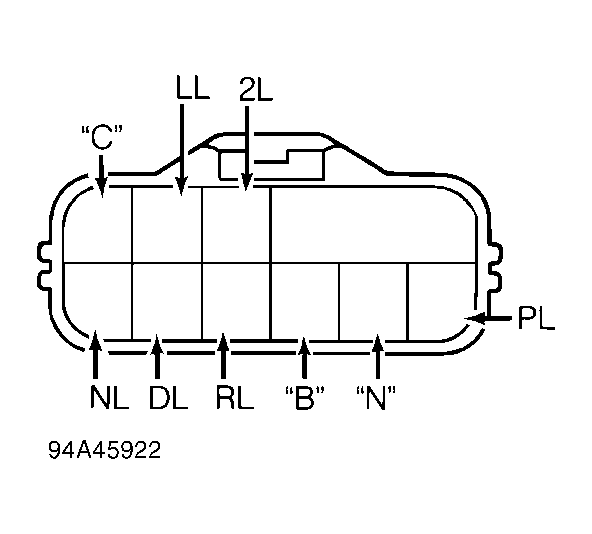

PARK/NEUTRAL SWITCH CONTINUITY SPECIFICATIONS
| Gearshift Position | Continuity Between Terminals |
|---|---|
| Park | "B" & "N", "C" & PL |
| Reverse | "C" & RL |
| Neutral | "B" & "N", "C" & NL |
| Drive | "C" & DL |
| 2 | "C" & 2L |
| Low | "C" & LL |
