Control Units

CONTROL UNITS LOCATION

Component Location

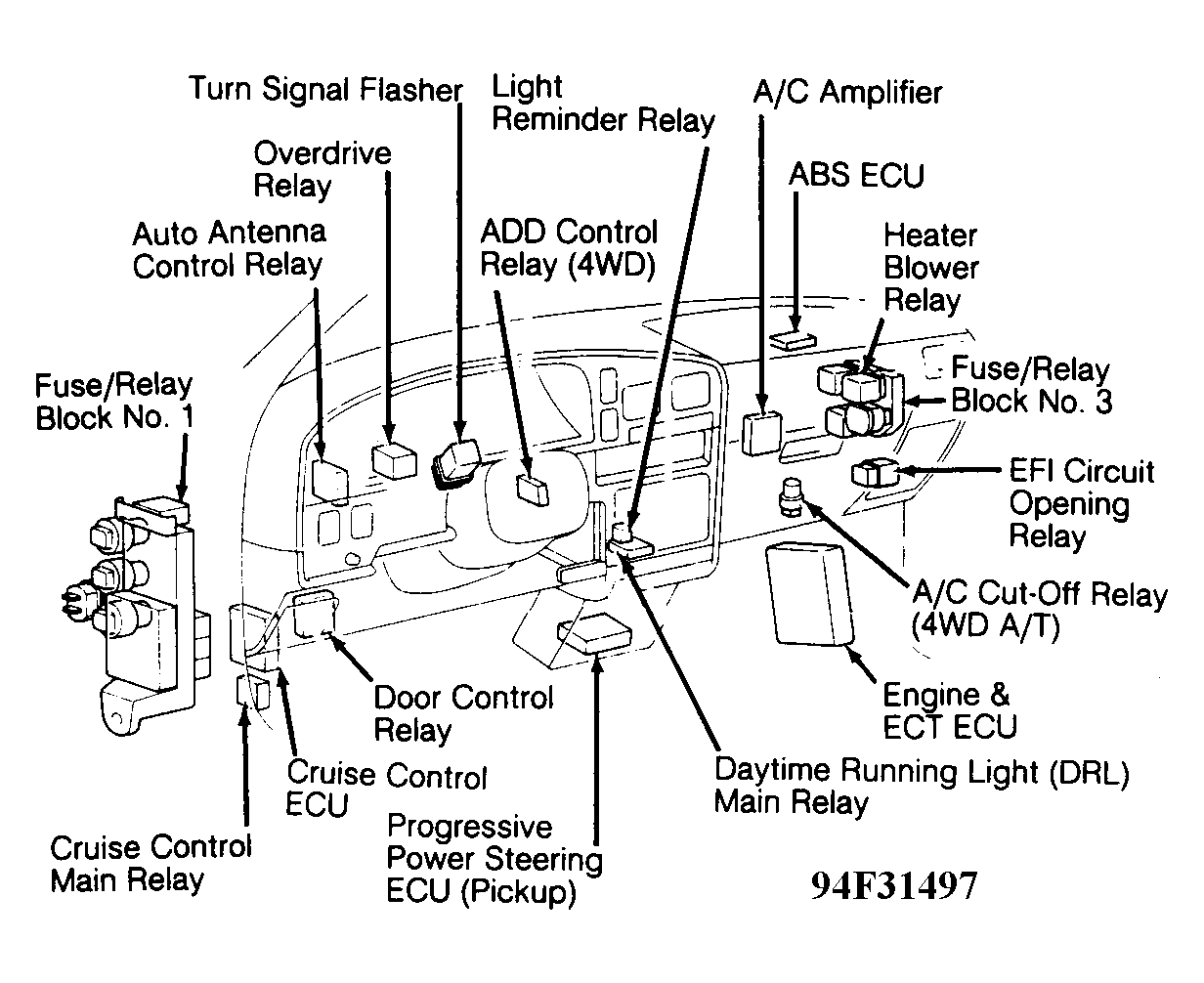

ABS ECU Behind right side of dash, above glove box. See Figure.
Cruise Control ECU Behind left kick panel, near fuse/relay block No. 1. See Figure.

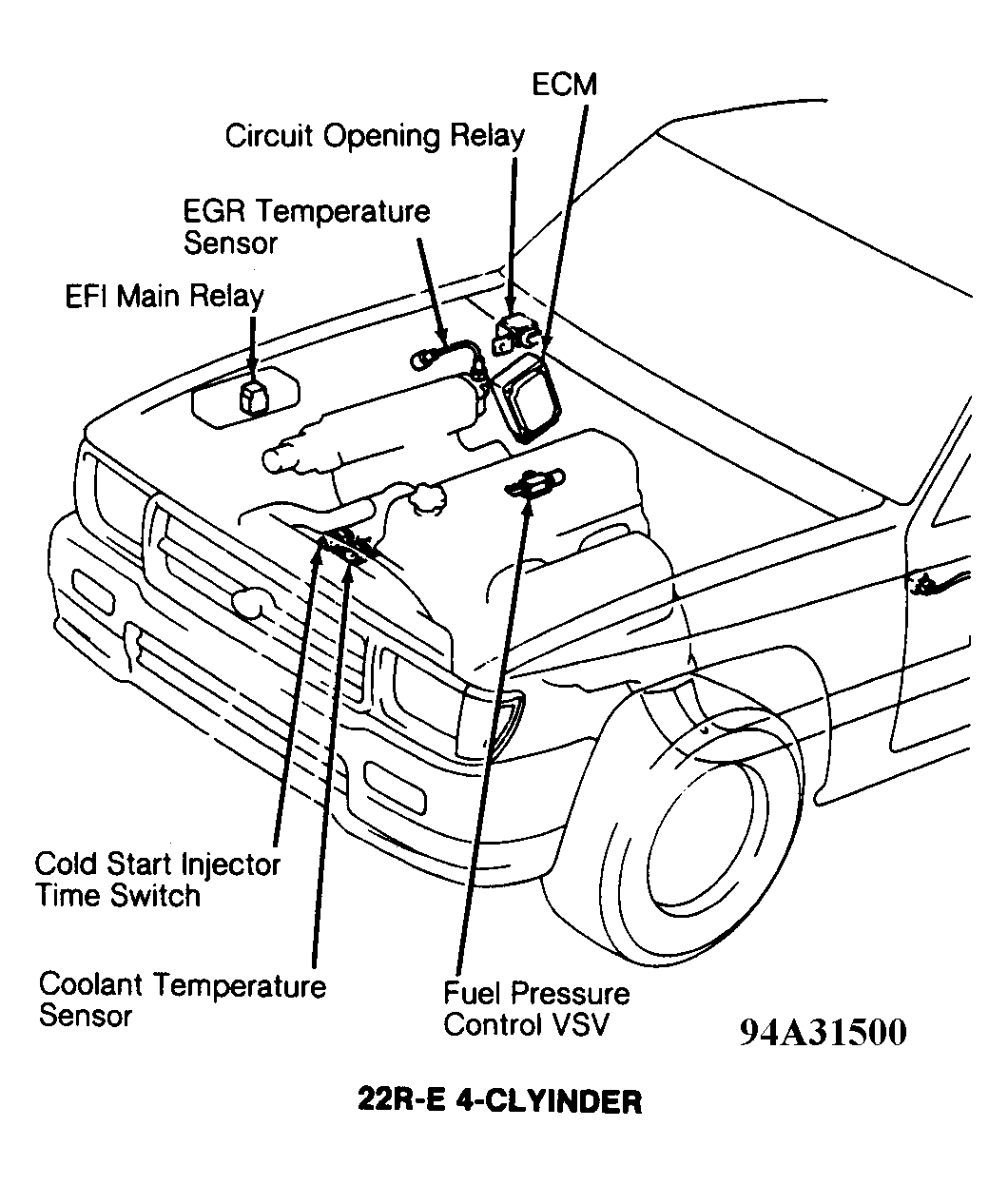

Engine Control Module (ECM) & Elect-Controlled Trans. ECU Behind right kick panel. See Figure & Figure .
Progressive Power Steering (PPS) ECU (Pickup) Mounted to floor under center of dash, under deceleration sensor. See Figure.

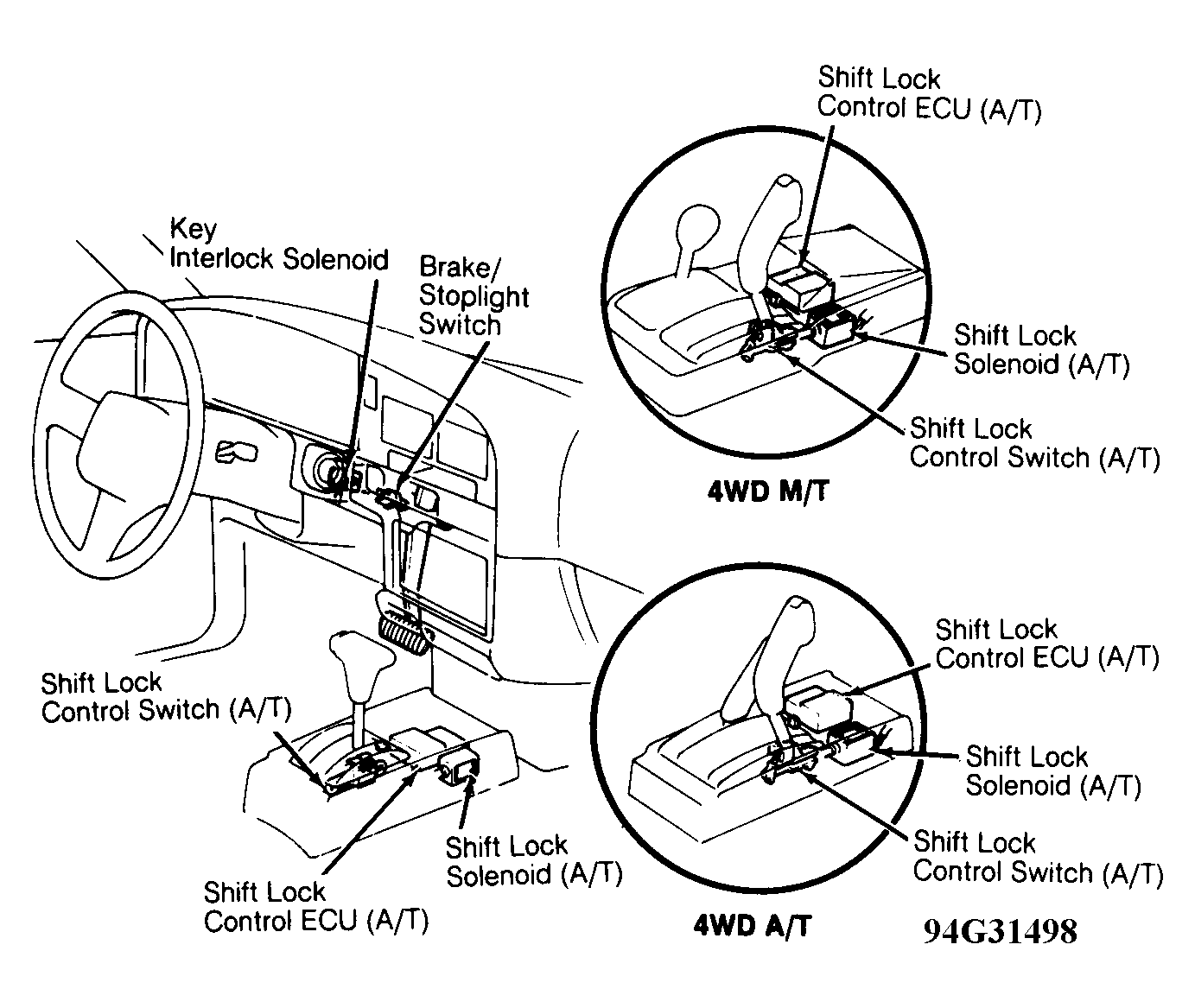

Shift Lock Control ECU (A/T) Under center console, near gear selector. See Figure.
