Pick-Up Coil Air Gap

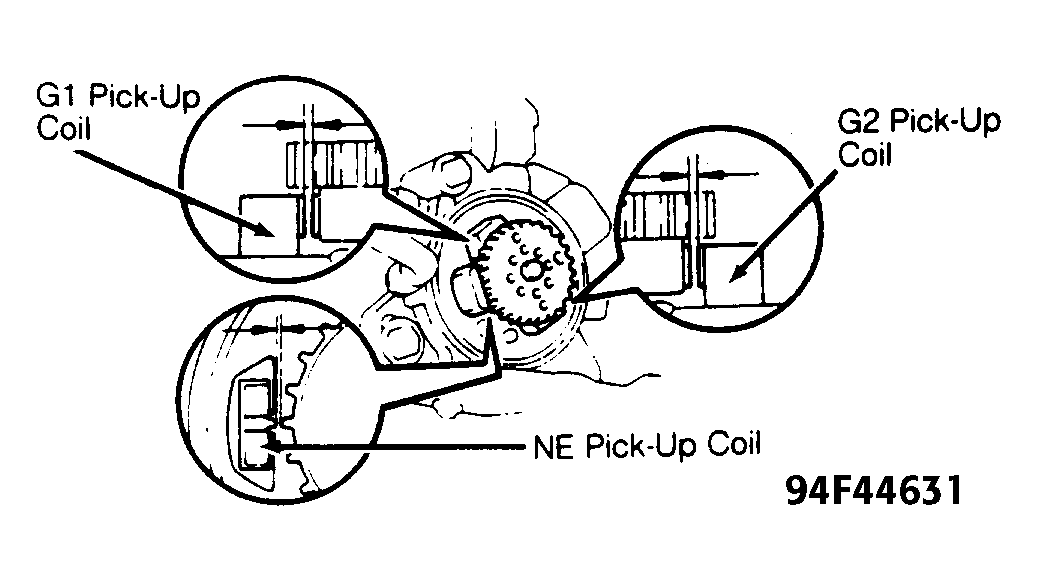

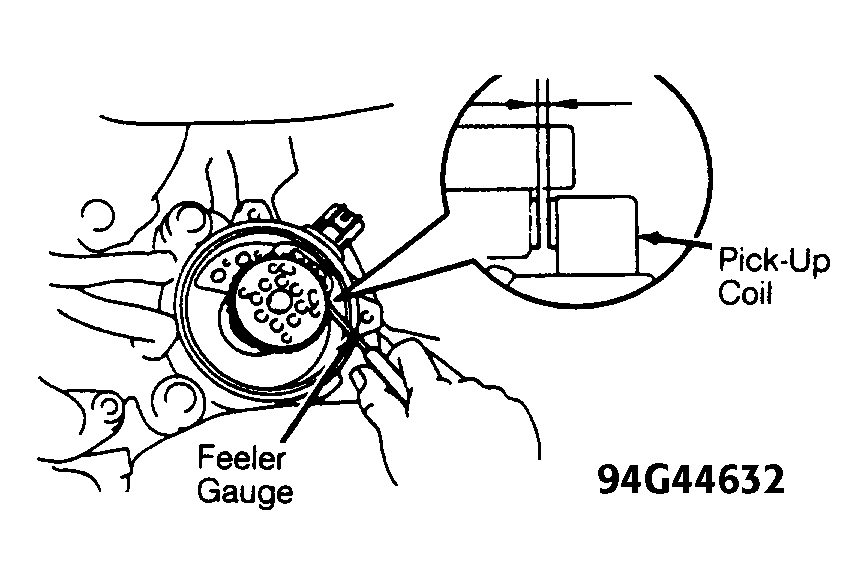

- Using non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1 and Fig 2.
- Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.
PICK-UP COIL AIR GAP SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Previa | .008-.020 (.20-.51) |
