DTC 22: Engine Coolant Temperature Sensor Signal

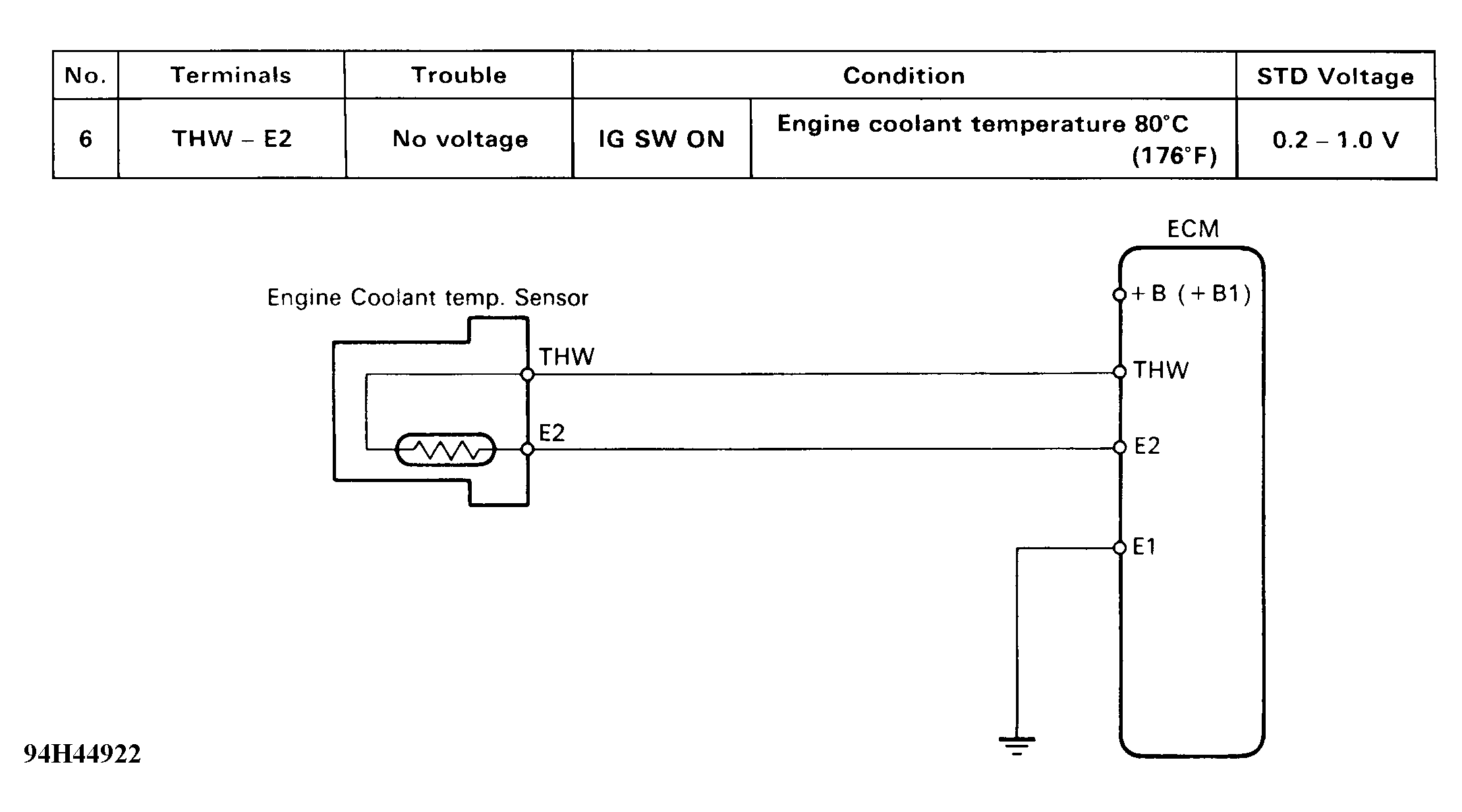

Fig 1: DTC 22 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

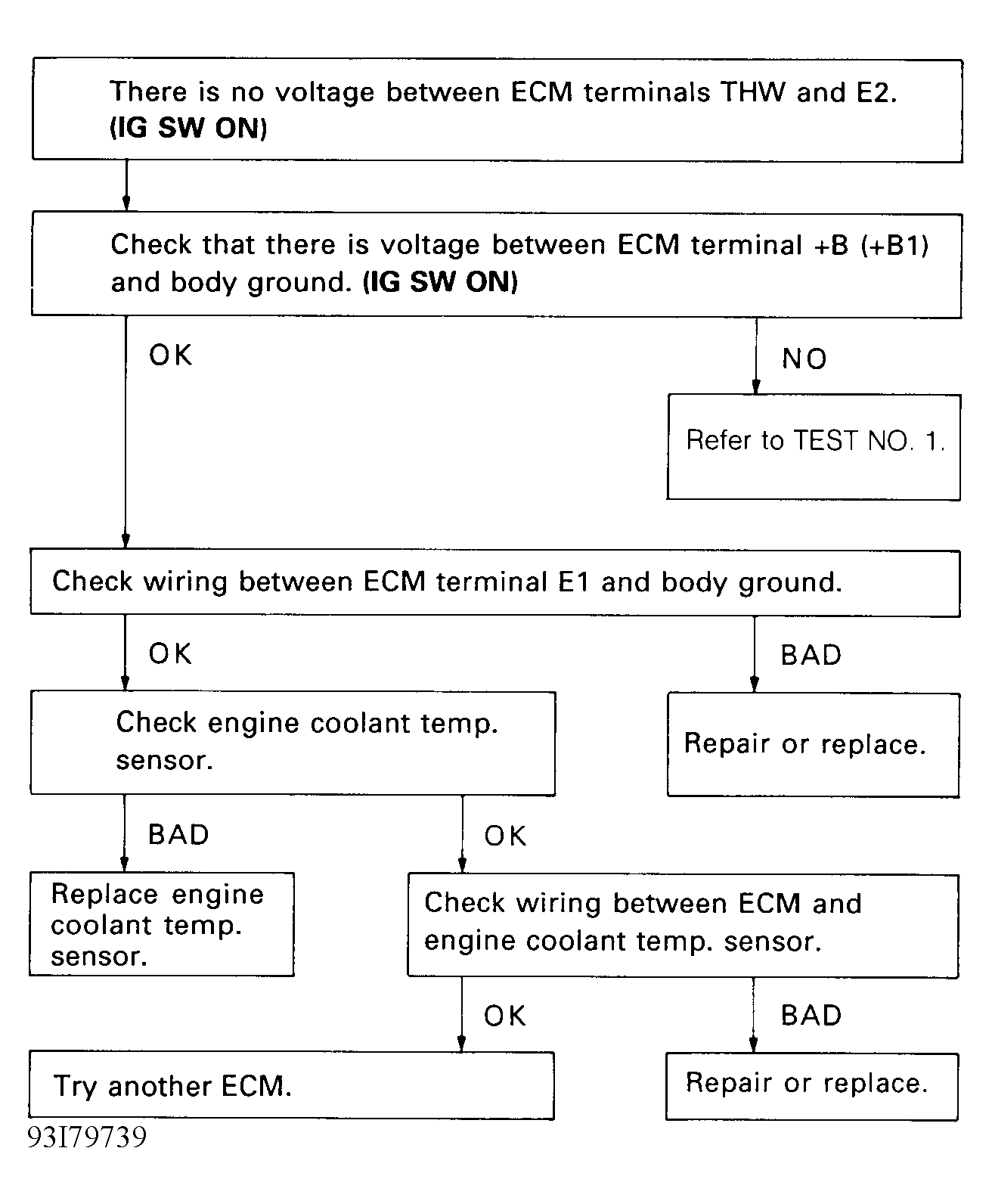

Fig 2: DTC 22 - Diagnostic Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
