DTC P0125 - Insufficient Engine Coolant Temperature For Close Loop Fuel Control

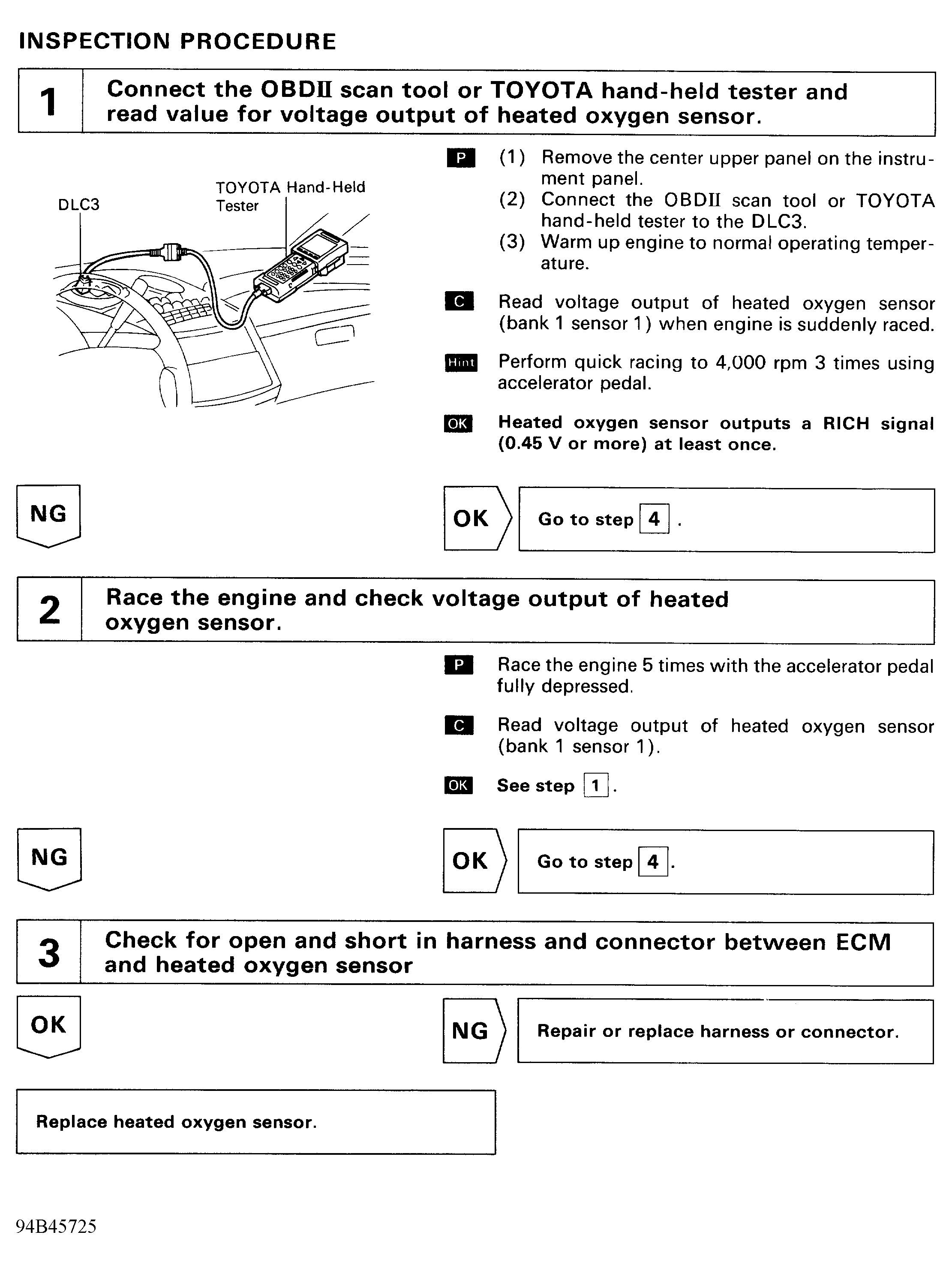

Fig 1: DTC P0125 - Diagnostic Flowchart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

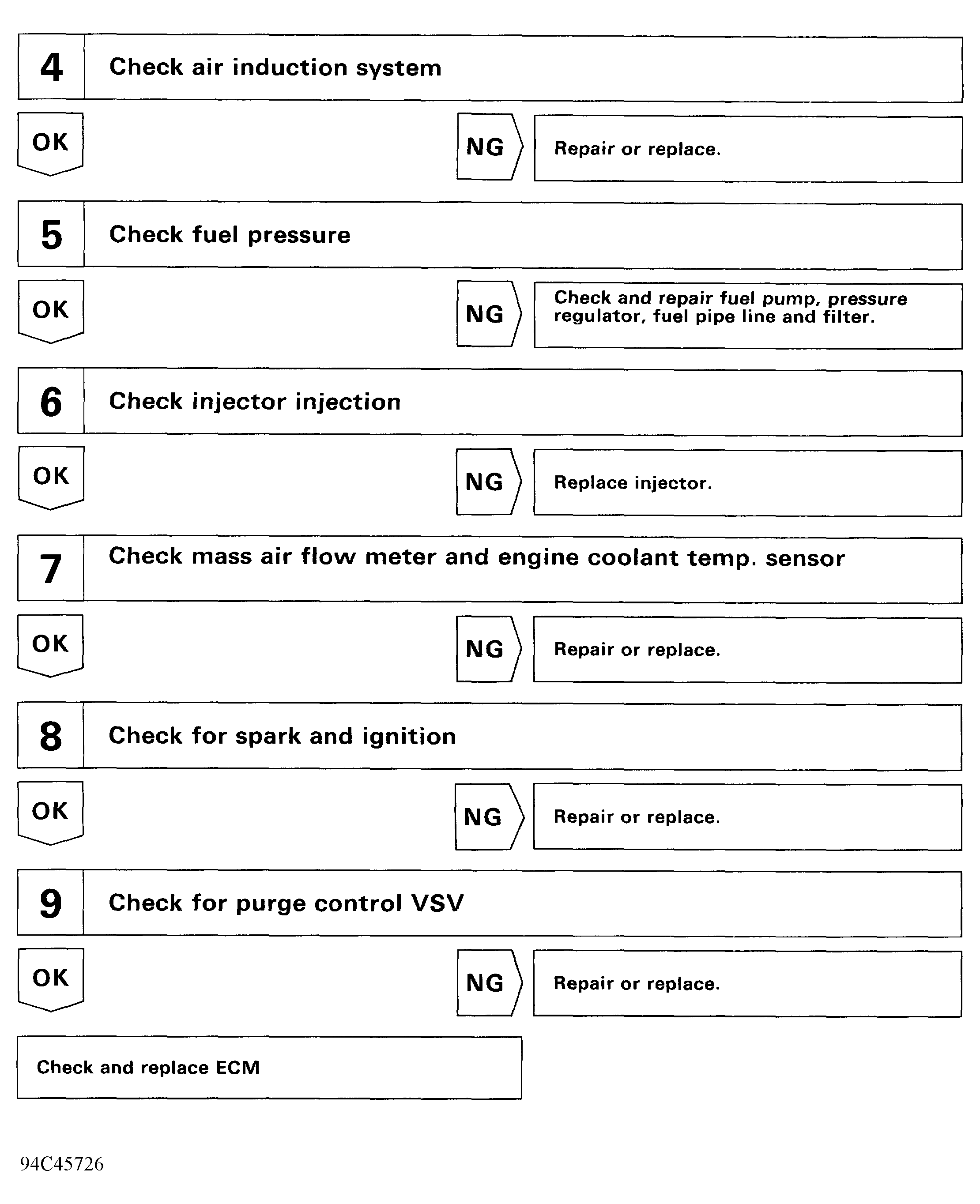

Fig 2: DTC P0125 - Diagnostic Flowchart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
