DTC P0420 - Catalyst System Efficiency Below Threshold

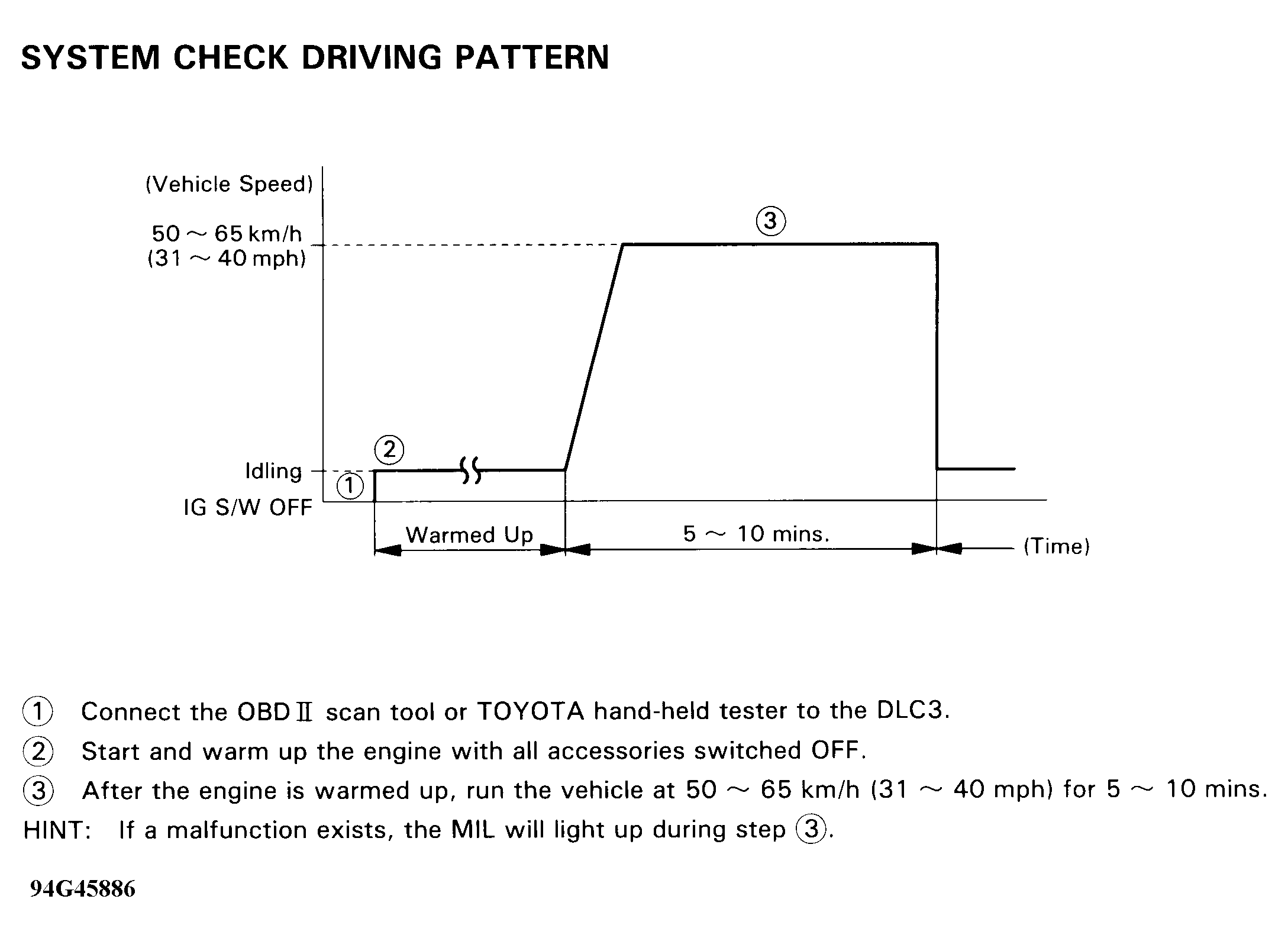

Fig 1: DTC P0420 - System Check Driving Pattern
G94G45886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

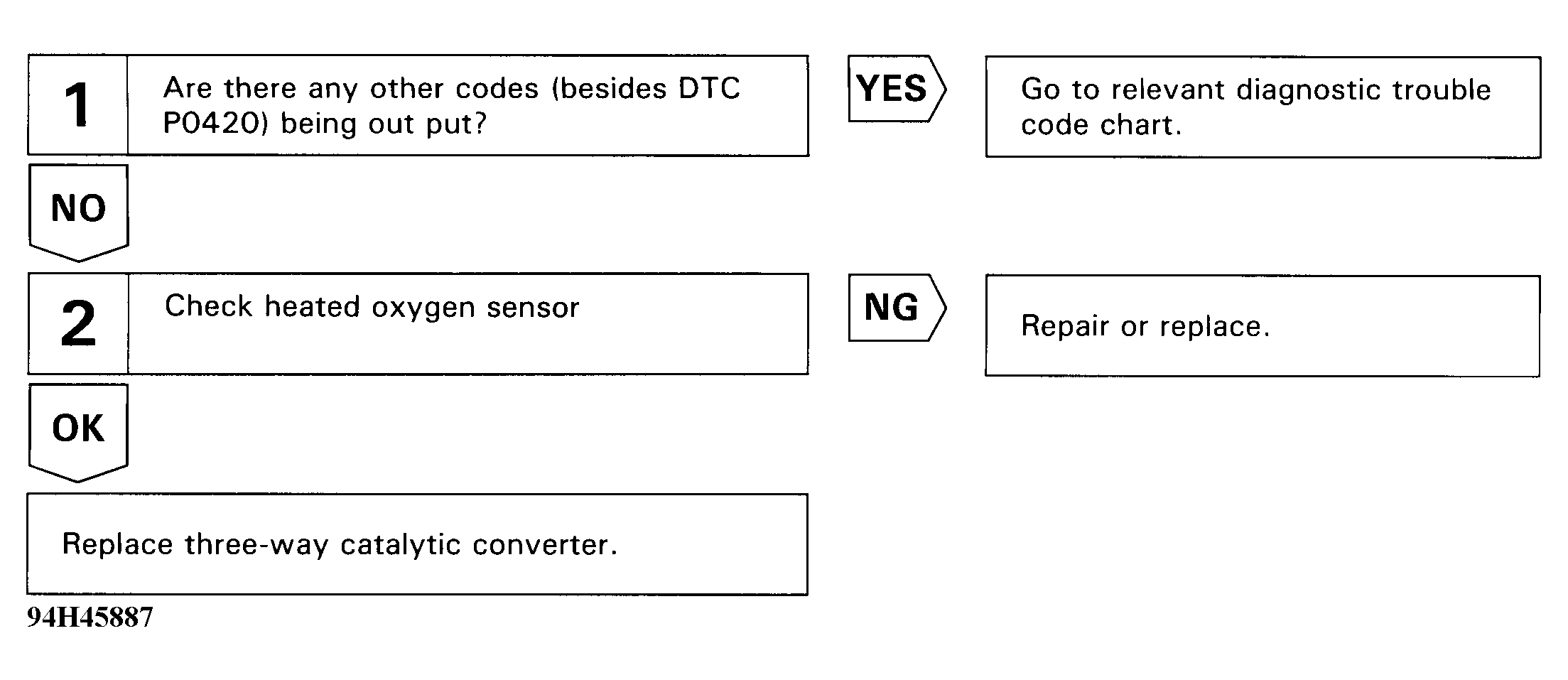

Fig 2: DTC P0420 - Diagnostic Flowchart
G94H45887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
