ECM Power Source Circuit Check

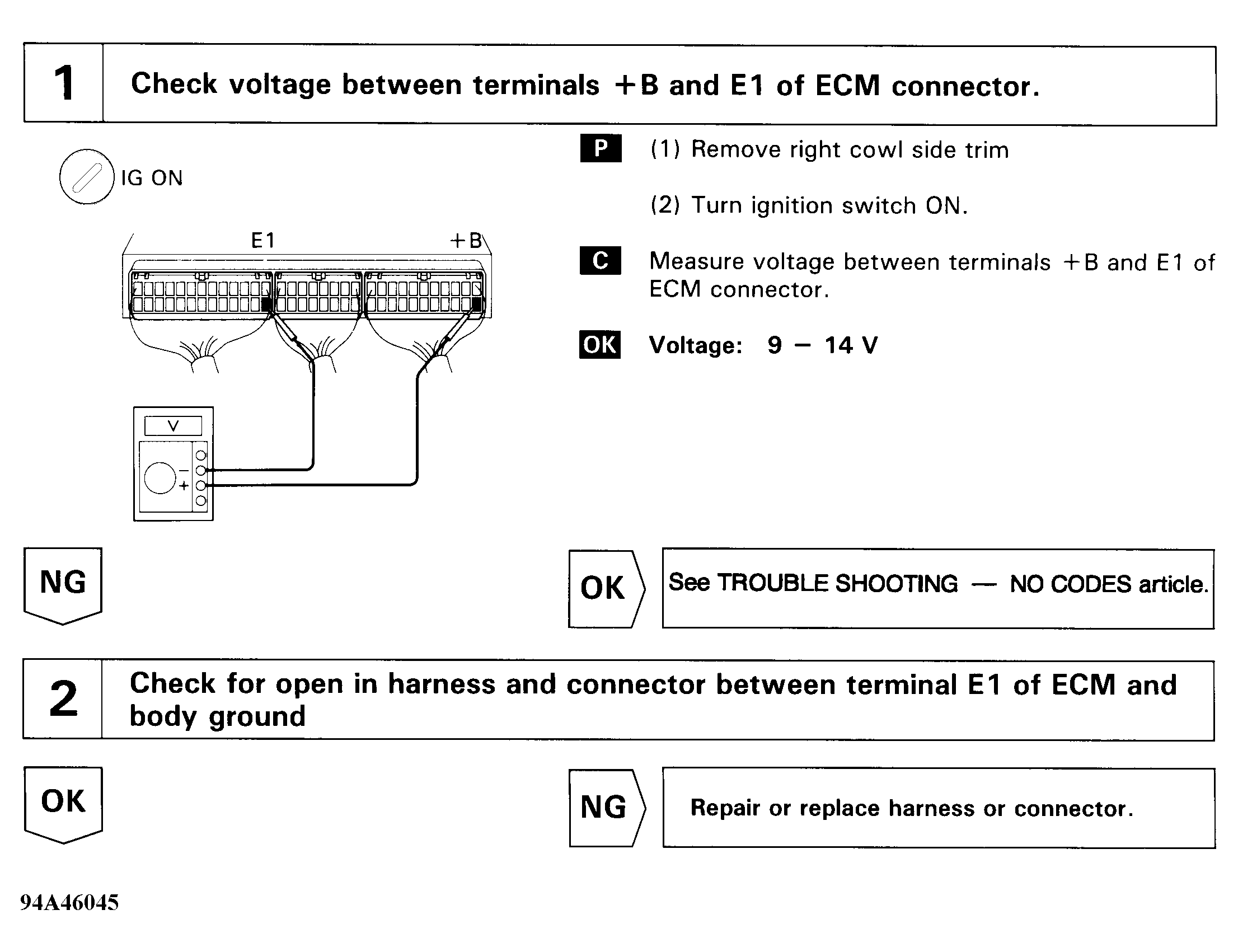

Fig 1: ECM Power Source Circuit Check (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

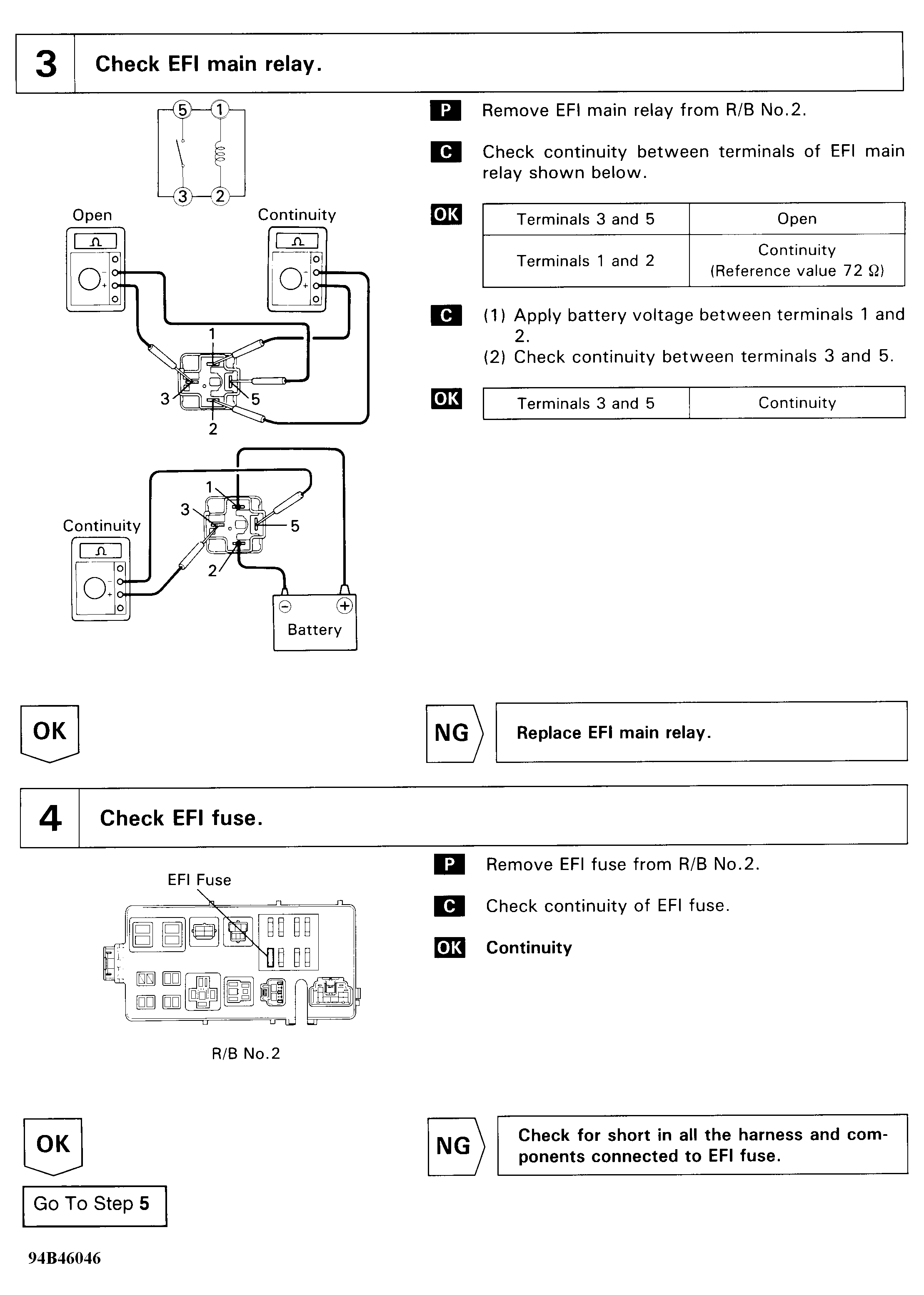

Fig 2: ECM Power Source Circuit Check (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

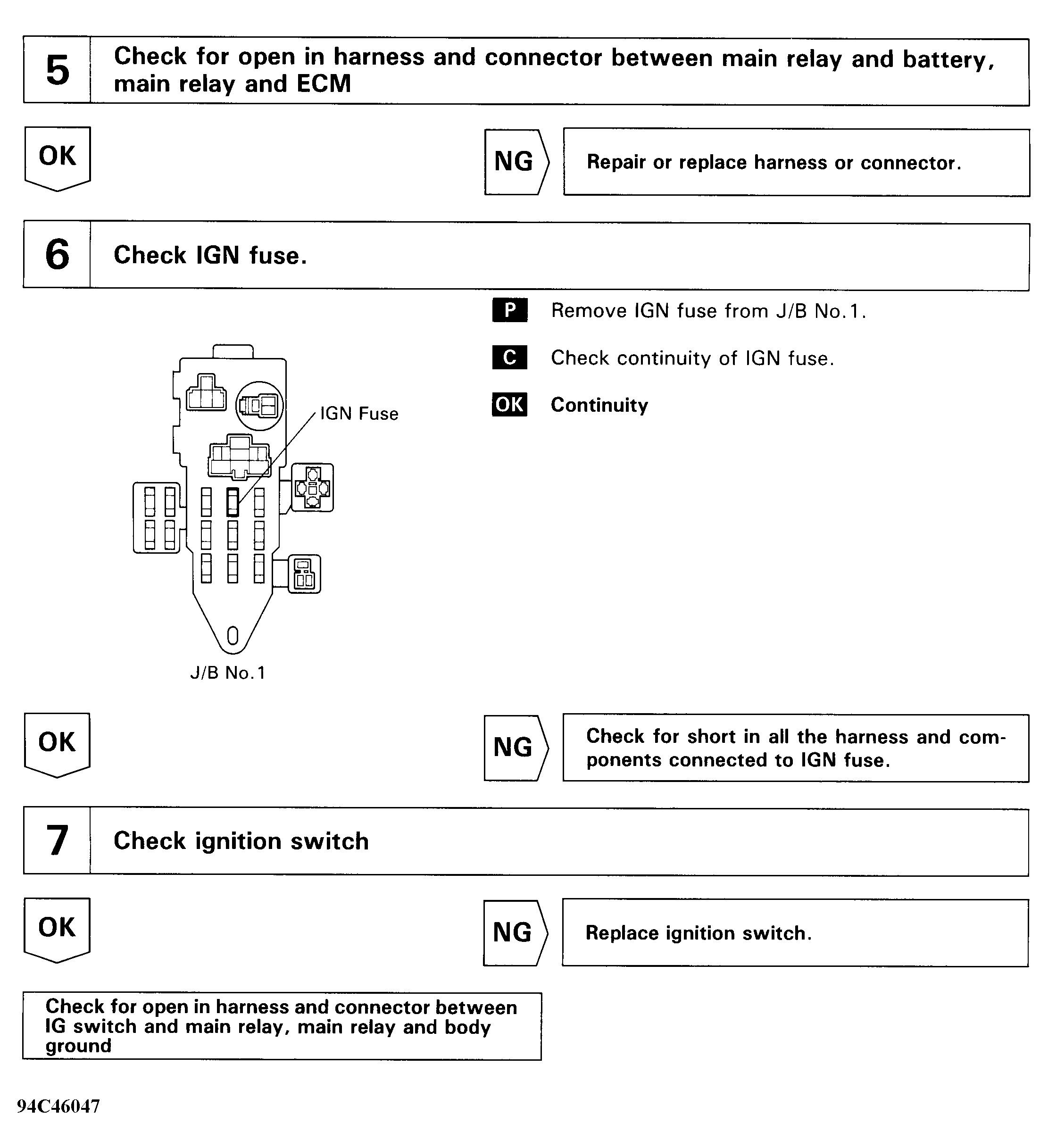

Fig 3: ECM Power Source Circuit Check (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
